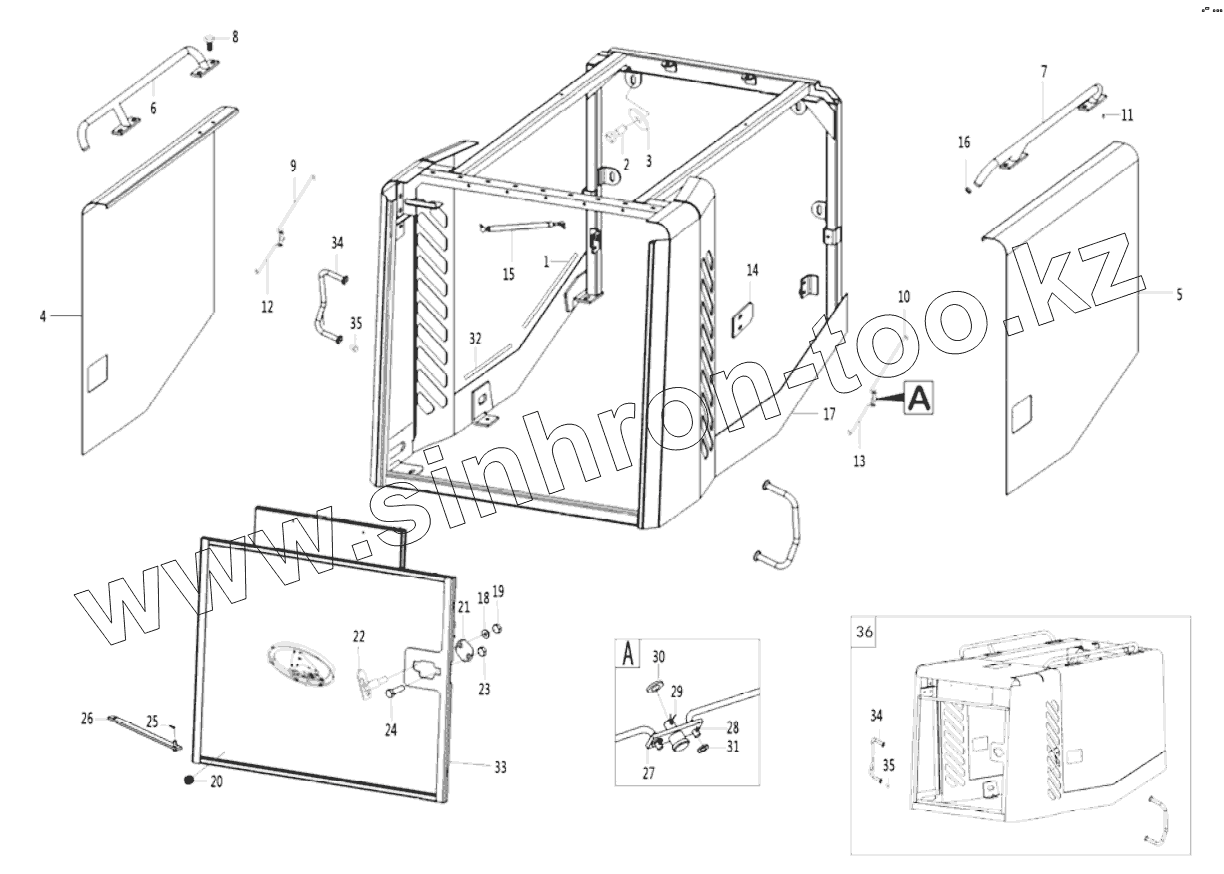

Каталог запасных частей к технике: SDLG LG936L. Engine hood assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
35
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29330039041 | Sealing strip | |
| 2 | 4011000089 | BOLT | |
| 3 | 29330023151 | Washer | |
| 4 | 29330021131 | LEFT SIDE DOOR | |
| 5 | 29330021141 | RIGHT SIDE DOOR | |
| 6 | 29330011191 | LEFT UPPER HANDRALL | |
| 7 | 29330011241 | RIGHT UPPER HANDRALL | |
| 8 | 4011000320 | BOLT | |
| 9 | 29330021151 | LONG LINK | |
| 10 | 29330021161 | LONG LINK | |
| 11 | 4030000535 | OIL CUP | |
| 12 | 29330000181 | SHORT LINK | |
| 13 | 29330000171 | SHORT LINK | |
| 14 | 29330000092 | FRONT LOCK PLATE | |
| 15 | 29330011391 | AIR SPRING | |
| 16 | 29330011232 | RUBBER COVER | |
| 17 | 29330027141 | Bonnet | |
| 18 | 4015000168 | WASHER | |
| 19 | 4013000011 | NUT | |
| 20 | 29330022651 | EMPTY | |
| 21 | 29330031001 | Plate | |
| 22 | 29330030981 | Catch | |
| 23 | 4013000212 | Nut | |
| 24 | 4014000302 | Screw | |
| 25 | 4016000035 | SPLIT PIN | |
| 26 | 29340009091 | LINK ASSEM | |
| 27 | 29330000241 | TURN PLATE | |
| 28 | 4016000114 | PIN | |
| 29 | 4016000119 | PIN | |
| 30 | 4015000162 | Washer | |
| 31 | 4015000207 | WASHER | |
| 32 | 4030000749 | Sealing strip | |
| 33 | 29330027151 | Grille | |
| 34 | 29330021191 | HANDRALL | |
| 35 | 4011000560 | BOLT | |
| 36 | 7300000322 | Cover |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
