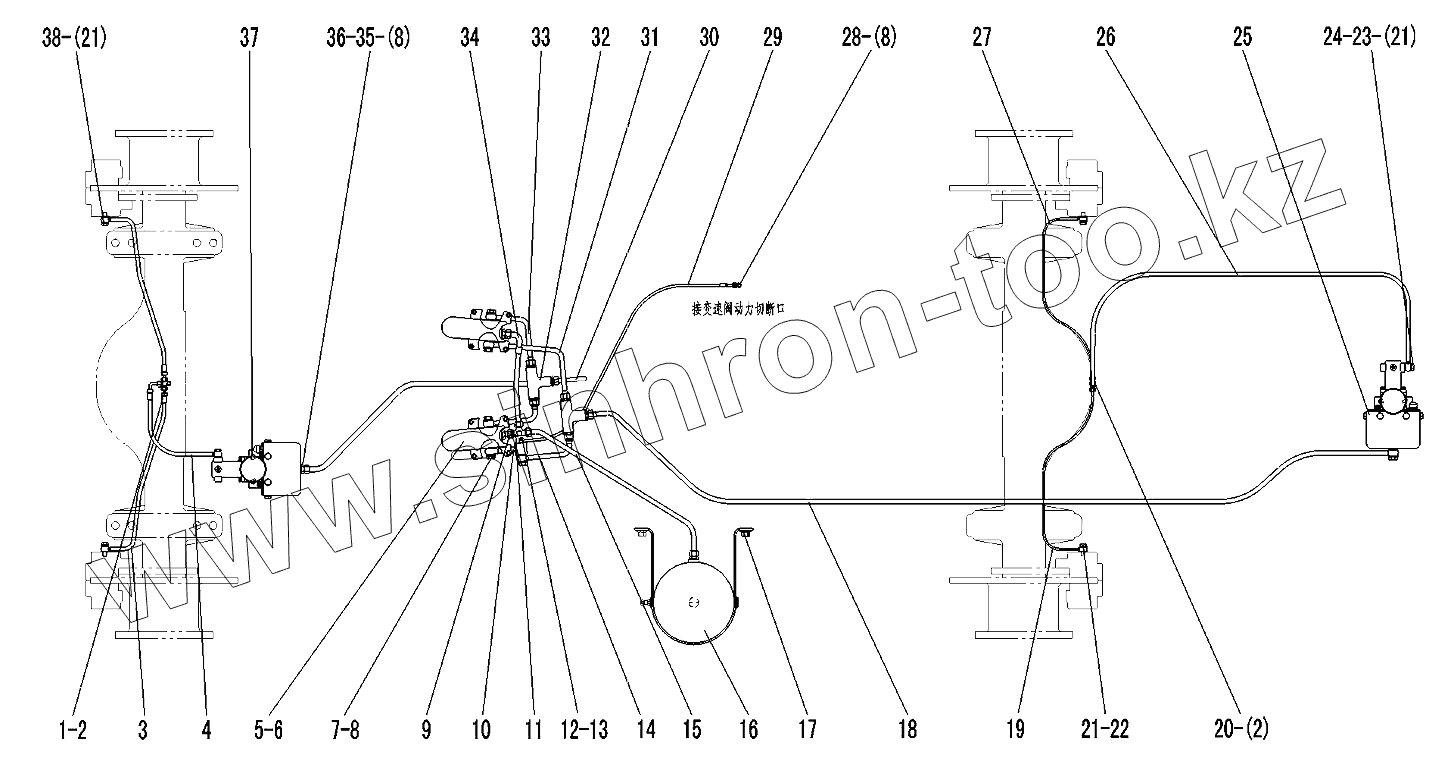

Каталог запасных частей к технике: SDLG LG936L. SERVICE BRAKE ASSEMBLY
1
2
2
3
4
5
6
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29220004051 | TEE OF THE OIL LINE | |
| 2 | 4011000455 | BOLT | |
| 3 | 29220004061 | TUBE OF FRONT AXLE | |
| 4 | 4041000821 | PIPE | |
| 5 | 4120001795 | BRAKE CONTROL VALVE LY60F | |
| 6 | 4130000521 | SWITCH OF BRAKE LIGHT | |
| 7 | 29010000041 | BOLT | |
| 8 | 29010000061 | WASHER | |
| 9 | 29220007691 | JOINT | |
| 10 | 29220007921 | TUBE | |
| 11 | 29220007701 | TEE OF THE OIL LINE | |
| 12 | 29220009111 | BOLT | |
| 13 | 29220009121 | WASHER | |
| 14 | 29220007711 | TUBE | |
| 15 | 29220004031 | PIPE FROM AIR RESERVOIR TO BRAKE VALVE | |
| 16 | 29220000531 | AIR RESERVOIR | |
| 17 | 4011000560 | BOLT | |
| 18 | 4041001122 | TUBE | |
| 19 | 29220004071 | TUBE OF BEAR AXLE | |
| 20 | 29220000131 | CONNECTOR | |
| 21 | 29220000021 | WASHER | |
| 22 | 29220000031 | CONNECTER | |
| 23 | 29220000161 | CONNECTER | |
| 24 | 29220000171 | WASHER | |
| 25 | 4120000090 | BOOSTER | |
| 26 | 4041000552 | TUBE | |
| 27 | 29220004081 | TUBE OF REAR AXLE | |
| 28 | 29220008451 | JOINT | |
| 29 | 4041001043 | PIPE | |
| 30 | 29220007721 | TUBE TO FRONT BOOSTER | |
| 31 | 4041000998 | PIPE | |
| 32 | 4120000248 | SHUTTLE VALVE | |
| 33 | 4041001124 | PIPE | |
| 34 | 29220007731 | TUBE | |
| 35 | 29010000051 | WASHER | |
| 36 | 29010000071 | CONNECTOR | |
| 37 | 4011000447 | BOLT | |
| 38 | 29220004091 | CONNECTOR |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
