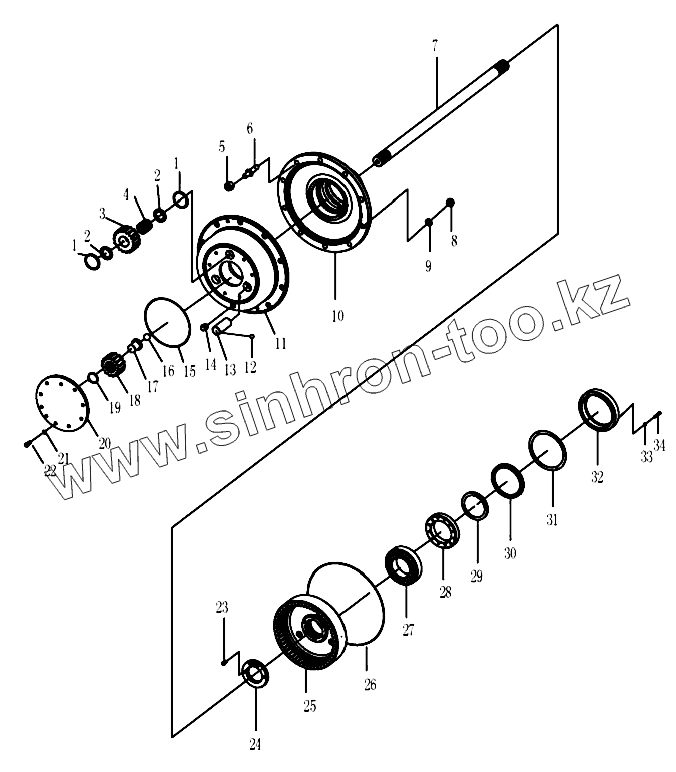

Каталог запасных частей к технике: SDLG LG936L. FINAL DRIVE ASSEMBLY
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 3050900052 | SPACER | |
| 2 | 3050900042 | RING SNAP | |
| 3 | 3050900041 | PLANET GEAR | |
| 4 | 4090000003 | ROLLER PIN | |
| 5 | 3050900003 | RIM NUT | |
| 6 | 3050900044 | RIM BOLT | |
| 7 | 3050900050 | DIFFERENTIAL AXLE | |
| 8 | 4013000136 | NUT | |
| 9 | 4015000029 | WASHER | |
| 10 | 3050900046 | HUB WHEAL | |
| 11 | 29070007661 | PLANET WHEEL CARRIER | |
| 12 | 4090000007 | STEEL BALL | |
| 13 | 3050900043 | PLANET PINION SHAFT | |
| 14 | 4120000080 | PLUG | |
| 15 | 29070007681 | O-SEALING RING | |
| 16 | 4090000006 | STEEL BALL | |
| 17 | 29070009161 | LOCK BLOCK | |
| 18 | 3050900040 | GEAR-SUN | |
| 19 | 4015000046 | SNAP RING | |
| 20 | 29070007671 | COVER | |
| 21 | 4015000025 | Washer | |
| 22 | 4011000084 | BOLT | |
| 23 | 4014000118 | SCREW | |
| 24 | 3050900047 | ROUND NUT | |
| 25 | 3050900037 | INNER GEAR | |
| 26 | 3050900045 | O-RING | |
| 27 | 4021000044 | ROLLING BEARING | |
| 28 | 4021000045 | ROLLING BEARING | |
| 29 | 3050900051 | ISOLATED BUSHING | |
| 30 | 4030000046 | FRAME OIL SEAL | |
| 31 | 3050900048 | SPACER | |
| 32 | 3050900049 | COVER OF OIL SEAL | |
| 33 | 4015000036 | WASHER | |
| 34 | 4011000195 | BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
