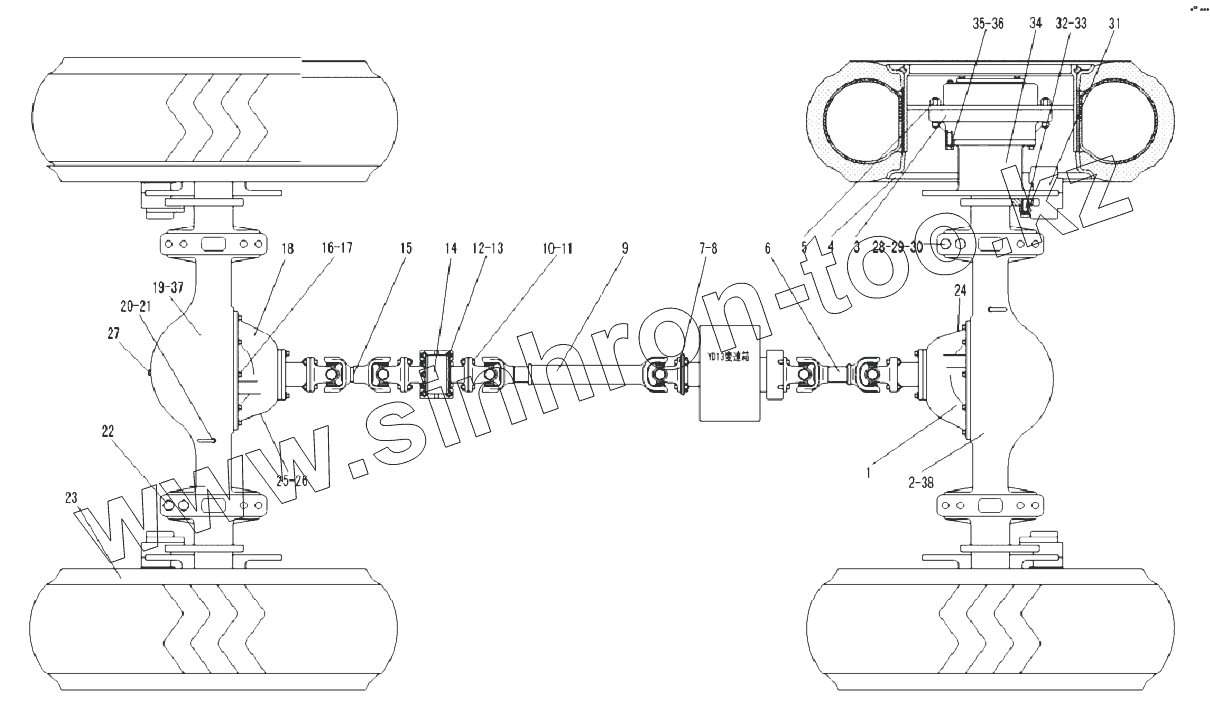

Каталог запасных частей к технике: SDLG LG936L. AXLE SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2050900033 | REAR MAIN DRIVE | |
| 2 | 2050900010 | REAR AXLE HOUSING ASSEMBLY | |
| 3 | 2050900004 | RETARDER | |
| 4 | 4190000413 | RIM | |
| 5 | 3050900003 | RIM NUT | |
| 6 | 4110000490 | DRIVE SHAFT | |
| 7 | 3050900006 | LOCKWASHER | |
| 8 | 3050900001 | BOLT | |
| 9 | 2050900053 | INTERMEDIATE PROPELLOR SHAFT | |
| 10 | 3050900002 | BOLT | |
| 11 | 4013000073 | NUT | |
| 12 | 4011000241 | BOLT | |
| 13 | 4015000177 | WASHER | |
| 14 | 2050900054 | INTERMEDIATE SUPPORT | |
| 15 | 2050900055 | FRONT DRIVE SHAFT | |
| 16 | 4015000026 | WASHER | |
| 17 | 4011000124 | BOLT | |
| 18 | 2050900006 | FRONT MAIN DRIVE | |
| 19 | 2050900003 | FRONT AXLE HOUSING ASSEMBLY | |
| 20 | 4013000078 | NUT | |
| 21 | 29070000051 | BREATHER PIPE | |
| 22 | 4011000520 | BOLT | |
| 23 | 4110000003 | TIRE | |
| 24 | 3050900004 | BRAND OF REAR AXLE | |
| 25 | 3050900005 | BRAND OF FRONT AXLE | |
| 26 | 4019000001 | RIVET | |
| 27 | 4120000080 | PLUG | |
| 28 | 4011000521 | BOLT | |
| 29 | 4013000157 | NUT | |
| 30 | 4015000031 | WASHER | |
| 31 | 4120001739 | DISK BRAKE | |
| 32 | 29070000101 | BOLT | |
| 33 | 4015000030 | WASHER | |
| 34 | 3090900004 | BRAKE DISK | |
| 35 | 4011000452 | BOLT | |
| 36 | 4015000029 | WASHER | |
| 37 | 2050900049 | FRONT AXLE ASSEMBLY | |
| 38 | 2050900051 | REAR AXLE ASSEMBLY |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
