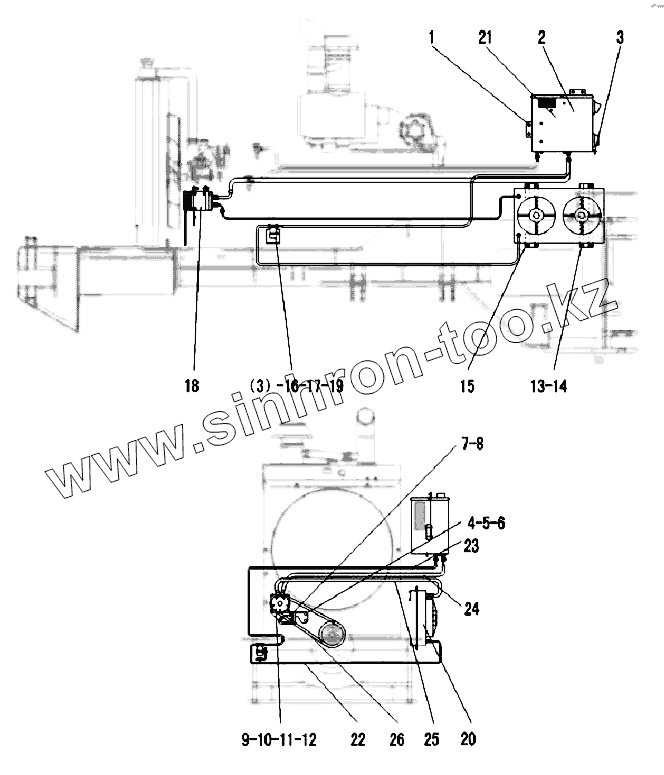

Каталог запасных частей к технике: SDLG LG936L. AIR CONDITIONER SYSTEM
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4011000461 | BOLT | |
| 2 | 4190001114 | AIR CONDITIONER | |
| 3 | 4011000154 | BOLT | |
| 4 | 4011000533 | BOLT | |
| 5 | 4015000182 | WASHER | |
| 6 | 4015000029 | WASHER | |
| 7 | 29350008112 | SUPPORT PLATE | |
| 8 | 29350008951 | COMPRESSOR SUPPORT | |
| 9 | 4011000085 | BOLT | |
| 10 | 4013000007 | NUT | |
| 11 | 4015000025 | Washer | |
| 12 | 4015000162 | Washer | |
| 13 | 29350007801 | FRONT SUPPORTING PLATE | |
| 14 | 4011000474 | BOLT | |
| 15 | 29350007791 | REAR SUPPORTING PLATE | |
| 16 | 29350007881 | DRYER BEARING | |
| 17 | 4013000028 | NUT | |
| 18 | 4130000420 | COMPRESSOR ASSEMBLY | |
| 19 | 4130000419 | RECEIVER | |
| 20 | 4130000417 | CONDENSATOR | |
| 21 | 4130000633 | EVAPORATOR ASSEMBLY | |
| 22 | 4120001514 | PIPE CONDENSER-RECEIVER | |
| 23 | 4120001515 | PIPE RECEIVER-EVAPORATOR | |
| 24 | 4120001812 | PIPE EVAPORATOR-COMPRESSOR | |
| 25 | 4120001809 | PIPE COMPRESSOR-CONDENSATOR | |
| 26 | 4110000310 | BELT | |
| 26 | 4110000379 | BELT | |
| 26 | 4110000378 | BELT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
