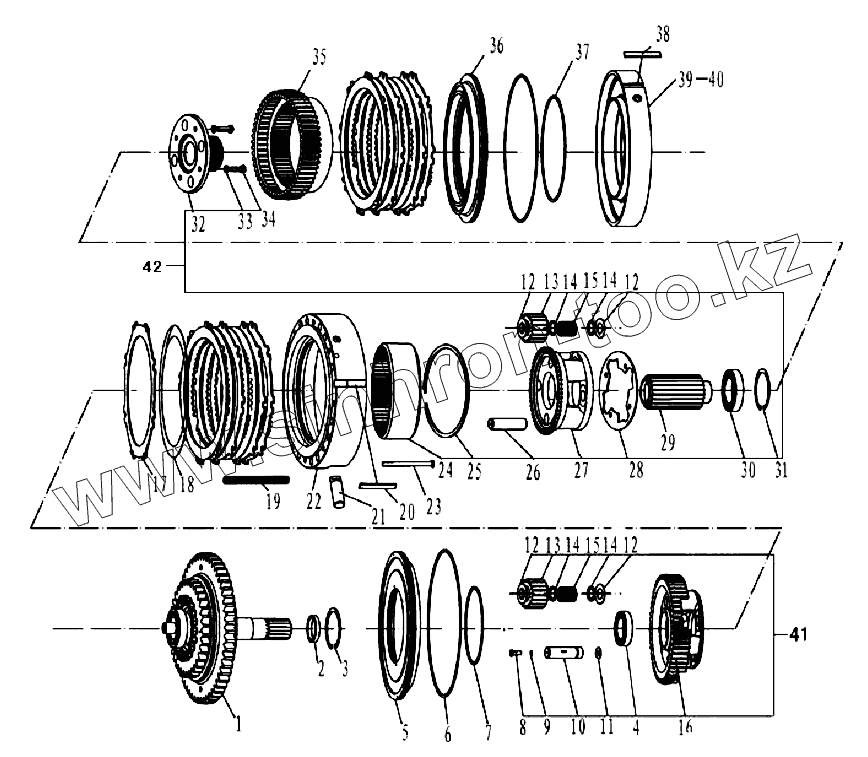

Каталог запасных частей к технике: SDLG LG936L. 4TH SHAFT ASSY (I)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
13
13
14
14
14
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
Позиция на иллюстрации Заводской номер детали Название детали
1 7200000462 AXIS ASSEMBLY
2 3030900168 ISOLATED BUSHING
3 4015000017 RIONG SNAP
4 4021000011 BALL BEARIN
5 3030900139 PISTION
6 3030900143 EXTERNAL SEAL RING
7 3030900163 INTERNAI SEAL RING
8 3030900170 BOLT
9 4015000036 WASHER
10 3030900160 REVERSE PLANET SPINDLE
11 3030900162 STOP WASHER
12 3030900147 SPACER
13 3030900148 PLANET
14 3030900154 RIONG SNAP
15 4090000001 ROLLER
16 3030900171 CARRIER OF REVERSE ASSY
17 3030900140 REVERSE FIRST SPEED DRIVEN DISK
18 2030900028 REVERSE FIRST SPEED DRIVE DISK
19 3030900141 SPRING
20 3030900176 PIN
21 3030900161 ROUND PIN
22 2030900029 ISOLATED BRACKET
23 3030900142 SPRING PIN
24 3030900158 REVERSE RANGE GEAR-RING
25 3030900156 RIONG SNAP
26 3030900149 FIRST SPEED PLANET SPINDLE
27 3030900151 CARRIER OF THE FIRST RANGE PLANET GEAR
28 3030900150 LOCK PLATE
29 3030900153 GEAR-SUN
30 4021000019 BEARING
31 4015000024 RETAINNER RING
32 3030900152 CONNECTING DISH FOR THE DIRECT RANGE
33 4015000026 WASHER
34 4011000125 BOLT
35 3030900172 INTERNAL GEAR-RING ASSEMBLY FOR FIRST RANGE
36 3030900144 FIRST RANGE PISTION
37 3030900113 SEALING RING
38 3030900159 MOUNTING PLATE
39 3030900145 CYLINDER-HOUSING FOR THE FIRST RANGE
40 3030900146 SQUARE SEAL
41 7200000115 REVERSING PLANET CARRIER ASSENBLY
42 7200000114 ONE STEP PLANET CARRIER ASSENBLY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
