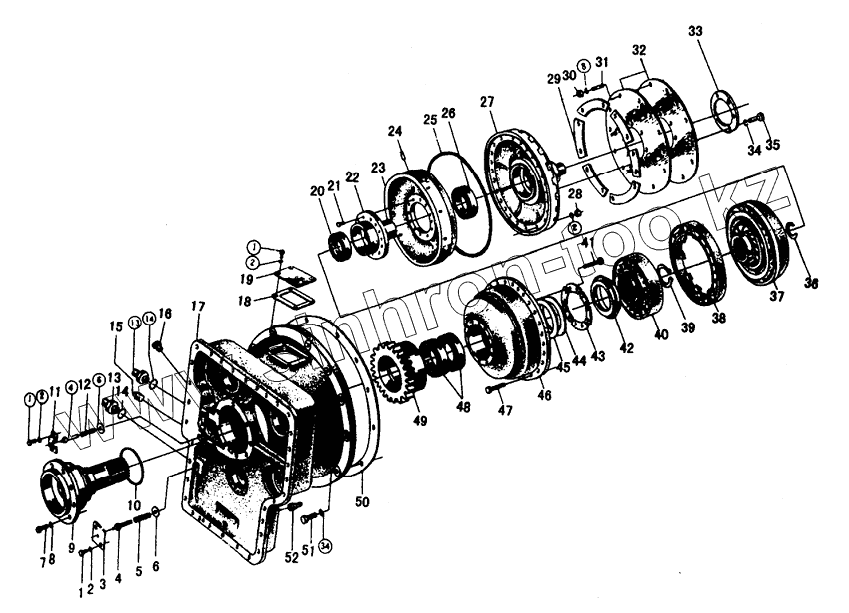

Каталог запасных частей к технике: SDLG LG936. HYDRAULTC TORQUE CONVERTER

Тип техники

Марка

Модель

Схема

1

1

1

2

2

2

2

2

3

4

4

5

6

6

7

8

9

10

11

12

13

13

14

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4110000160001		BLOT M8X16
2	4110000160002		WASHER 8
3	4110000160003		FILLER
4	4110000160004		VALVE STEM
5	4110000160005		SPRING
6	4110000160006		SPACER
7	4110000160007		BOLT M10X25
8	4110000160008		WASHER 10
9	4110000160009		STATOR SEAT
10	4110000160010		SEAL RING
11	4110000160011		VALVE COVER
12	4110000160012		SPRING
13	4110000160013		FITTING Do28.
14	4110000160014		O-RING 35X3.1
15	4110000160015		PLUG
16	4110000160016		THERMOMETER JOINT
17	4110000160017		HOUSING
18	4110000160018		GASKET PAPER
19	4110000160019		FILLER
20	4110000160020		BEARING 6013
21	4110000160021		COUNTERSUNK RIVET M8X16
22	4110000160022		CASE OF FIRST-STAGE TURBINE
23	4110000160023		SHELL OF FIRST-STAGE TURBINE
24	4110000160024		SPRING PIN
25	4110000160025		O-RING
26	4110000160026		BEARING 6210
27	4110000160027		WHEEL SHELL
28	4110000160028		NUT M8
29	4110000160029		SPACER
30	4110000160030		NUT M10X1
31	4110000160031		DOUBLE END STUD AM10X1X18
32	4110000160032		SPRING PLATE
33	4110000160033		ROUND SHIM
34	4110000160034		WASHER 12
35	4110000160035		BLOT M12X30
36	4110000160036		SNAP RING
37	4110000160037		SECOND-STAGE TURBINE
38	4110000160038		FIRST-STAGE TURNINE
39	4110000160039		SNAP RING 80
40	4110000160040		GUIDING WHEEL
41	4110000160041		BOLT M8X30
42	4110000160042		RING
43	4110000160043		CHEAK SPACER
44	4110000160044		CLAMPING PLATE
45	4110000160045		ADJUSTING SPACER
46	4110000160046		PUMP WHEEL
47	4110000160047		BOLT M8X32
48	4110000160048		BEARING 6017
49	4110000160049		GEAR
50	4110000160050		GASKET PAPER
51	4110000160051		BOLT M12X48
52	4110000160052		CONNECTOR

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
