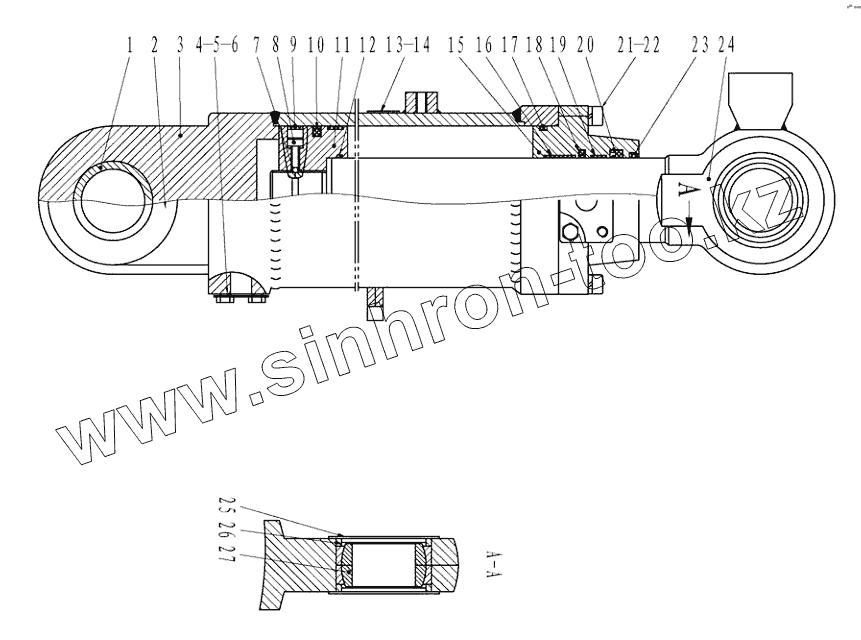

Каталог запасных частей к технике: SDLG LG936. DUMP CYLINDER (371401)
/25.gif)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120000868008 | BUSHING | |
| 2 | 4120000868009 | COVER | |
| 3 | 4120000868010 | CYLINDER BADY | |
| 4 | 4120000868011 | COVERФ25 | |
| 5 | 4120000868012 | COVER 52X26X11 | |
| 6 | 4011000630 | BOLT GB5783-M10x12-8.8 | |
| 7 | 4120000868013 | STEEL BALL 5 | |
| 8 | 4014000059 | BOLT GB70-M8x20-8.8 | |
| 9 | 4120000868014 | SUPPORTING RING S140X 14,8X2,5 | |
| 10 | 4120000868003 | PRESSURIZE RING CKW1400 | |
| 11 | 4120000868015 | PISTON | |
| 12 | 4120000868016 | O-RING 80X3.55 | |
| 13 | 4120000868017 | SCUTCHEON | |
| 14 | 4019000001 | RIVET | |
| 15 | 4120000868018 | CYLINDER COVER | |
| 16 | 4120000868005 | SUPPORTING RING G80 X 29.5 X 2.5 | |
| 17 | 4120000868019 | O-RING 128X5.3 | |
| 18 | 4120000868002 | PRESSURIZE RING CKS0800 | |
| 19 | 4120000868004 | SUPPORTING RING G80 X 9.5 X 2.5 | |
| 20 | 4120000868020 | Y RING 85 X 95 X 12.5 | |
| 21 | 4014000147 | BOLT GB70.1-M12x45EpZn-10.9 | |
| 22 | 4120000868021 | WASHER 12 | |
| 23 | 4120000868022 | DUST PROOF RING FC 1-80 | |
| 24 | 4120000868023 | PISTON ROD | |
| 25 | 4120000868024 | COVER | |
| 26 | 4120000868025 | HOLDING BLOCK | |
| 27 | 4120000868026 | SPHERICAL PLAIN BEARING GE60ES-C3 |
