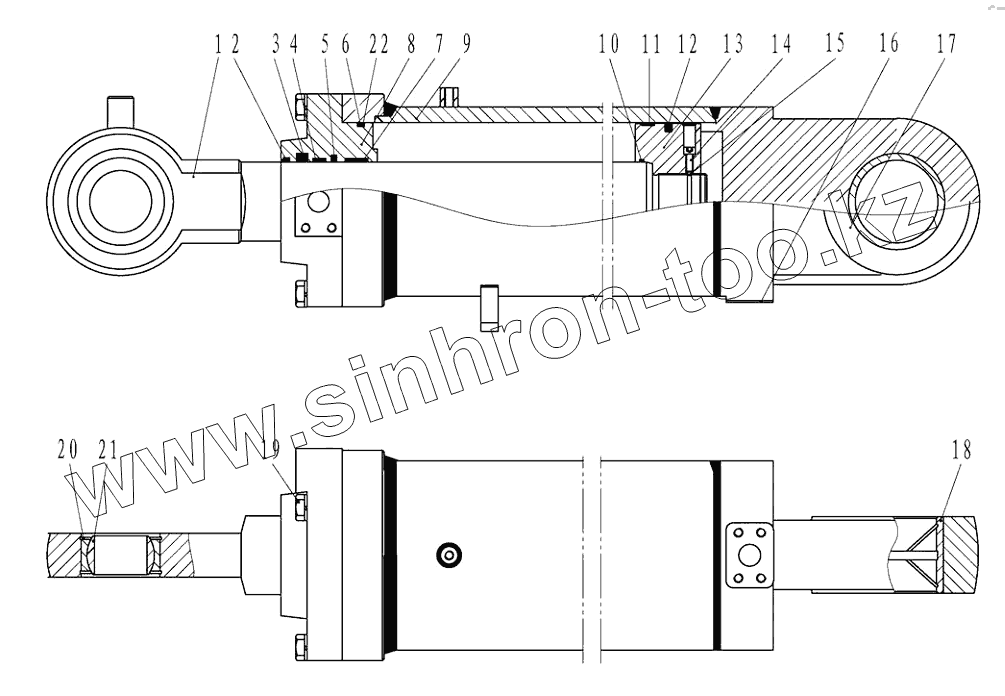

Каталог запасных частей к технике: SDLG LG936. DUMP CYLINDER (371368)
/26.gif)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120000868031 | PISTON ROD HSGF-180/90X542-1 | |
| 2 | 4120000868032 | DUST PROOF RING | |
| 3 | 4120000868033 | PRESSURIZE RING | |
| 4 | 4120000868034 | SUPPORTING RING GB/T15242.2-94 | |
| 5 | 4120000868035 | PRESSURIZE RING | |
| 6 | 4120000868036 | O-RING GB1235-76 | |
| 7 | 4120000868037 | CYLINDER COVER HSGF-180/90X542-2 | |
| 8 | 4120000868038 | SUPPORTING RING GB/T15242.2-94 | |
| 9 | 4120000868039 | CYLINDER BODY HSGF-180/90X542-3 | |
| 10 | 4120000868040 | O-RING GB1235-76 | |
| 11 | 4120000868041 | SUPPORTING RING GB/T15242.2-94 | |
| 12 | 4120000868042 | PRESSURIZE RING S-55044 | |
| 13 | 4120000868043 | PISTON HSGF-180/90X542-4 | |
| 14 | 4030000065 | GREASE NIPPLE | |
| 15 | 4120000868044 | COVER GB/T70-85 | |
| 16 | 4120000868045 | COVER HSGF-180/90X542-8 | |
| 17 | 4030000065 | GREASE NIPPLE | |
| 18 | 4120000868046 | BUSHING HSGF-180/90X542-5 | |
| 19 | 4120000868047 | BUSHING HSGF-180/90X542-6 | |
| 20 | 4120000868048 | BOLT M20 GB5785-86 | |
| 21 | 4120000868049 | SPRING WASHER GB93-87 | |
| 22 | 4120000868050 | RING SNAP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
