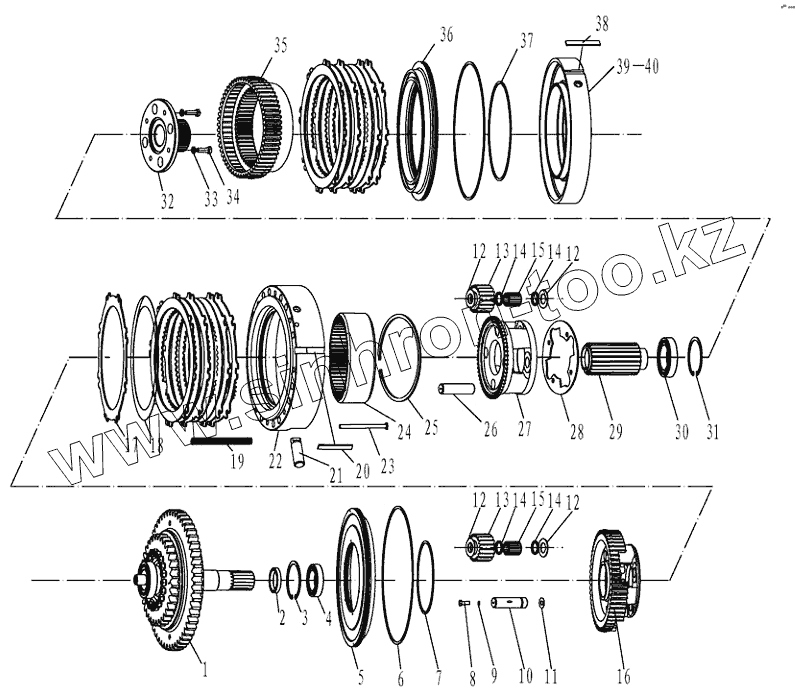

Каталог запасных частей к технике: SDLG LG936. 4RD SHAFT (I)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
13
13
14
14
14
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Позиция на иллюстрации Заводской номер детали Название детали
1 OVERRUNNINGCLUTCHES OVERRUNNING CLUTCHES
2 30309001681 ISOLATED BUSHING
3 4015000017 RIONG SNAP
4 4021000011 BALL BEARIN
5 30309001391 PISTION
6 30309001431 EXTERNAL SEAL RING
7 30309001631 INTERNAI SEAL RING
8 30309001701 BOLT
9 4015000036 WASHER
10 30309001601 REVERSE PLANET SPINDLE
11 30309001621 STOP WASHER
12 30309001471 SPACER
13 30309001481 PLANET
14 30309001541 RIONG SNAP
15 4090000001 ROLLER
16 30309001711 CARRIER OF REVERSE ASS’Y
17 30309001401 REVERSE FIRST SPEED DRIVEN DISK
18 20309000281 REVERSE FIRST SPEED DRIVE DISK
19 30309001411 SPRING
20 30309001761 PIN
21 30309001611 ROUND PIN
22 20309000291 ISOLATED BRACKET
23 30309001421 SPRING PIN
24 30309001581 REVERSE RANGE GEAR-RING
25 30309001561 RIONG SNAP
26 30309001491 FIRST SPEED PLANET SPINDLE
27 30309001511 CARRIER OF THE FIRST RANGE PLANET GEAR
28 30309001501 LOCK PLATE
29 30309001531 GEAR-SUN
30 4021000019 BEARING
31 4015000024 RETAINNER RING
32 30309001521 CONNECTING DISH FOR THE DIRECT RANGE
33 4015000026 WASHER
34 4011000125 BOLT
35 30309001721 INTERNAL GEAR-RING ASSEMBLY FOR FIRST RANGE
36 30309001441 FIRST RANGE PISTION
37 30309001131 SEAL RING
38 30309001591 MOUNTING PLATE
39 30309001451 CYLINDER-HOUSING FOR THE FIRST RANGE
40 30309001461 SQUARE SEAL
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
