Каталог запасных частей к технике: SDLG LG936. IMPLEMENT HYDRAULIC SYSTEM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
3
4
5
6
7
7
7
7
7
7
7
7
8
9
9
9
10
10
10
11
12
13
14
15
16
17
17
17
18
18
19
20
21
21
22
22
22
23
23
23
24
24
24
25
26
26
26
27
28
29
30
31
31
32
33
34
35
36
37
38
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
54
54
55
55
56
56
57
58
59
60
60
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82

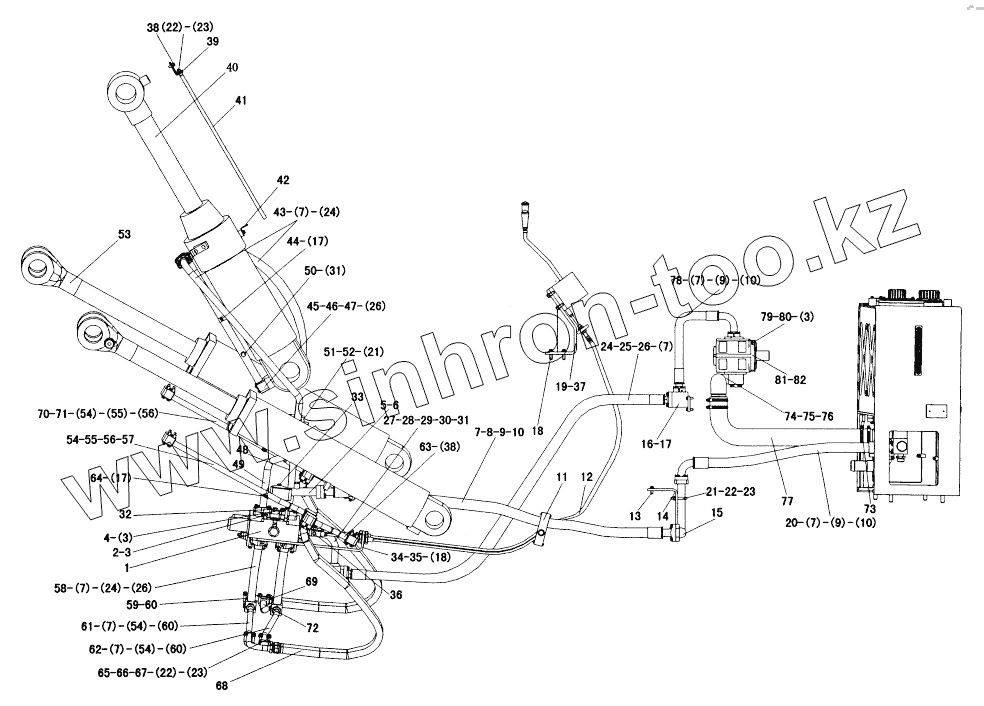

Позиция на иллюстрации Заводской номер детали Название детали
1 4120000414 CONTROL VALVE DF-25B2-16
2 4011000056 BOLT
3 4015000168 WASHER
4 4011000058 BOLT
5 2912000502 OIL RETURN TUBE OF THE CONTROL VEVLE
6 4030000031 O-RING
7 4011000475 BOLT
8 4041000705 TUBE LGB163012112
9 4041000056 FLANGE
10 4030000029 O-RING
11 2912000504 CLAMP
12 2912001097 CONTROL AXIS
13 4011000137 BOLT
14 2912000402 CLAMPING PLATE
15 2912000403 OIL RETURN TUBE
16 2912000404 TWO-WAY MASS
17 4011000458 BOLT
18 4011000477 BOLT
19 4120001071 CONTROL SYSTEM LG12-936CZJG01
20 4041000532 TUBE
21 4011000556 U-BOLT
22 4013000007 NUT
23 4015000162 Washer
24 4041000043 FLANGE
25 4041000698 TUBE LGB107010125
26 4030000026 O-RING
27 2912000510 FRAME
28 4011000447 BOLT
29 2912000405 INPUT TUBE OF THE CONTROL VALVE
30 4041000774 PLUG
31 4041000767 O-RING
32 4011000263 BOLT GB5782-M12x130EpZn-8.8
33 4011000230 BOLT GB16674-M10x65EpZn-8.8
34 2912000503 CLAMPING PLATE OF CONTROL VALVE
35 4013000011 NUT
36 2912000008 JOINT HEAD
37 4120001072 CONTROL SYSTEM LG12-936CZJG02
38 4011000447 BOLT
39 2914000002 CLAMPING PLATE
40 4120000868 TILT CYLINDER HSGF-140x80x502-952
41 2914000402 INDICATING ROD OF BUCKET
42 2914000004 CONDUIT OF INDICATING ROD
43 4041000703 PIPE
44 2913000011 CAMPLE
45 2914000403 BIG CHAMBER TUBE OF TILT CYLINDER
46 4011000309 BOLT
47 4011000473 BOLT
48 2914000404 OIL TUBE ASSEMBLY OF TILT CYLINDER A
49 2914000405 OIL TUBE ASSEMBLY OF TILT CYLINDER В
50 4041000774 PLUG
51 2914000406 STEADY REST A
52 2914000407 STEADY REST B
53 4120000867 LIFT CYLINDER
54 4030000279 O-RING
55 4011000309 BOLT
56 4011000164 BOLT
57 2913000402 SMALL CHAMBER TUBE OF LEFT LIFTING CYLINDER
58 2913000861 THREE OF TUBE OF LIFT CYLINDER
59 2913000867 TUBE OF VALVE TO BIG CHAMBER OF RIGHT RIGHT CYLINDER
60 4041000137 FLANGE
61 2913000869 TUBE OF VALVE TO BIG CHAMBER OF RIGHT LIFT CYLINDER
62 2913000871 TUBE OF VALVE TO SMALL CHAMBER OF RIGHT LIFT CYLINDER
63 2913000407 BIG CHAMBER TUBE OF LEFT LIFTING CYLINDER
64 2913000408 PIPE CLIP
65 4011000488 BOLT
66 4011000490 U-BOLT
67 2913000409 STEADY REST A
68 2913000895 LIFTING CYLINDER HOSE
69 2913000411 STEADY REST B
70 2913000412 BIG CHAMBER TUBE OF RIGHT LIFTING CYLINDER
71 2913000413 SMALL CHAMBER TUBE OF RIGHT LIFTING CYLINDER
72 2913000873 TUBE OF VALVE TO SMALL CHAMBER OF RIGHT RIGHT CYLINDER
73 4017000013 CLAMP
74 2911000402 INTAKE OIL TUBE OF PUMP
75 4011000337 BOLT
76 4030000235 O-RING
77 2911000403 INTAKE OIL HOSE OF PUMP
78 2911000404 OUT OIL TUBE OF PUMP
79 4013000011 NUT
80 4012000003 DOUBLE-SCREW BOLT
81 4120000401 WORKING PUMP CBGJ3100A
82 2911000004 SEALING PLATE OF PUMP
