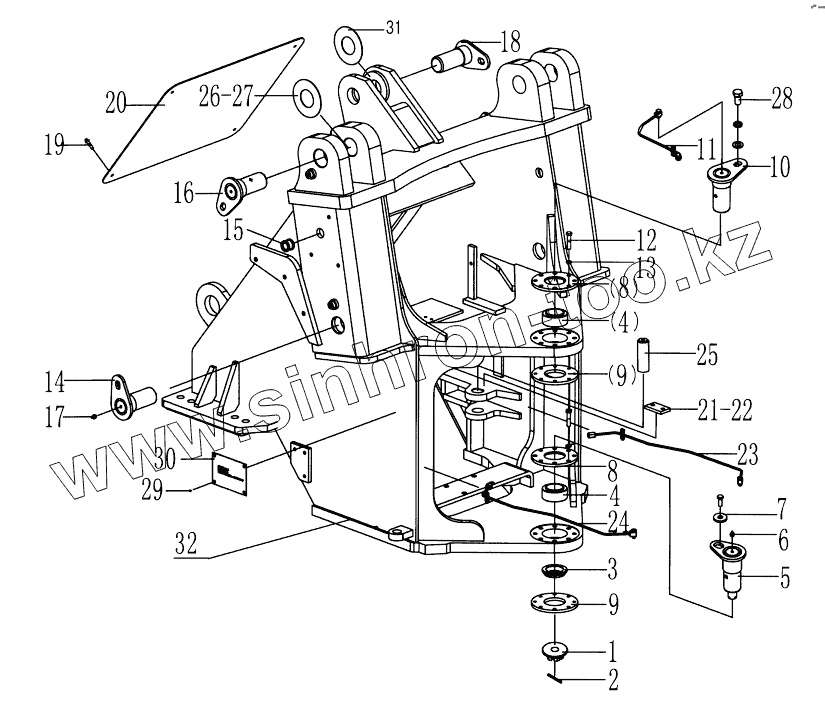

Каталог запасных частей к технике: SDLG LG936. FRONT FRAME
/35.gif)
1
2
3
4
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2925000106 | SLOTTED NUT | |
| 2 | 4016000113 | SPLIT PIN | |
| 3 | 3110900003 | BUSH | |
| 4 | 4021000042 | BEARING | |
| 5 | 2110900259 | DOWN ARTICULATION PIN | |
| 6 | 2927000800 | TUBE ASSEMBLY | |
| 7 | 4040000001 | WASHER | |
| 8 | 3110900004 | DISC | |
| 9 | 3110900005 | DISC | |
| 10 | 2110900260 | UP ARTICULATION PIN | |
| 11 | 2110900052 | TUBE | |
| 12 | 4011000186 | BOLT | |
| 13 | 4015000026 | WASHER | |
| 14 | 4043000110 | PIN LGB301-60x125x235-40Cr | |
| 15 | 2925000135 | RUBBER SLEEVE | |
| 16 | 4043000111 | PIN LGB301-65x122x235G-40Cr | |
| 17 | 4030000065 | GREASE NIPPLE | |
| 18 | 4043000112 | PIN | |
| 19 | 4011000102 | BOLT | |
| 20 | 2110900256 | FRONT HOOD | |
| 21 | 2925000111 | PLATE | |
| 22 | 2925000112 | PLATE | |
| 23 | 2110900012 | OIL TUBE | |
| 24 | 2110900013 | OIL TUBE | |
| 25 | 3110900011 | FRONT PIN OF STEERING CYLINDER | |
| 26 | 4043000197 | WASHER | |
| 27 | 4043000198 | WASHER | |
| 28 | 4011000197 | BOLT | |
| 29 | 4019000012 | Rivet | |
| 30 | 4044000029 | NAME PLATE LGB402-A1/LG936 | |
| 31 | 4043000151 | SPACER | |
| 32 | 2924000401 | FRONT FRAME |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
