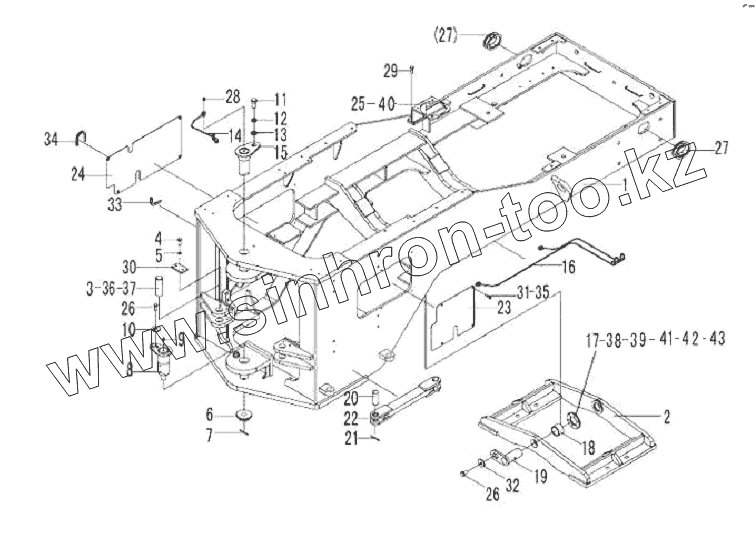

Каталог запасных частей к технике: SDLG LG933L. Задняя рама в сборе
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29260008004 | REAR FRAME | |
| 2 | 29270007841 | OSCILLATING FRAME | |
| 3 | 29270007971 | REAR PIN OF STEERING CYLINDER | |
| 4 | 4011000197 | BOLT | |
| 5 | 4015000026 | WASHER | |
| 6 | 29250001061 | SLOTTED NUT | |
| 7 | 4016000113 | SPLIT PIN | |
| 8 | 2110900005 | DOWN ARTICULATION PIN | |
| 9 | 29270008001 | TUBE ASSEMBLY | |
| 10 | 4040000002 | WASHER | |
| 11 | 4011000417 | BOLT GB5783-M20x35EpZn-8.8 | |
| 12 | 4015000030 | WASHER | |
| 13 | 4015000176 | WASHER | |
| 14 | 2110900052 | TUBE | |
| 15 | 2110900006 | UP ARTICULATION PIN | |
| 16 | 2110900007 | OIL TUBE OF OSCILLATING FRAME | |
| 17 | 29270001051 | ADJUST SPACER | |
| 18 | 29270007831 | BUSH | |
| 19 | 29270008591 | JOINTING PIN | |
| 20 | 4016000222 | PIN | |
| 21 | 4016000040 | SPLINT PIN | |
| 22 | 29270008891 | MOUNT BAR | |
| 23 | 29270008611 | PLATE | |
| 24 | 2110900524 | PLATE | |
| 25 | 2110900225 | Кронштейн фильтра | |
| 26 | 4011000093 | BOLT | |
| 27 | 29270009101 | Rubber sleeve | |
| 28 | 4030000065 | GREASE NIPPLE | |
| 29 | 4011000560 | BOLT | |
| 30 | 3110900177 | Plate | |
| 31 | 4011000102 | BOLT | |
| 32 | 4040000001 | WASHER | |
| 33 | 29270007821 | RUBBER BUSH | |
| 34 | 29270007541 | RUBBER BUSH | |
| 35 | 4015000256 | WASHER | |
| 36 | 4043000064 | SPACER | |
| 37 | 4043000325 | SPACER | |
| 38 | 29270001061 | ADJUST SPACER | |
| 39 | 29270001071 | ADJUST SPACER | |
| 40 | 29040007801 | FILTER BRACKET | |
| 41 | 29270009311 | Shim | |
| 42 | 29270009321 | Shim | |
| 43 | 29270009331 | Shim |
