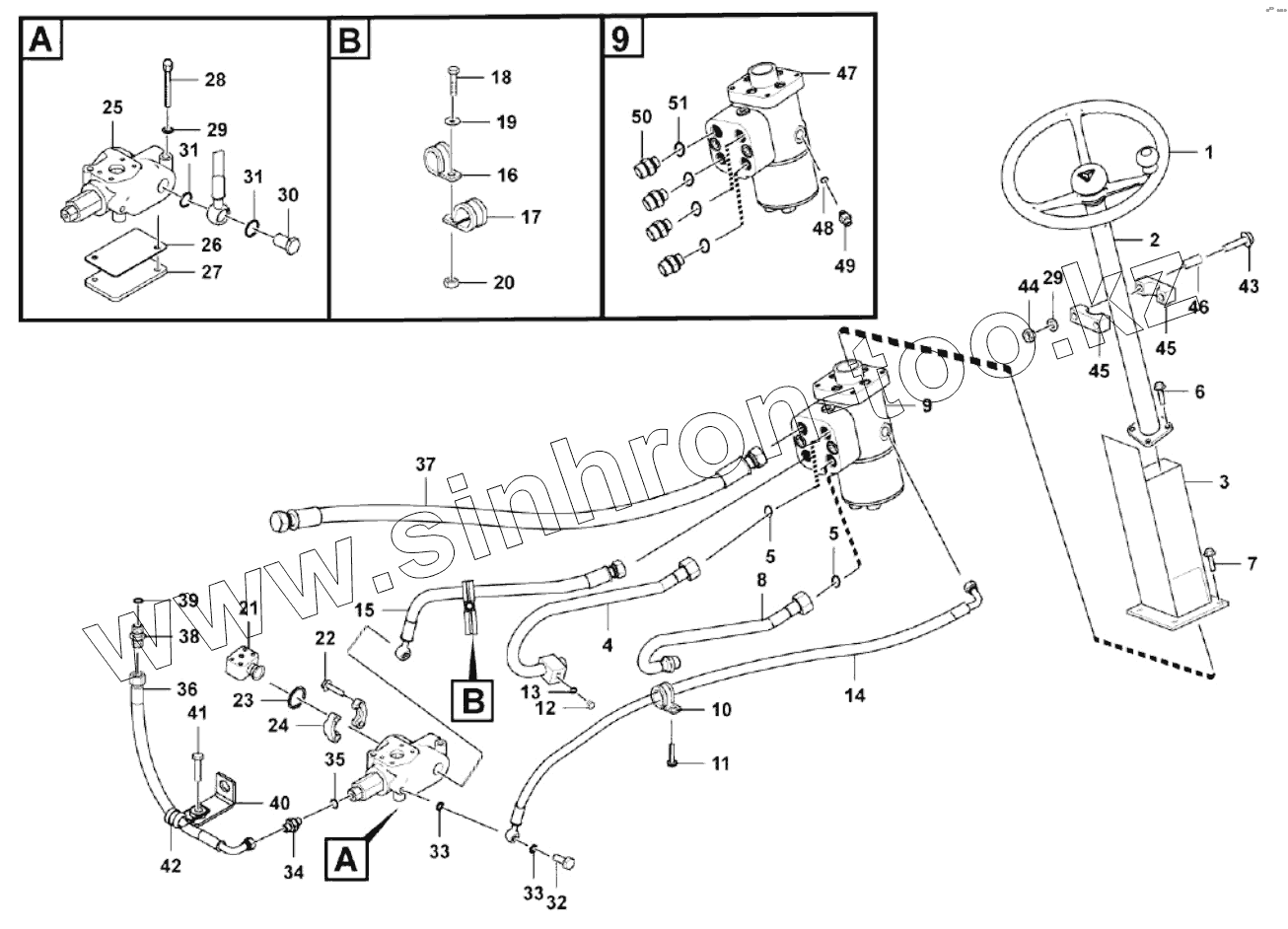

Каталог запасных частей к технике: SDLG LG933. Steering gear system
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
50
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120000018 | STEERINGWHEEL | |
| 2 | 4120005406 | Steering column | |
| 3 | 29310024341 | Bracket | |
| 4 | 29200008561 | OUTLET TUBE FROM STEERING DEVICE | |
| 5 | 4030000501 | O-RING | |
| 6 | 4011000473 | BOLT | |
| 7 | 4011000479 | BOLT | |
| 8 | 29200004031 | OUTLET TUBE FROM STEERING DEVICE | |
| 9 | 29200010651 | Diverter valve | |
| 10 | 4041002410 | Clamp | |
| 11 | 4011000807 | Bolt | |
| 12 | 4041000774 | PLUG | |
| 13 | 4041000767 | O-RING | |
| 14 | 29200007772 | Hose assembly | |
| 15 | 29200005032 | Hose assembly | |
| 16 | 4041002413 | Clamp | |
| 17 | 4041002412 | Clamp | |
| 18 | 4011000461 | BOLT | |
| 19 | 4015000072 | WASHER | |
| 20 | 4013000033 | NUT | |
| 21 | 29200005051 | INLET TUBE OFPRIORITY VALVE | |
| 22 | 4011000475 | BOLT | |
| 23 | 4030000029 | O-RING | |
| 24 | 4041000056 | FLANGE | |
| 25 | 4120005053 | Priority valve | |
| 26 | 29200009871 | Rubber plate | |
| 27 | 29200009981 | Plate | |
| 28 | 4011000797 | BOLT GB5782-M10x110EpZn-8.8 | |
| 29 | 4015000162 | Washer | |
| 30 | 4011000402 | BOLT JB999-M33x2x50-35 | |
| 31 | 4030000063 | WASHER JB1002-33-T2 | |
| 32 | 4011000319 | Болт | |
| 33 | 4030000056 | WASHER | |
| 34 | 4041000084 | CONNECTER | |
| 35 | 4030000285 | O-RING | |
| 36 | 4041002088 | Hose | |
| 37 | 4041001004 | Hose | |
| 38 | 4041000133 | Nipple | |
| 39 | 4041000775 | O-ring | |
| 40 | 26370001172 | Bracket | |
| 41 | 4011000488 | BOLT | |
| 42 | 26370001921 | CLAMP | |
| 43 | 4011000528 | BOLT GB16674-M10x100EpZn-8.8 | |
| 44 | 4013000007 | NUT | |
| 45 | 29310011251 | MOUNTING PLATE | |
| 46 | 29310011301 | ADJUSTING SEAT | |
| 47 | 4120003947 | Control valve | |
| 48 | 4041000783 | O-RING | |
| 49 | 4041000564 | JOINT | |
| 50 | 4041000131 | JOINT | |
| 51 | 4041000784 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
