Каталог запасных частей к технике: SDLG LG933. Electric equipment
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31

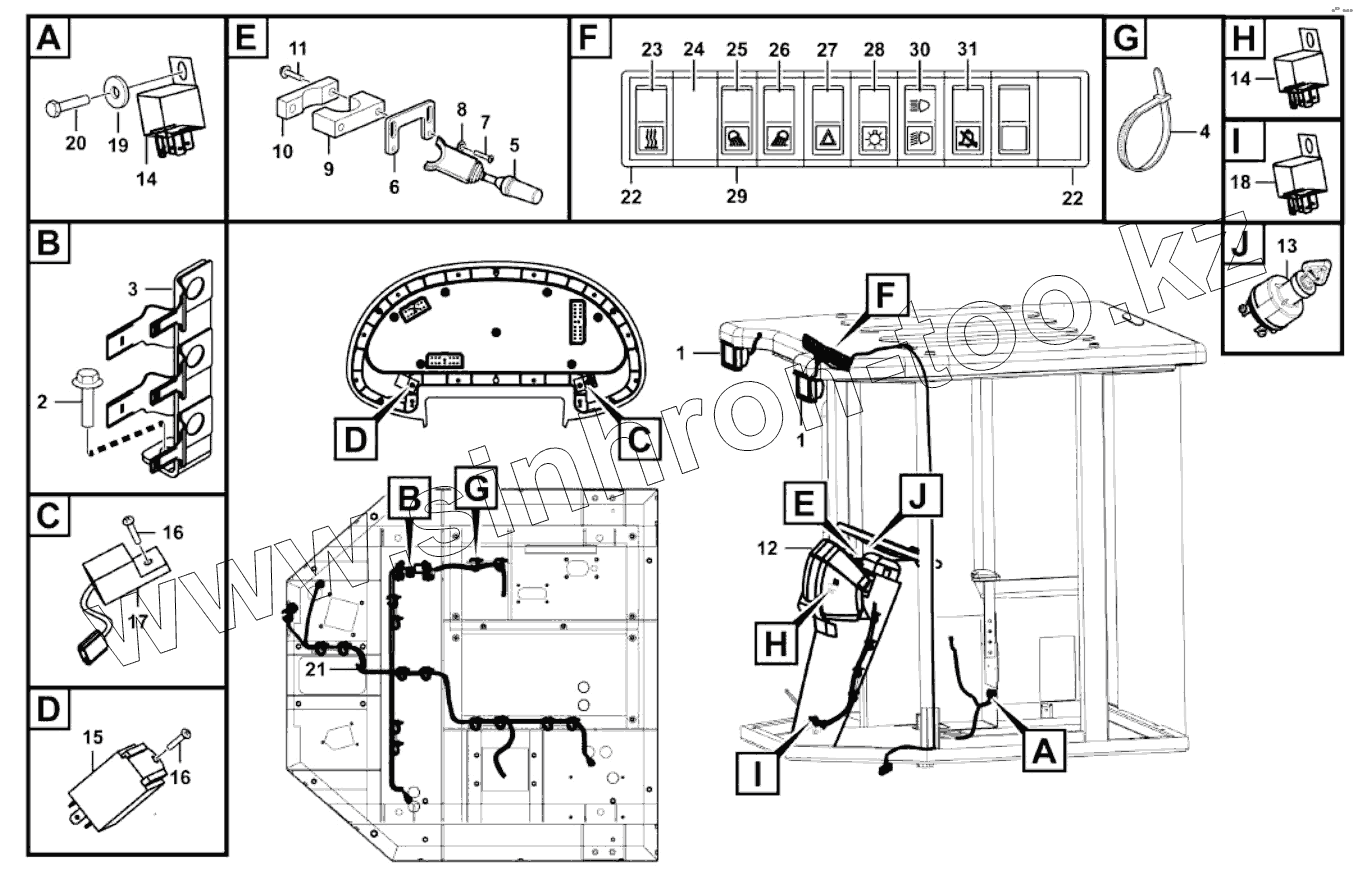

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4130001685 | Lamp | |
| 2 | 4011000461 | BOLT | |
| 3 | 29370022731 | Bracket | |
| 4 | 4190001839 | Cable tie | |
| 5 | 4130000290 | STEERING SWITCH | |
| 6 | 29370026251 | Support plate | |
| 7 | 4014000026 | SCREW | |
| 8 | 4015000207 | WASHER | |
| 9 | 29370026241 | Retainer | |
| 10 | 29370026231 | Clamp | |
| 11 | 4011000161 | BOLT | |
| 12 | 4130001714 | Display panel | |
| 13 | 4130001342 | Starter switch | |
| 14 | 4130000869 | Relay | |
| 15 | 4130000587 | ALARM APPARATUS | |
| 16 | 4014000066 | Screw | |
| 17 | 4130000022 | FLASH RELAY SG252 | |
| 18 | 4130000912 | Relay | |
| 19 | 4015000110 | WASHER | |
| 20 | 4014000048 | SCREW | |
| 21 | 29430002331 | Cable harness | |
| 22 | 4130000498 | SIDE FRAME | |
| 23 | 4130000514 | SWITCH OF WARMING MACHINE | |
| 24 | 4130000496 | CAP | |
| 25 | 4130000491 | Rocker switch | |
| 26 | 4130000490 | Rocker switch | |
| 27 | 4130000492 | Rocker switch | |
| 28 | 4130000489 | BACK LAMP BUTTON-SWlTCH JK931-01BGD | |
| 29 | 4130000497 | Switch panel | |
| 30 | 4130000555 | FRONT BlG LAMP BUTTON-SWlTCH JK931-01QDD | |
| 31 | 4130001052 | Rocker switch |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
