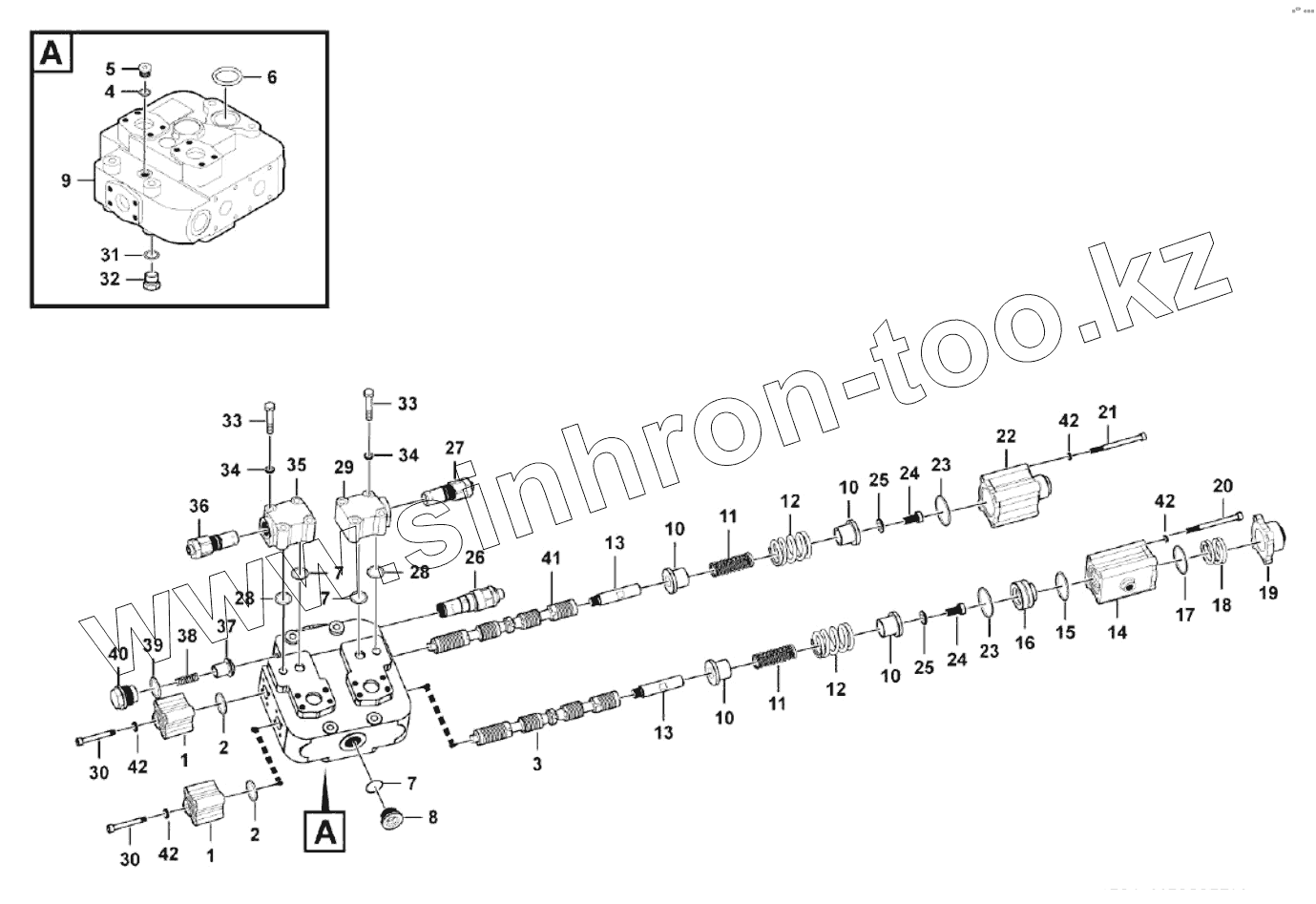

Каталог запасных частей к технике: SDLG LG933. DFSY-25-16 (331005) Control valve assembly
1
1
2
2
3
4
5
6
7
7
7
8
9
10
10
10
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
25
26
27
28
28
29
30
30
31
32
33
33
34
34
35
36
37
38
39
40
41
42
42
42
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120005199003 | Cover | |
| 2 | 4030000223 | O-ring | |
| 3 | 4120005202001 | Valve rod | |
| 4 | 4030000986 | O-ring | |
| 5 | 4120005199025 | Plug | |
| 6 | 4030000760 | O-ring | |
| 7 | 4030000013 | O-RING | |
| 8 | 4120005199028 | Plug | |
| 9 | 4120002277001 | Valve body | |
| 10 | 4120005199014 | Spring seat | |
| 11 | 4120001054215 | Spring | |
| 12 | 4120005199012 | Spring | |
| 13 | 4120005199015 | Joint | |
| 14 | 4120005199023 | Cover | |
| 15 | 7100002101 | O-ring | |
| 16 | 4120005202003 | Piston | |
| 17 | 4030000033 | O-ring | |
| 18 | 4120005199021 | Spring | |
| 19 | 4120005199020 | Plate | |
| 20 | 4014000461 | Screw | |
| 21 | 4014000460 | Screw | |
| 22 | 4120005202004 | Cover | |
| 23 | 4030000707 | O-RING | |
| 24 | 4120005199017 | Screw | |
| 25 | 4015000313 | WASHER GB97.1-12-300HV | |
| 26 | 4120001133026 | Valve | |
| 27 | 4120001133027 | Valve | |
| 28 | 4030000981 | O-ring | |
| 29 | 4120002432430 | Valve | |
| 30 | 4014000459 | Screw | |
| 31 | 4030000281 | O-ring | |
| 32 | 4120001053008 | Plug | |
| 33 | 2808000112012 | Screw | |
| 34 | 4015000025 | Washer | |
| 35 | 4120002432431 | Valve | |
| 36 | 4120002038161 | Valve | |
| 37 | 4120002279134 | Direction valve | |
| 38 | 4120002279133 | Valve spring | |
| 39 | 3901000019 | O-ring | |
| 40 | 4120005202005 | Cover | |
| 41 | 4120005202006 | Valve rod | |
| 42 | 4015000036 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
