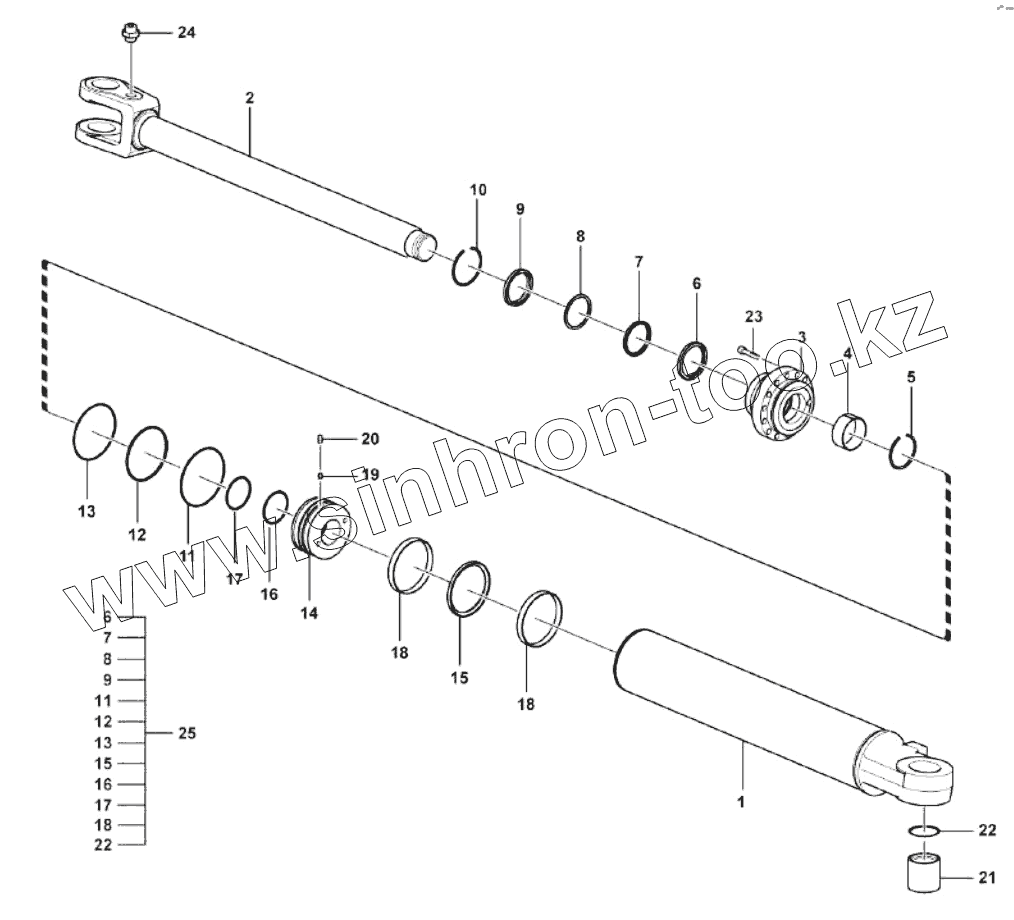

Каталог запасных частей к технике: SDLG LG933. Boom cylinder (3713CH)
1
2
3
4
5
6
6
7
7
8
8
9
9
10
11
11
12
12
13
13
14
15
15
16
16
17
17
18
18
18
19
20
21
22
22
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120005979002 | Cylinder tube | |
| 2 | 4120005979003 | Piston rod | |
| 3 | 4120007051003 | Cover | |
| 4 | 4120006315004 | Bushing | |
| 5 | 4120007051004 | Retaining ring | |
| 6 | 4120000867033 | Sealing ring | |
| 7 | 4120007051005 | Sealing ring | |
| 8 | 4120008123002 | Retaining ring | |
| 9 | 4120000867036 | Sealing ring | |
| 10 | 4120007051007 | Retaining ring | |
| 11 | 4120007051008 | O-ring | |
| 12 | 4120008123003 | O-ring | |
| 13 | 4120006672011 | Sealing ring | |
| 14 | 4120007051011 | Piston | |
| 15 | 4120006672014 | Sealing ring | |
| 16 | 4120007051012 | O-ring | |
| 17 | 4120008123004 | Retaining ring | |
| 18 | 4120007051014 | Sealing ring | |
| 19 | 4120006603018 | Ball | |
| 20 | 4120006316010 | Screw | |
| 21 | 4120007051015 | 24C116100 Bushing | |
| 22 | 4120007051016 | 24R306040 Sealing ring | |
| 23 | 4120006000010 | Screw | |
| 24 | 4120006315008 | Seat | |
| 25 | 4120005979001 | Sealing kit |
