Каталог запасных частей к технике: SDLG LG933. LG9330I1-4 Steering system (load sensing)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
49
50
51
52
53

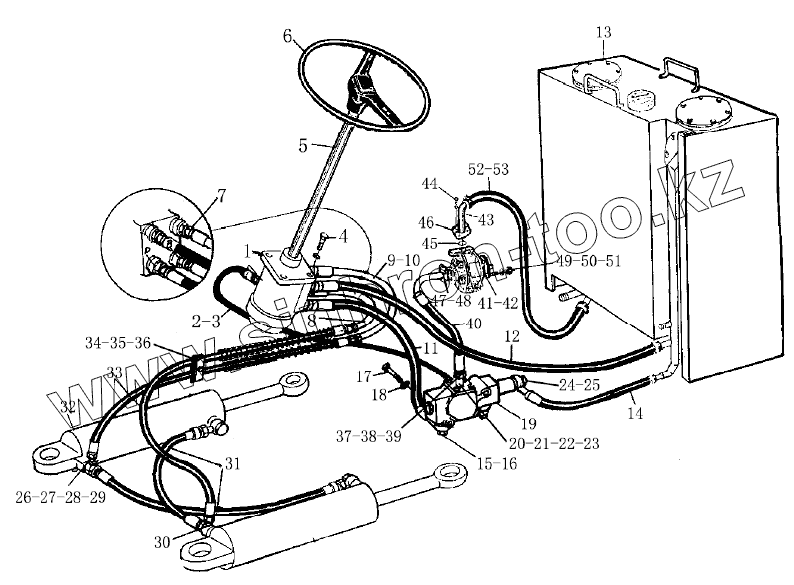

Позиция на иллюстрации Заводской номер детали Название детали
1 4120000987 STEERING GEAR BZZ6-630
2 29200007771 FEEDBACK OIL PIPE OF PRIORITY VALVE
3 4041000131 JOINT
5 4120000019 STEERING POLE
6 4120000018 STEERINGWHEEL
7 4041000564 JOINT
8 29200004031 OUTLET TUBE FROM STEERING DEVICE
9 29200004021 OIL OUTLET TUBE OF STEERING GEAR
10 4030000289 O-RING
11 29200005031 OIL INLET PIPE OF STEERING GEAR
12 4041000191 TUBE LGB124-010120
13 29100005011 HYDRAULIC OIL TANK
14 29200005041 OIL RETURN PIPE OF PRIORITY VALVE
15 4011000402 BOLT JB999-M33x2x50-35
16 4030000063 WASHER JB1002-33-T2
17 4011000053 BOLT
18 4015000162 Washer
19 4120000129 PRIORITY
20 29200005051 INLET TUBE OFPRIORITY VALVE
22 4030000029 O-RING
23 4041000056 FLANGE
24 4030000067 BOLT
25 4030000056 WASHER
26 29210004081 Pipe
27 4030000275 O-RING
28 4011000481 BOLT
29 4011000277 BOLT
30 29210004091 Pipe
31 4041000563 PIPE
32 4120001004 STEERING CYLINDER
33 29210007661 OIL INLET PIPE OF STEERING CYLINDER
34 29210005021 CLAMPING PLATE
35 29210004071 RUBBER BAR
36 4011000476 BOLT
37 4011000475 BOLT
38 4030000026 O-RING
39 4041000043 FLANGE
40 29190005021 OUT TUBE FROM PUMP
41 4120000401 WORKING PUMP CBGJ3100A
42 29110000041 SEALING WASHER
43 29190005031 INTANKE TUBE FROM PUMP
44 4011000479 BOLT
45 4030000244 0-RING 41.2x3.55G
46 4041000011 FLANGE
49 4012000003 DOUBLE-SCREW BOLT
50 4013000011 NUT
51 4015000168 WASHER
52 29190005041 INTANKE TUBE
53 4017000018 CLAMP
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
