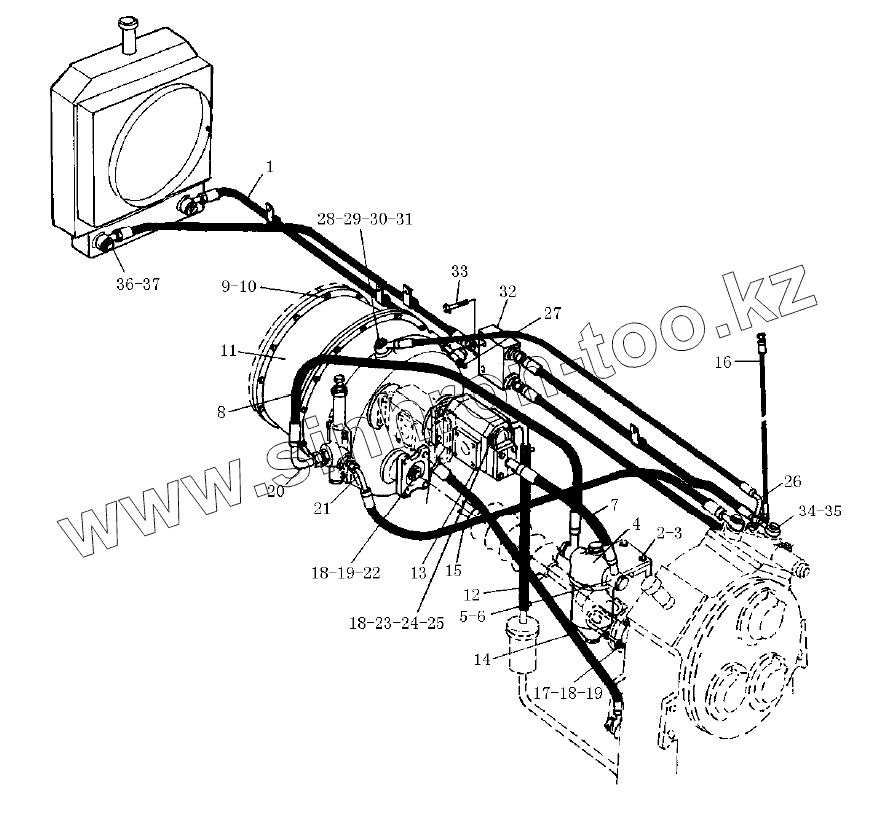

Каталог запасных частей к технике: SDLG LG933. LG9330B1 Torque converter system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2020900057 | TO RADIATOR PIPE | |
| 2 | 4011000107 | BOLT | |
| 3 | 4015000036 | WASHER | |
| 4 | 4110000357 | OIL FILTER QF60M33G | |
| 5 | 4120000125 | JOINT BODY | |
| 6 | 4030000229 | O-RING | |
| 7 | 2020900044 | TO OIL FILTER PIPE | |
| 8 | 2020900058 | TO TRANSMISSION PIPR | |
| 9 | 4015000025 | Washer | |
| 10 | 4011000085 | BOLT | |
| 11 | 4110000083 | HYDRAULIC TORQUE CONVERTER YJ315LG-1 | |
| 12 | 2020900060 | INTAKE OIL TUBE TO PUMP | |
| 13 | 4110000044 | SHIFT PUMP CBGjA2032 | |
| 14 | 2020900046 | OIL RETURN PIPE ASSEMBLY | |
| 15 | 2020900053 | TO SHAFT VALVE PIPE | |
| 16 | 2020900054 | SHIFT PRESS VITTA | |
| 17 | 4011000125 | BOLT | |
| 18 | 4015000026 | WASHER | |
| 19 | 4013000126 | NUT GB889.2-M12x1.25EpZn-8 | |
| 20 | 3020900020 | CONNECTOR | |
| 21 | 3020900035 | PIPE JIONT | |
| 22 | 2020900051 | MAIN DRIVE SHAFT | |
| 23 | 29110000041 | SEALING WASHER | |
| 24 | 4012000003 | DOUBLE-SCREW BOLT | |
| 25 | 4013000011 | NUT | |
| 26 | 3020900031 | CONNECTOR | |
| 27 | 3020900034 | THEMOMENTER JOINT | |
| 28 | 3020900033 | CONNECTOR | |
| 29 | 2020900052 | OIL RETURN PIPE | |
| 30 | 4011000240 | BOLT JB999-M14x1.5x35EpZn-35 | |
| 31 | 4030000057 | WASHER | |
| 32 | 2020900059 | TEE BLOCK P | |
| 33 | 4011000230 | BOLT GB16674-M10x65EpZn-8.8 | |
| 34 | 4030000060 | WASHER JB1002-22-T2 | |
| 35 | 4011000382 | BOLT JB999-M22x1.5x50-35 | |
| 36 | 4015000203 | WASHER | |
| 37 | 4011000399 | BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
