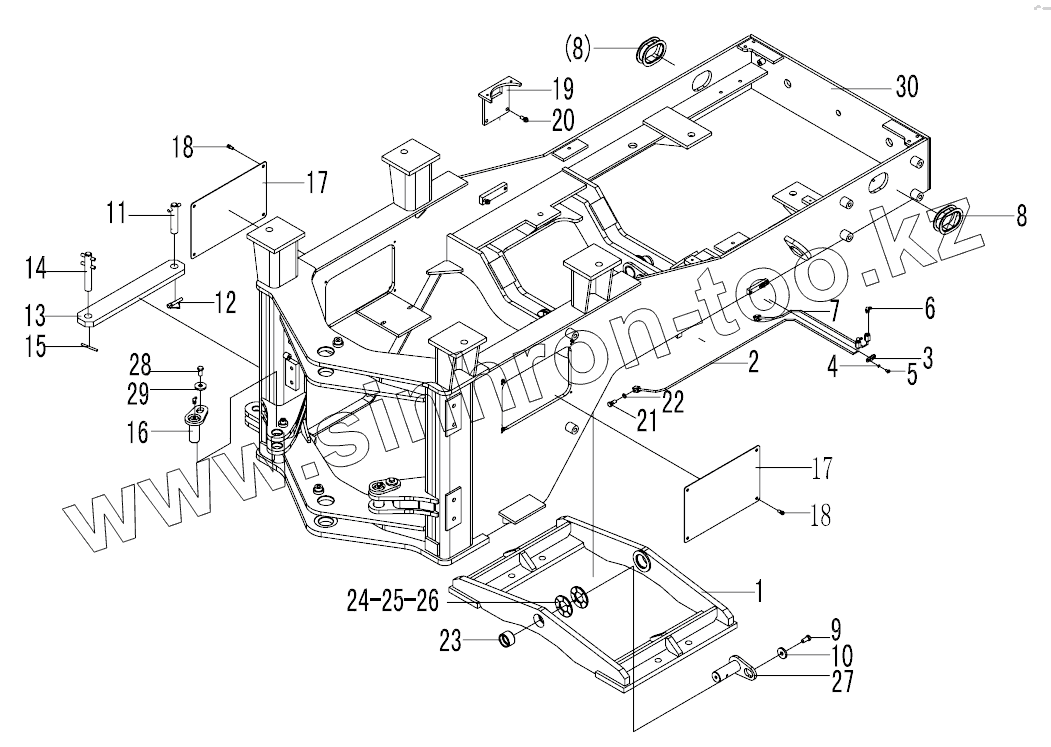

Каталог запасных частей к технике: SDLG LG918. LG9180K2 Rear frame assembly
/18.gif)
1
1
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29270008621 | OSCILLATING FRAME | |
| 1 | 29270006521 | OSCILLATING FRAME | |
| 2 | 29270006582 | FRONT OIL TUBE OF SOCILLATING FRAME | |
| 3 | 29250000311 | PLATE | |
| 4 | 4015000035 | WASHER | |
| 5 | 4014000024 | SCREW | |
| 6 | 4030000065 | GREASE NIPPLE | |
| 7 | 29270006601 | REAR OIL TUBE OF SOCILLATING FRAME | |
| 8 | 29270000031 | RUBBER SLEEVE | |
| 9 | 4011000087 | BOLT | |
| 10 | 4040000001 | WASHER | |
| 11 | 29270006651 | FRONT PIN OF MOUNT BAR | |
| 12 | 29270000081 | HOLDING RING | |
| 13 | 29270006671 | MOUNT BAR | |
| 14 | 29270006681 | REAR PIN OF MOUNT BAR | |
| 15 | 4016000194 | SPLIT PIN GB91-8x50EpZn-Q235A | |
| 16 | 29250007971 | PIN | |
| 17 | 29270006701 | COVER PLATE | |
| 18 | 4011000461 | BOLT | |
| 19 | 29270006711 | BRACKET | |
| 20 | 4011000447 | BOLT | |
| 21 | 29250000291 | BOLT | |
| 22 | 29250000301 | WASHER | |
| 23 | 29270006741 | BUSH | |
| 24 | 29270006751 | ADJUST SPACER | |
| 25 | 29270006761 | ADJUST SPACER | |
| 26 | 29270006771 | ADJUST SPACER | |
| 27 | 4043000143 | PIN LGB301-40X70RX110-40Cr | |
| 28 | 4011000081 | BOLT | |
| 29 | 4040000008 | WASHER LGB001-10 | |
| 30 | 29260006512 | REAR FRAME |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
