  5. LG9180F1-4 Work equipment hydraulic system

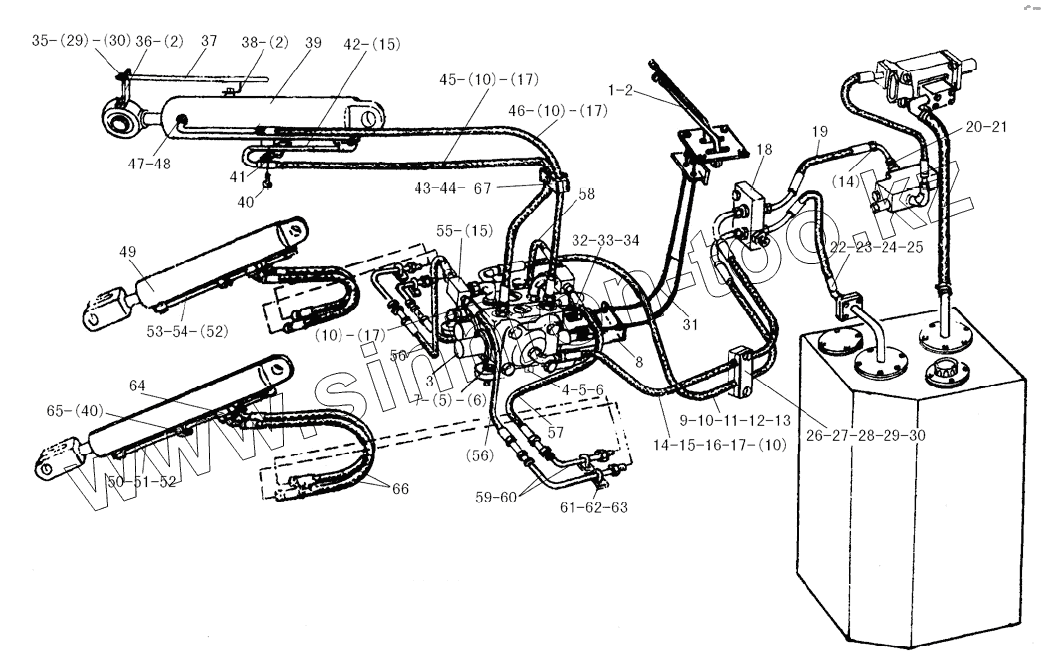

Каталог запасных частей к технике: SDLG LG918. LG9180F1-4 Work equipment hydraulic system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
2
3
4
5
5
6
6
7
8
9
10
10
10
10
10
11
12
13
14
14
15
15
15
16
17
17
17
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
30
31
32
33
34
35
36
37
38
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
52
53
54
55
56
56
57
58
59
60
61
62
63
64
65
66
67
Позиция на иллюстрации Заводской номер детали Название детали
1 4120000986 CONTROL MECHANISM LG12-918CZJG
2 4011000447 BOLT
3 4120000365 MULTIPLE UNIT VALVE
4 4011000479 BOLT
5 4015000168 WASHER
6 4013000011 NUT
7 4011000467 BOLT
8 29120006521 MOUNTED PLATE OF MULTIPLE UNIT VALVE
9 4041000676 CONNECTOR LGB120-03630
10 4041000685 O-RING LGB168-12631
11 29120006541 UNIT ANGLE COUPLING
12 4030000504 O-RING GB3452.1-25.8x1.80G
13 4041000675 PIPE LGB165-014130
14 29120006551 Nipple
15 4030000501 O-RING
16 4041000511 PIPE LGB128012112
17 4041000582 CONNECTOR
18 29120006571 VALVE BLOCK
19 4041000510 PIPE LGB129-012045
20 4041000796 CONNECTOR LGB120-02628
21 4041000779 O-RING
22 4011000481 BOLT
23 4030000279 O-RING
24 29190008061 GLAND
25 29120006591 RETURN PIPE
26 29120006601 PRESS PLATE
27 29120011171 RUBBER PLATE
28 4011000314 BOLT GB16674-M10x80EpZn-8.8
29 4013000007 NUT
30 4015000162 Washer
31 29120008051 CONTROL FLEXIBLE SHAFT
32 29120006621 PIN JOINT
33 4016000195 PIN ROLL GB882-B8x26EpZn-35
34 4019000184 SPLINT PIN
35 4015000025 Washer
36 29140000021 CLAMPING PLATE
37 29140006521 INDICATING ROD OF BUCKET
38 29140000041 CONDUIT OF INDICATING ROD
39 4120000979 TILT CYLINDER HSGL-100x55x404-779
40 4011000461 BOLT
41 29140006531 PIPE CLIP
42 29140006541 BIG CHAMBER TUBE OF TILT CYLINDER
43 29140006551 PRESS PLATE
44 29140006561 RUBBER PLATE
45 4041000586 PIPE LGB128-010145
46 4041000587 PIPE LGB128-010140
47 4041000187 JOINT
48 4041000771 O-RING
49 4120001153 LIFT CYLINDER HSGL-90x50x640-965
50 29130006521 TUBE
51 29130006531 TUBE
52 4030000242 O-RING GB3452. 1-12.5X1.80G
53 29130006541 TUBE
54 29130006551 TUBE
55 29130006561 TUBE
56 4041000702 PIPE LGB128-006075
57 4041000114 PIPE LGB128-006070
58 4041000699 PIPE LGB127-006075
59 29130006571 TUBE
60 29130006581 TUBE
61 4011000555 U-BOLT JB/ZQ4321-18Zn-Q235A>F
62 4013000028 NUT
63 4015000207 WASHER
64 4011000455 BOLT
65 29130009681 PIPE CLIP
66 29130006591 PIPE OF LIFT CYLINDER
67 4011000282 BOLT GB16674-M10x75EpZn-8.8
