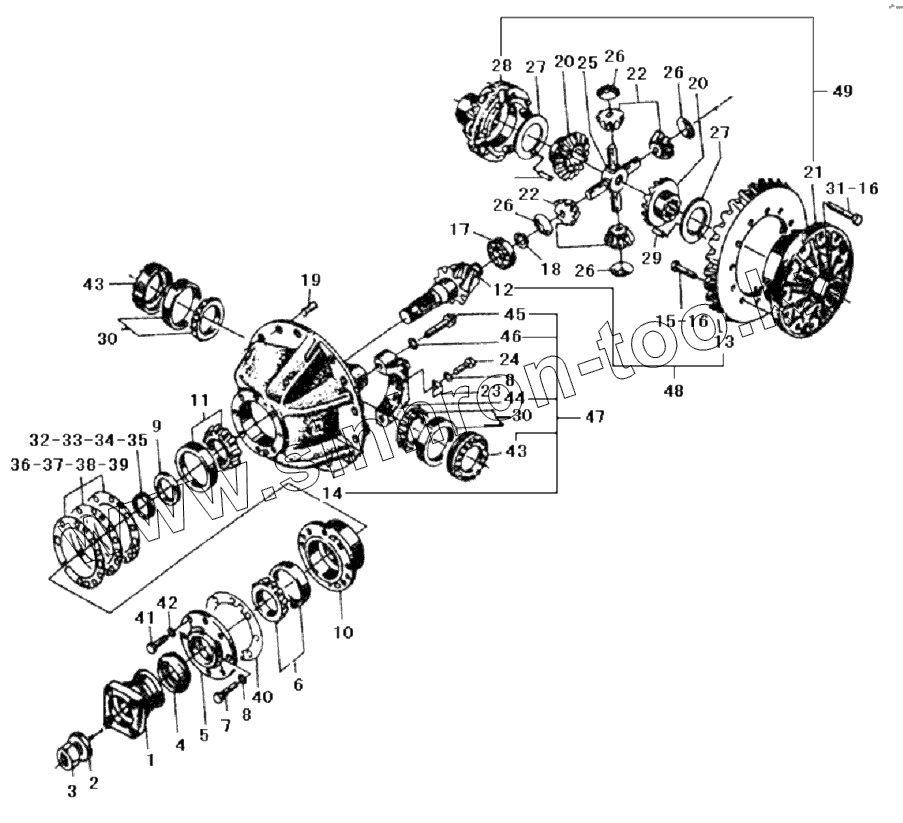

Каталог запасных частей к технике: SDLG LG918. REAR AXLE MAIN DRIVE ASSY
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
16
17
18
19
20
20
21
22
22
23
24
25
26
26
26
26
27
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
43
44
45
46
47
48
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29070010041 | INPUT PLANGE | |
| 2 | 29070010521 | WASER | |
| 3 | 4013000042 | BOLT GB6171-M24x2EpZn-8 | |
| 4 | 4030000537 | LIP-TYPE PACKING | |
| 5 | 29070010071 | SEALING COVER | |
| 6 | 4021000132 | BEARING GB297-31309 | |
| 7 | 4011000048 | BOLT | |
| 8 | 4015000025 | Washer | |
| 9 | 29070010081 | SHAFT SLEEVE | |
| 10 | 29070010091 | BEARING SEAT | |
| 11 | 4021000028 | BEARING | |
| 12 | 29090008011 | SPIRAL BEVEL GEAR PINION (RIGHT) | |
| 13 | 29090008031 | SPIRAL BEVEL GEAR SLAVE (LEFT) | |
| 14 | 29070010311 | BEARER | |
| 15 | 4011000599 | BOLT GB5786-M12x1.25x30EpZn-10.9 | |
| 16 | 29070010131 | WASHER | |
| 17 | 4021000133 | BEARING GB283-NUP2305 | |
| 18 | 4015000130 | RING SNAP | |
| 19 | 4016000124 | PIN | |
| 20 | 29070010141 | AXLE SHAFT GEAR | |
| 21 | 29070010151 | LEFT CASE DIFF | |
| 22 | 29070010161 | ANGEL GEAR | |
| 23 | 3050900024 | STAY | |
| 24 | 4011000597 | BOLT | |
| 25 | 29070010171 | CROSS AXLE | |
| 26 | 29070010181 | ANGEL GEAR WASHER | |
| 27 | 29070010191 | HALF AXLE GEAR WASHER | |
| 28 | 29070010201 | RIGHT CASE DIFF | |
| 29 | 29070010211 | FIXED PIN | |
| 30 | 4021000134 | BEARING GB297-32212 | |
| 31 | 4011000699 | BOLT GB5785-M12x1.25x50EpZn-10.9 | |
| 32 | 29070010221 | ADJUSTING SHIM | |
| 33 | 29070010231 | ADJUSTING SHIM | |
| 34 | 29070010241 | ADJUSTING SHIM | |
| 35 | 29070010251 | ADJUSTING SHIM | |
| 36 | 29070010261 | ADJUSTING SHIM | |
| 37 | 29070010271 | ADJUSTING SHIM | |
| 38 | 29070010281 | ADJUSTING SHIM | |
| 39 | 29070010291 | ADJUSTING SHIM | |
| 40 | 29070010301 | SEAL WASHER | |
| 41 | 4011000064 | BOLT GB5782-M12x50EpZn-8.8 | |
| 42 | 4015000026 | WASHER | |
| 43 | 29070010321 | ADJUSTING NUT | |
| 44 | 29070010331 | BEARING BLOCK | |
| 45 | 4011000231 | BOLT GB5782-M16x70EpZn-8.8 | |
| 46 | 29070009511 | WASHER | |
| 47 | 29070010121 | BEARER ASSEMBLY | |
| 48 | 2190900116 | REAR SPIRAL BEVEL GEAR PINION | |
| 49 | 2190900118 | CASE DIFF |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
