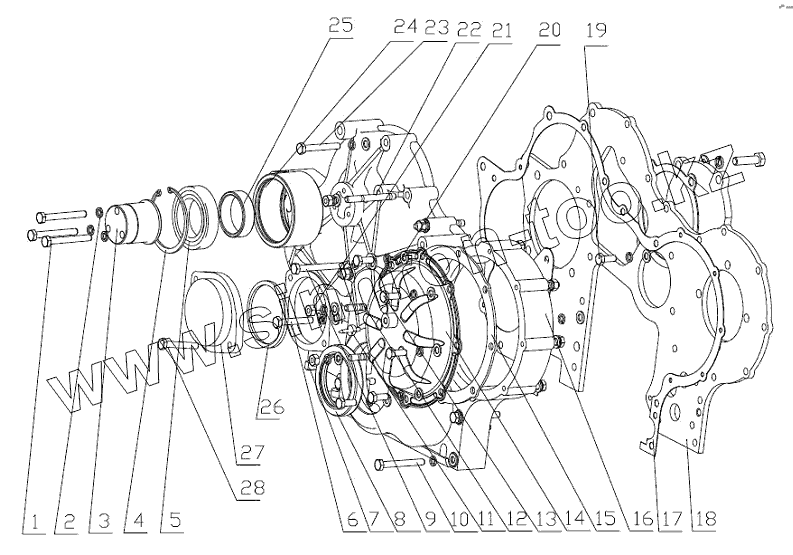

Каталог запасных частей к технике: SDLG LG918. GEAR HOUSING PARTS D30-1002030A/08
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4110000560265 | BOLT M8X65 Q150B0865TF2 | |
| 2 | 4110000560318 | LOCK WASHER 8 Q40308 | |
| 3 | 4110000560137 | MULTI-WEDGE IDLE GEAR SHAFT D30-1002213B | |
| 4 | 4110000560323 | RETAINING RING 80 Q43080 | |
| 5 | 4110000560223 | BALL BEARING 6010-2RS GB/T276-6010-2RS | |
| 6 | 4110000560261 | BOLT M8x50 Q150B0850 | |
| 7 | 4110000560077 | TABULAR PIN 6105Q-1600011 | |
| 8 | 4110000560342 | OIL SEAL 65X90 YC209-C065090PR | |
| 9 | 4110000560266 | BOLT M8X70 Q150B0870 | |
| 10 | 4110000560264 | BOLT M8X70 Q150B0865 | |
| 11 | 4110000560124 | TDC POINTER D30-1002037 | |
| 12 | 4110000560242 | STUD M8X16 Q1200816 | |
| 13 | 4110000560254 | BOLT M8X20 Q150B0820 | |
| 14 | 4110000560015 | INJECTION PUMP GEAR COVER PART 1D30-1002040 | |
| 15 | 4110000560123 | INJECTION PUMP GEAR COVER GASKET D30-1002036 | |
| 16 | 4110000560120 | TIMING GEAR HOUSING COVER D30-1002031C | |
| 17 | 4110000560122 | TIMING GEAR HOUSING COVER GASKET D30-1002034C | |
| 18 | 4110000560121 | GEAR HOUSING COVER PLATE D30-1002033D | |
| 19 | 4110000560256 | BOLT M8X22 Q150B0822 | |
| 20 | 4110000560297 | WASHER 8 Q40108 | |
| 21 | 4110000560291 | NUT M8 Q340B08 | |
| 22 | 4110000560248 | STUD M8X65 Q1200865 | |
| 23 | 4110000560263 | BOLT М8х55 Q150B0855 | |
| 24 | 4110000560135 | MULTI-CINCTURE IDLE GEAR D30-1002211B | |
| 25 | 4110000560136 | SPACER SLEEVE D30-1002212A | |
| 26 | 4110000560339 | O-RING 2.65X75 YC208-B07500F | |
| 27 | 4110000560125 | STEERING PUMP COVER D30-1002038 | |
| 28 | 4110000560271 | BOLT M10X25 Q150B1025 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
