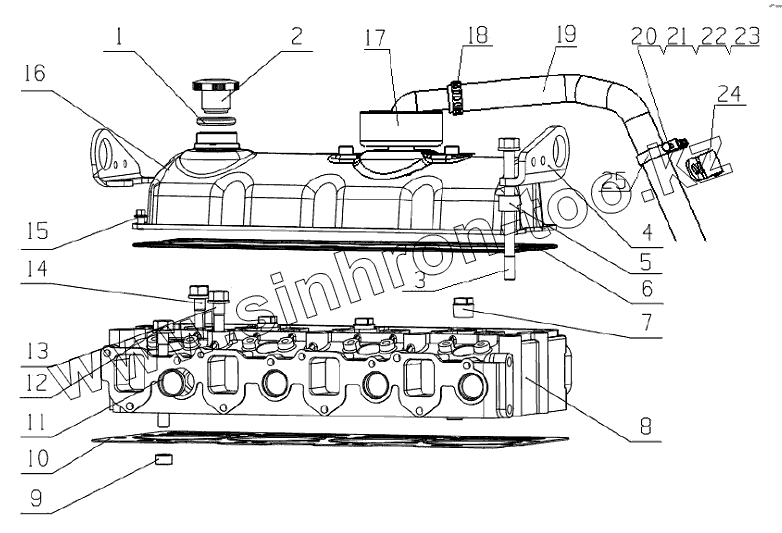

Каталог запасных частей к технике: SDLG LG918. CYLINDER HEAD ASSEMBLY D30-1003000B/08
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4110000560011 | SEAL RING 150-1003043C | |
| 2 | 4110000560010 | OIL FILLER CAP 150-1003041F | |
| 3 | 4110000560018 | CYLINDER HEAD BOLT 330-1003013B | |
| 4 | 4110000560057 | LIFTER 6105Q-1003085 | |
| 5 | 4110000560141 | WASHER D30-1003017 | |
| 6 | 4110000560143 | CYLINDER HEAD COVER GASKET D30-1003022C | |
| 7 | 4110000560329 | THREADED PLUG NPT3/4 Q614B06 | |
| 8 | 4110000560139 | CYLINDER HEAD D30-1003015B | |
| 9 | 4110000560079 | CYLINDER HEAD LOCATING PIN SLEEVE 6105QA-1003088 | |
| 10 | 4110000108009 | SHIM | |
| 11 | 4110000560056 | WATER JACKET PLUG 6105Q-1003081 | |
| 12 | 4110000560020 | CYLINDER HEAD BOLT 330-1003018B | |
| 13 | 4110000560019 | CYLINDER HEAD BOLT 330-1003014B | |
| 14 | 4110000560142 | CYLINDER HEAD BOLT D30-1003018 | |
| 15 | 4110000560282 | BOLT M8xl6 Q1840816 | |
| 16 | 4110000560114 | CYLINDER HEAD COVER WELDMENT D30-1003060C | |
| 17 | 4110000560111 | UPPER BREATHER PARTS D0300-1003260 | |
| 18 | 4110000560334 | HOOP 38 Q67638 | |
| 19 | 4110000560109 | VENTILATE HOSE D01D2-1014003A | |
| 20 | 4110000560252 | BOLT M6X20 Q150B0620 | |
| 21 | 4110000560296 | WASHER 6 Q40106 | |
| 22 | 4110000560303 | WASHER 6 Q40306 | |
| 23 | 4110000560290 | NUT 6 Q340B06 | |
| 24 | 4110000560014 | PIPE BRACKET 1530-1014021 | |
| 25 | 4110000560013 | CATCH HOOP 150-1014022 | |
| 26 | 4110000560140 | CYLINDER HEAD SUBASSEMBLY D30-1003015B |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
