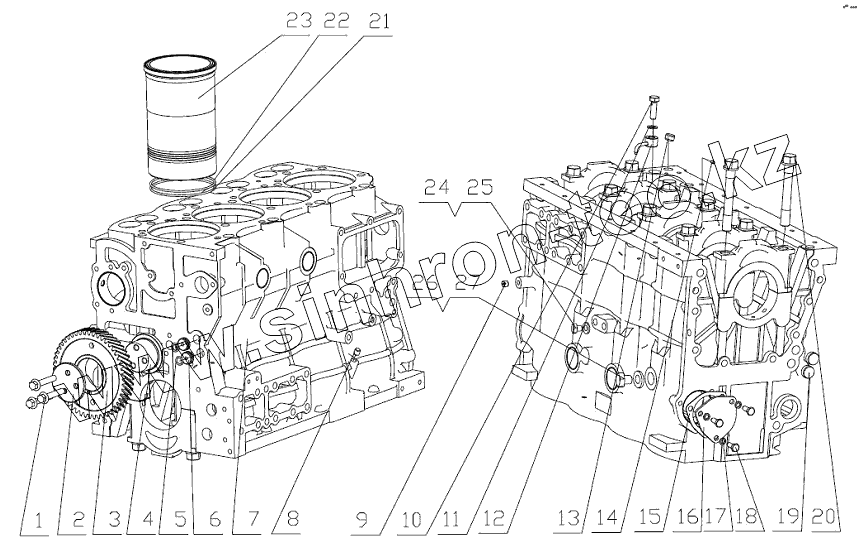

Каталог запасных частей к технике: SDLG LG918. CYLINDER BLOCK ASSEMBLY D7019-1002000/10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4110000560284 | BOLT М8х55 Q1840855TF2 | |
| 2 | 4110000560128 | TIMING IDLE GEAR PLATE D30-1002054 | |
| 3 | 4110000560126 | TIMING IDLE GEAR D30-1002051 | |
| 4 | 4110000560127 | IDLE GEAR SHAFT D30-1002052 | |
| 5 | 4110000560337 | O-RING 2.65X16 YC208-B01600F | |
| 6 | 4110000560054 | MAIN OIL GALLERY SEAL PLUG 6105Q-1002067 | |
| 7 | 4110000560119 | CYLINDER BLOCK PART D2000-1002170 | |
| 8 | 4110000560053 | ALUMINUM BLOCKAGE 6105Q-1002022 | |
| 9 | 4110000560328 | OPEN GROOVE TAPERED SCREW PLUG NPT1/8 Q61101 | |
| 10 | 4110000560027 | HOLLOW BOLT FOR OIL 430-1002162B | |
| 11 | 4110000560028 | WASHER 430-1002163 | |
| 12 | 4110000560138 | NOZZLE PARTS D30-1002740 | |
| 13 | 4110000560132 | OIL GALLERY BLOCKAGE D30-1002068A | |
| 14 | 4110000560344 | PIN 4X8 YC24-B0408 | |
| 15 | 4110000560130 | CAMSHAFT END COVER GASKET D30-1002062A | |
| 16 | 4110000560129 | CAMSHAFT END COVER D30-1002061 | |
| 17 | 4110000560317 | LOCK WASHER 8 Q40308 | |
| 18 | 4110000560254 | BOLT M8X20 Q150B0820 | |
| 19 | 4110000560055 | REAR MAIN OIL GALLERY PLUG 6105Q-1002069 | |
| 20 | 4110000560017 | MAIN BEARING COVER BOLT 330-10020212A | |
| 21 | 4110000560099 | CYLINDER LINER SEAL WATER RING A3000-1002063B | |
| 22 | 4110000560098 | CYLINDER LINER SEAL WATER RING A3000-1002063 | |
| 23 | 4110000560131 | CYLINDER LINER D30-1002064B | |
| 24 | 4110000560133 | HOLLOW BOLT FOR OIL D30-1002071 | |
| 25 | 4110000560300 | WASHER 12 Q40112T4F | |
| 26 | 4110000560036 | OIL RETURN BOLT 530-1002027 | |
| 27 | 4110000560230 | COMPOUND SEAL WASHER22 Q/YC149-22 | |
| 28 | 4110000560134 | CYLINDER BLOCK PART D30-1002114C |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
