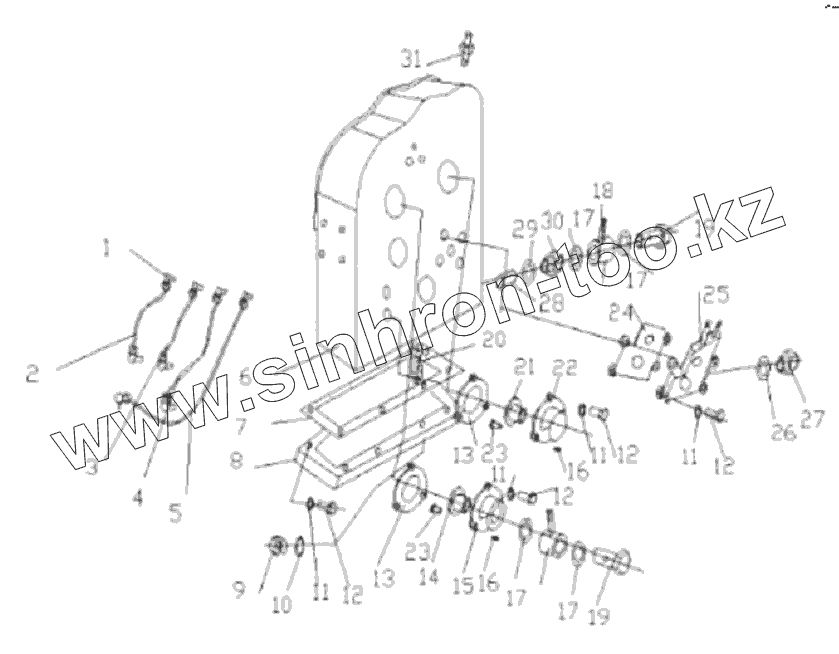

Каталог запасных частей к технике: SDLG LG918. CASE AND PIPELINE ACCESSORIES (370804)
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
12
12
12
13
13
14
15
16
16
17
17
17
17
18
19
19
20
21
22
23
23
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4110000218103 | BEND PIECE BD05-00024 | |
| 2 | 4110000218059 | PIPE BD05-08000 | |
| 3 | 4110000218060 | PIPE BD05-09000 | |
| 4 | 4110000218061 | PIPE BD05-10000 | |
| 5 | 4110000218062 | PIPE BD05-11000 | |
| 6 | 4110000218076 | SHELL BD05-00001 | |
| 7 | 4110000218033 | PAD BD05-00013 | |
| 8 | 4110000218031 | PLATE BD05-00012 | |
| 9 | 4110000218083 | PLUG SCREW 07044-12412 | |
| 10 | 4110000218006 | O-RING 07002-02434 | |
| 11 | 4110000011097 | WASHER 10 | |
| 12 | 4110000218086 | BOLT 01010-31025 M10x25 | |
| 13 | 4110000218037 | GASKET BD05-03004 | |
| 14 | 4110000218011 | BUSH BD05-03001 | |
| 15 | 4110000218052 | COVER BD05-03002 | |
| 16 | 4110000218082 | PLUG SCREW 07043-00108 | |
| 17 | 4015000091 | WASHER JB982-27 | |
| 18 | 4110000218070 | JOINT BD05N1-03000 | |
| 19 | 4110000218089 | BOLT ZL15B-00001 | |
| 20 | 4110000218051 | PLUG FOR CHECK UP 1305C-010 | |
| 21 | 4110000218012 | BUSH BD05-04002 | |
| 22 | 4110000218053 | COVER BD05-04001 | |
| 23 | 4110000218079 | SCREW BD05-03003 | |
| 24 | 4110000218034 | PAD BD05-00025 | |
| 25 | 4110000218010 | TRANSMISSION CONTRL VALVE ZL15G | |
| 26 | 4015000298 | SEALING WASHER JB982-18 | |
| 27 | 4110000218074 | JOINT STEERING DEVICE GB-4 | |
| 28 | 4110000218001 | OIL-FILTER BD05-13000 | |
| 29 | 4015000299 | SEALING WASHER JB982-48 | |
| 30 | 4110000218084 | PLUG SCREW BD05-00027 | |
| 31 | 4110000223018 | INSPIRATOR 1BD05N1-05000 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
