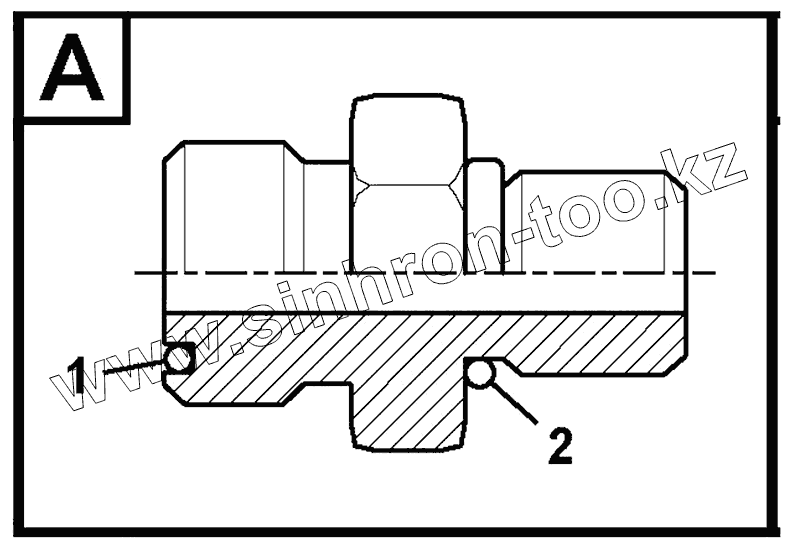

Каталог запасных частей к технике: SDLG LG6210E. Standard joint a
1
2
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 11212374 | Beak | |
| 2 | 11211903 | O-Ring | |
| 3 | 11212375 | O-Ring | |
| 4 | 11212376 | Beak | |
| 5 | 11212377 | O-Ring | |
| 6 | 11210008 | O-Ring | |
| 7 | 11212378 | Beak | |
| 8 | 11212377 | O-Ring | |
| 9 | 11212382 | Sealing ring | |
| 10 | 11212379 | Beak | |
| 11 | 11212381 | O-Ring | |
| 12 | 11212380 | O-Ring | |
| 13 | 11212384 | Beak | |
| 14 | 11212381 | O-Ring | |
| 15 | 11212383 | O-Ring | |
| 16 | 11212385 | Beak | |
| 17 | 11212381 | O-Ring | |
| 18 | 11210007 | O-Ring | |
| 19 | 11212386 | Beak | |
| 20 | 11212387 | O-Ring | |
| 21 | 11210006 | O-Ring | |
| 22 | 11212388 | Beak | |
| 23 | 11212387 | O-Ring | |
| 24 | 11210007 | O-Ring | |
| 25 | 11212389 | Beak | |
| 26 | 11212387 | O-Ring | |
| 27 | 11211982 | O-Ring | |
| 28 | 11212390 | Beak | |
| 29 | 11211903 | O-Ring | |
| 30 | 11210006 | O-Ring | |
| 31 | 11212391 | Beak | |
| 32 | 11211903 | O-Ring | |
| 33 | 11211982 | O Ring | |
| 34 | 11212392 | Beak | |
| 35 | 11211903 | O-Ring | |
| 36 | 11210008 | O-Ring | |
| 37 | 11212393 | Beak | |
| 38 | 11212377 | O Ring | |
| 39 | 11210007 | O-Ring | |
| 40 | 11212394 | Beak | |
| 41 | 11212377 | O Ring | |
| 42 | 11211982 | O-Ring | |
| 43 | 11212395 | Beak | |
| 44 | 11212396 | O-Ring | |
| 45 | 11210007 | O-Ring | |
| 46 | 11212449 | Beak | |
| 47 | 11210007 | O-Ring | |
| 48 | 11211982 | O-Ring | |
| 49 | 11212450 | Beak | |
| 50 | 11210007 | O-Ring | |
| 51 | 11210009 | O-Ring | |
| 52 | 11212451 | Beak | |
| 53 | 11210114 | O-Ring | |
| 54 | 11210009 | O-Ring | |
| 55 | 11212452 | Beak | |
| 56 | 11210114 | O-Ring | |
| 57 | 11210008 | O-Ring | |
| 58 | 11212453 | Beak | |
| 59 | 11210114 | O-Ring | |
| 60 | 11212448 | Sealing ring | |
| 61 | 11212454 | Beak | |
| 62 | 11210114 | O-Ring | |
| 63 | 11212448 | Sealing ring | |
| 64 | 11212455 | Beak | |
| 65 | 11212381 | O-Ring | |
| 66 | 11212457 | O-Ring | |
| 67 | 11212456 | Beak | |
| 68 | 11212381 | O-Ring | |
| 69 | 11210006 | O-Ring | |
| 70 | 11212458 | Beak | |
| 71 | 11211903 | O-Ring | |
| 72 | 11210008 | O-Ring | |
| 73 | 11212459 | Beak | |
| 74 | 11211903 | O-Ring | |
| 75 | 11210009 | O-Ring | |
| 76 | 11212460 | Beak | |
| 77 | 11212396 | O-Ring | |
| 78 | 11210009 | O-Ring | |
| 79 | 11212461 | Beak | |
| 80 | 11212396 | O-Ring | |
| 81 | 11210009 | O-Ring | |
| 82 | 11212462 | Beak | |
| 83 | 11210114 | O-Ring | |
| 84 | 11210009 | O-Ring | |
| 85 | 11212463 | Beak | |
| 86 | 11212387 | O-Ring | |
| 87 | 11210006 | O-Ring | |
| 88 | 11212464 | Beak | |
| 89 | 11212387 | O-Ring | |
| 90 | 11212457 | O-Ring | |
| 91 | 11212465 | Beak | |
| 92 | 11212381 | O-Ring | |
| 93 | 11210006 | O-Ring | |
| 94 | 11212466 | Beak | |
| 95 | 11212387 | O-Ring | |
| 96 | 11210006 | O-Ring | |
| 97 | 11212467 | Beak | |
| 98 | 11212387 | O-Ring | |
| 99 | 11210006 | O-Ring | |
| 100 | 11212468 | Beak | |
| 101 | 11211903 | O-Ring | |
| 102 | 11210007 | O-Ring | |
| 103 | 11212469 | Beak | |
| 104 | 11212381 | O-Ring | |
| 105 | 11210006 | O-Ring | |
| 106 | 11212470 | Beak | |
| 107 | 11212396 | O-Ring | |
| 108 | 11210008 | O-Ring | |
| 109 | 11212472 | Beak | |
| 110 | 11212473 | O-Ring | |
| 111 | 11212471 | O-Ring | |
| 112 | 11212475 | Beak | |
| 113 | 11211903 | O-Ring | |
| 114 | 11210007 | O-Ring | |
| 115 | 11212476 | Beak | |
| 116 | 11212381 | O-Ring | |
| 117 | 11212474 | Sealing ring | |
| 118 | 11212477 | Beak | |
| 119 | 11212381 | O-Ring | |
| 120 | 11210006 | O-Ring | |
| 121 | 11212479 | Beak | |
| 122 | 11212396 | O-Ring | |
| 123 | 11210009 | O-Ring | |
| 124 | 11212480 | Beak | |
| 125 | 11212396 | O-Ring | |
| 126 | 11210009 | O-Ring | |
| 127 | 11212481 | Beak | |
| 128 | 11211903 | O-Ring | |
| 129 | 11211982 | O-Ring | |
| 130 | 11212478 | Beak | |
| 131 | 11212387 | O-Ring | |
| 132 | 11212483 | Sealing ring | |
| 155 | 11212377 | O-Ring | |
| 156 | 11212494 | Sealing ring | |
| 157 | 11212493 | Beak | |
| 158 | 11212387 | O-Ring | |
| 159 | 11212498 | Sealing ring | |
| 160 | 11212495 | Beak | |
| 161 | 11212396 | O-Ring | |
| 162 | 11212497 | O-Ring | |
| 163 | 11212496 | Beak | |
| 164 | 11212377 | O-Ring | |
| 165 | 11212488 | Sealing ring | |
| 166 | 11212499 | Beak | |
| 167 | 11212387 | O-Ring | |
| 168 | 11212474 | Sealing ring | |
| 169 | 11212500 | Beak | |
| 170 | 11211903 | O-Ring | |
| 171 | 11210007 | O-Ring | |
| 172 | 11212501 | Beak | |
| 173 | 11212396 | O-Ring | |
| 174 | 11212488 | Sealing ring | |
| 175 | 11212502 | Beak | |
| 176 | 11212381 | O-Ring | |
| 177 | 11212498 | Sealing ring | |
| 178 | 11212503 | Beak | |
| 179 | 11212396 | O-Ring | |
| 180 | 11210133 | O-Ring | |
| 181 | 11212520 | Connector | |
| 182 | 11210114 | O-Ring | |
| 183 | 11212448 | Sealing ring | |
| 184 | 11212521 | Connector | |
| 185 | 11212381 | O-Ring | |
| 186 | 11210006 | O-Ring | |
| 187 | 11212522 | Connector | |
| 188 | 11212387 | O-Ring | |
| 189 | 11210006 | O-Ring | |
| 190 | 11212523 | Beak | |
| 191 | 11211903 | O-Ring | |
| 192 | 11210006 | O-Ring | |
| 193 | 11212524 | Connector | |
| 194 | 11212381 | O-Ring | |
| 195 | 11210006 | O-Ring | |
| 196 | 11212525 | Connector | |
| 197 | 11212387 | O-Ring | |
| 198 | 11210006 | O-Ring | |
| 199 | 11212526 | Connector | |
| 200 | 11212381 | O-Ring | |
| 201 | 11210133 | O-Ring | |
| 202 | 11212527 | Beak | |
| 203 | 11211903 | O-Ring | |
| 204 | 11210007 | O-Ring | |
| 205 | 11212528 | Connector | |
| 206 | 11211903 | O-Ring | |
| 207 | 11210135 | O-Ring | |
| 208 | 11212529 | Beak | |
| 209 | 11212381 | O-Ring | |
| 210 | 11210006 | O-Ring | |
| 211 | 11212530 | Beak | |
| 212 | 11212381 | O-Ring | |
| 213 | 11210006 | O-Ring | |
| 214 | 11212531 | Connector | |
| 215 | 11212381 | O-Ring | |
| 216 | 11210133 | O-Ring | |
| 217 | 11212532 | Connector | |
| 218 | 11212381 | O-Ring | |
| 219 | 11210133 | O-Ring | |
| 220 | 11212533 | Connector | |
| 221 | 11211903 | O-Ring | |
| 222 | 11212505 | O-Ring | |
| 223 | 11212534 | Connector | |
| 224 | 11212381 | O-Ring | |
| 225 | 11210133 | O-Ring | |
| 226 | 11212535 | Connector | |
| 227 | 11212381 | O-Ring | |
| 228 | 11212504 | Sealing ring | |
| 229 | 11212536 | Connector | |
| 230 | 11212381 | O-Ring | |
| 231 | 11212504 | Sealing ring | |
| 232 | 11212539 | Beak | |
| 233 | 11212381 | O-Ring | |
| 234 | 11210006 | O-Ring | |
| 235 | 11212540 | Beak | |
| 236 | 11212381 | O-Ring | |
| 237 | 11212506 | O-Ring | |
| 238 | 11212541 | Beak | |
| 239 | 11212381 | O-Ring | |
| 240 | 11212506 | O-Ring | |
| 241 | 11212542 | Beak | |
| 242 | 11212387 | O-Ring | |
| 243 | 11210007 | O-Ring | |
| 244 | 11212543 | Beak | |
| 245 | 11212381 | O-Ring | |
| 246 | 11210006 | O-Ring | |
| 247 | 11212544 | Beak | |
| 248 | 11212396 | O-Ring | |
| 249 | 11212382 | Sealing ring | |
| 250 | 11212545 | Beak | |
| 251 | 11212381 | O-Ring | |
| 252 | 11212383 | O-Ring | |
| 253 | 11212546 | Beak | |
| 254 | 11212396 | O-Ring | |
| 255 | 11210007 | O-Ring | |
| 256 | 11212547 | Beak | |
| 257 | 11211903 | O-Ring | |
| 258 | 11210007 | O-Ring | |
| 259 | 11212548 | Beak | |
| 260 | 11212387 | O-Ring | |
| 261 | 11210006 | O-Ring | |
| 262 | 11212549 | Beak | |
| 263 | 11212381 | O-Ring | |
| 264 | 11210006 | O-Ring | |
| 265 | 11212550 | Beak | |
| 266 | 11212396 | O-Ring | |
| 267 | 11210007 | O-Ring | |
| 268 | 11212551 | Beak | |
| 269 | 11212396 | O-Ring | |
| 270 | 11211982 | O-Ring | |
| 271 | 11212552 | Beak | |
| 272 | 11212396 | O-Ring | |
| 273 | 11210007 | O-Ring | |
| 274 | 11212553 | Beak | |
| 275 | 11212381 | O-Ring | |
| 276 | 11212383 | O-Ring | |
| 277 | 11212554 | Beak | |
| 278 | 11212387 | O-Ring | |
| 279 | 11210006 | O-Ring | |
| 280 | 11212555 | Beak | |
| 281 | 11212381 | O-Ring | |
| 282 | 11212383 | O-Ring | |
| 283 | 11212556 | Beak | |
| 284 | 11212387 | O-Ring | |
| 285 | 11210006 | O-Ring | |
| 286 | 11212557 | Beak | |
| 287 | 11212377 | O-Ring | |
| 288 | 11212519 | Test nozzle | |
| 289 | 11212558 | Beak | |
| 290 | 11212377 | O-Ring | |
| 291 | 11212519 | Test nozzle | |
| 292 | 11212559 | Beak | |
| 293 | 11210114 | O-Ring | |
| 294 | 11210009 | O-Ring | |
| 295 | 11212560 | Beak | |
| 296 | 11212396 | O-Ring | |
| 297 | 11210008 | O-Ring | |
| 298 | 11212561 | Beak | |
| 299 | 11211903 | O-Ring | |
| 300 | 11210007 | O-Ring | |
| 301 | 11212566 | Beak | |
| 302 | 11212381 | O-Ring | |
| 303 | 11212383 | O-Ring | |
| 304 | 11212567 | Beak | |
| 305 | 11212387 | O-Ring | |
| 306 | 11210007 | O-Ring | |
| 307 | 11212568 | Beak | |
| 308 | 11210114 | O-Ring | |
| 309 | 11210009 | O-Ring | |
| 310 | 11212569 | Beak | |
| 311 | 11210114 | O-Ring | |
| 312 | 11210008 | O-Ring | |
| 313 | 11212570 | Beak | |
| 314 | 11212381 | O-Ring | |
| 315 | 11210006 | O-Ring | |
| 316 | 11212571 | Beak | |
| 317 | 11210114 | O-Ring | |
| 318 | 11210009 | O-Ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
