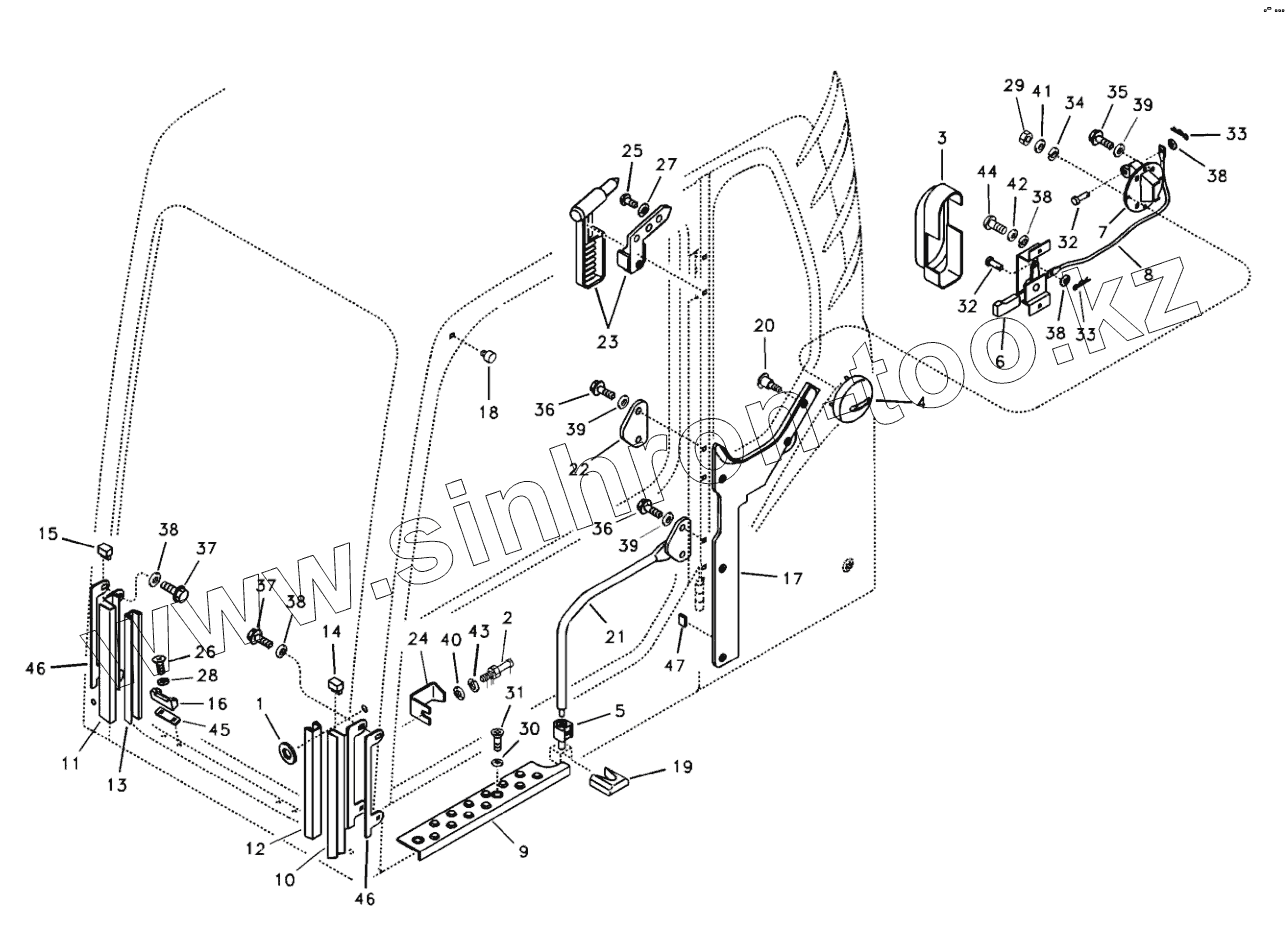

Каталог запасных частей к технике: SDLG LG6210E. Operator's cabin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
33
34
35
36
36
37
37
38
38
38
38
38
39
39
39
40
41
42
43
44
45
46
46
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 11210538 | Washer | |
| 2 | 11214648 | Finishing plate | |
| 3 | 11211211 | Cover | |
| 4 | 11210303 | Cover | |
| 5 | 11210547 | Rubber block | |
| 6 | 11211347 | Control lever | |
| 7 | 11210302 | Tongue | |
| 8 | 11210304 | Cable | |
| 9 | 11214598 | Anti-slip protection | |
| 10 | 11211164 | Guide | |
| 11 | 11211165 | Guide | |
| 12 | 11210511 | Waterproof | |
| 13 | 11210512 | Waterproof | |
| 14 | 11210513 | Plug | |
| 15 | 11210514 | Plug | |
| 16 | 11210642 | Rubber block | |
| 17 | 11214649 | Cabin finish | |
| 18 | 11210326 | Bumper | |
| 19 | 11210548 | Bumper | |
| 20 | 11210412 | Clip | |
| 21 | 11211192 | Handle | |
| 22 | 11211193 | Support | |
| 23 | 11210534 | Hammer | |
| 24 | 11211222 | Finishing plate | |
| 25 | 11214650 | Screw | |
| 26 | 11211624 | Cross recessed Bolt | |
| 27 | 11211040 | Washer | |
| 28 | 11211041 | Washer | |
| 29 | 11211038 | Nut | |
| 30 | 11211042 | Washer | |
| 31 | 11210094 | Hex bolt | |
| 32 | 11211044 | Pin | |
| 33 | 11211054 | Split Pine | |
| 34 | 11210024 | Washer | |
| 35 | 11210118 | Hex bolt | |
| 36 | 11210037 | Flange Bolt | |
| 37 | 11210082 | Six point socket screw | |
| 38 | 11210057 | Washer | |
| 39 | 11210058 | Washer | |
| 40 | 11210059 | Washer | |
| 41 | 11210061 | Spring washer | |
| 42 | 11210062 | Spring washer | |
| 43 | 11210065 | Spring washer | |
| 44 | 11210088 | Six point socket screw | |
| 45 | 11210492 | Shim | |
| 46 | 11210491 | Armotecer | |
| 47 | 11210660 | Sponge |
