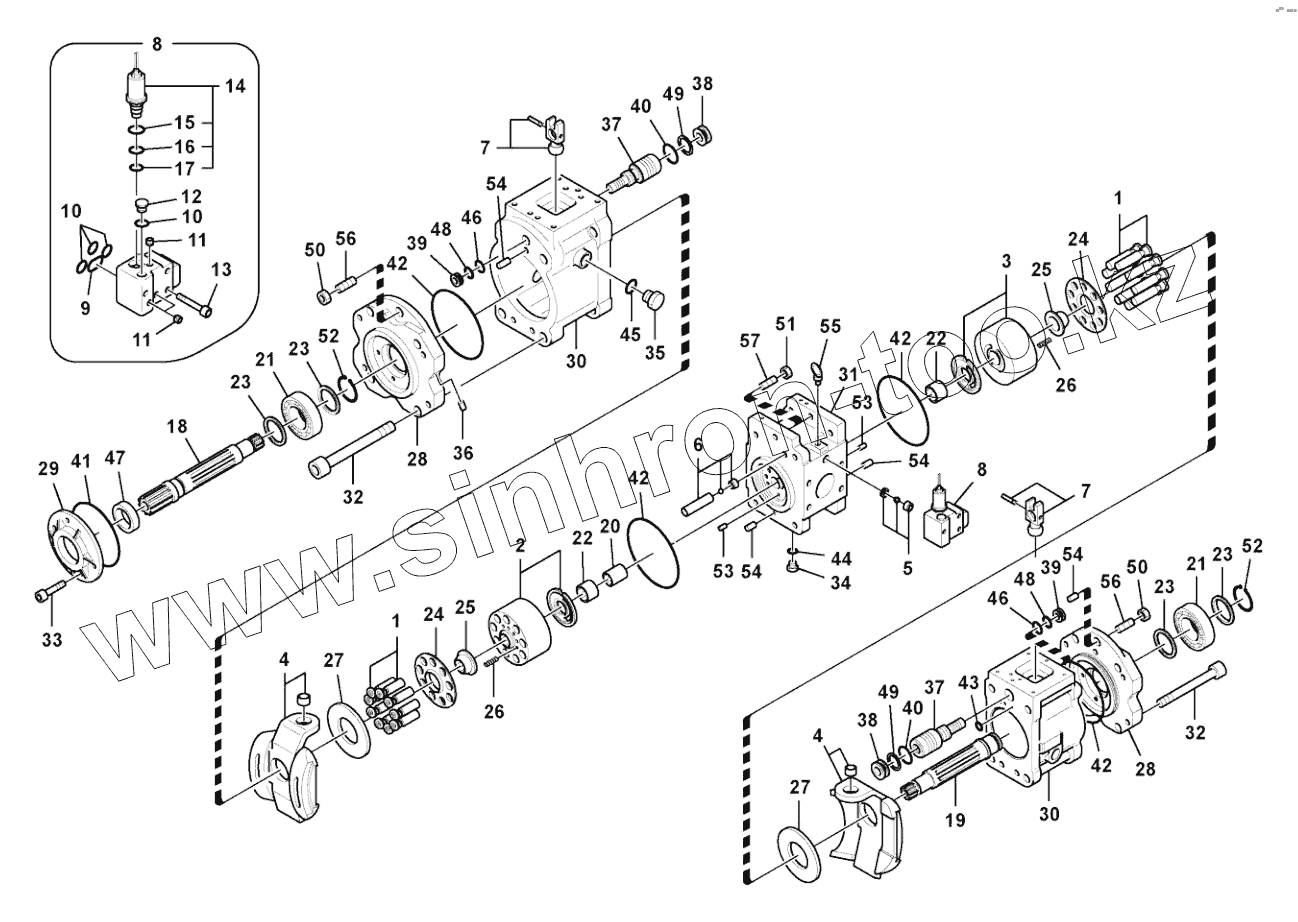

Каталог запасных частей к технике: SDLG LG6210E. Hydraulic pump
1
1
2
3
4
4
5
6
7
7
8
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
21
22
22
23
23
23
23
24
24
25
25
26
26
27
27
28
28
29
30
30
31
32
32
33
34
35
36
37
37
38
38
39
39
40
40
41
42
42
42
42
43
44
45
46
46
47
48
48
49
49
50
50
51
52
52
53
53
54
54
54
54
55
56
56
57
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 11210998 | Piston | |
| 2 | 11210818 | Cylinder | |
| 3 | 11210819 | Cylinder | |
| 4 | 11211494 | Card | |
| 5 | 11211413 | Valve | |
| 6 | 11211414 | Valve | |
| 7 | 11211493 | Pin | |
| 8 | kongbai | Kongbai | |
| 9 | 11210708 | O-Ring | |
| 10 | 11210706 | O-Ring | |
| 11 | 11210873 | Plug | |
| 12 | 11211697 | Plug | |
| 13 | 11211550 | HEX socket screw | |
| 14 | 11210894 | Valve | |
| 15 | 11210164 | O-Ring | |
| 16 | 11211903 | O-Ring | |
| 17 | 11211904 | O-Ring | |
| 18 | 11211486 | Main shaft | |
| 19 | 11211485 | Axis | |
| 20 | 11211489 | Connector | |
| 21 | 11210729 | Bearing | |
| 22 | 11210730 | Bearing | |
| 23 | 11211497 | Spacer | |
| 24 | 11210776 | Card | |
| 25 | 11210731 | Bushing | |
| 26 | 11211492 | Spring | |
| 27 | 11211538 | Card | |
| 28 | 11211483 | Support | |
| 29 | 11211487 | End cap | |
| 30 | 11210775 | Housing | |
| 31 | 11211484 | Valve block | |
| 32 | 11211490 | HEX socket screw | |
| 33 | 11210080 | HEX socket screw | |
| 34 | 11211697 | Plug | |
| 35 | 11211701 | Plug | |
| 36 | 11210873 | Plug | |
| 37 | 11210772 | Piston | |
| 38 | 11210997 | Card | |
| 39 | 11211488 | Rubber ring | |
| 40 | 11210171 | O-Ring | |
| 41 | 11210732 | O-Ring | |
| 42 | 11210733 | O-Ring | |
| 43 | 11210704 | O-Ring | |
| 44 | 11210706 | O-Ring | |
| 45 | 11210712 | O-Ring | |
| 46 | 11210709 | O-Ring | |
| 47 | 11210996 | Seal | |
| 48 | 11211787 | Ring | |
| 49 | 11211793 | Ring | |
| 50 | 11211544 | Nut | |
| 51 | 11210110 | Hex nut | |
| 52 | 11211902 | Retaining ring | |
| 53 | 11211557 | Pin | |
| 54 | 11211415 | Spring pin | |
| 55 | 11211541 | Screw eye | |
| 56 | 11211559 | Screw | |
| 57 | 11211491 | Screw | |
| 58 | 11210844 | Sealing Kit | |
| 59 | 11211286 | Pump |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
