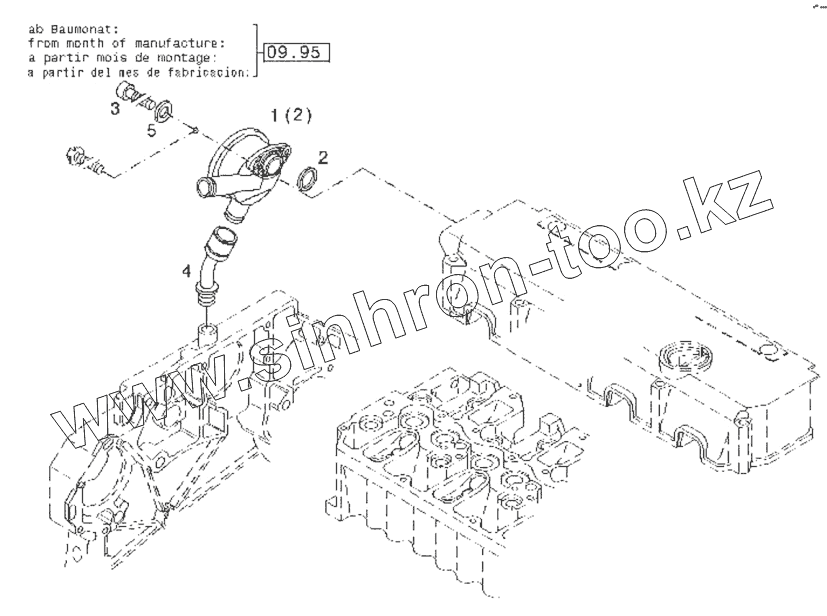

Каталог запасных частей к технике: SDLG LG6210E. Crankcase breather

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано B877 (2013) B877 (2017) G9138 (2020) G9190 (2013) L916 (2017) L938F (2016) L948 (2016) L948F (2015) L953N (2017) L956F (2017) L958F (2019) LG6150E LG6210E (2013) LG918 (2008) LG918 (2009) LG933 (2008) LG933 (2018) LG933L (2011) LG936 (2007) LG936 (2007) LG936L (2009) LG936L (2013) LG936L (2017) LG938 (2006) LG938 (2010) LG938F (2015) LG938L (2010) LG944MSK (2015) LG946L (2010) LG952 (2007) LG952 (2009) LG952H (2009) LG952H (2012) LG952N (2016) LG953 (2006) LG953 (2008) LG953 (2009) LG953N (2015) LG955N (2015) LG956 (2005) LG956F (2016) LG956FH (2017) LG956L (2009) LG956L (2015) LG956V (2015) LG958 (2006) LG958L (2009) LG958L (2012) LG958N (2013) LG958N (2015) LG968 (2007) LG968 (2009) LG969 (2007) LG969 (2009) LG969N (2015) LGB680 (2007)

Схема > Не выбрано Engine Engine mounting Fuel tank with Hitch parts Fuel supply pump with assembly details Fuel pipe-fuel tank Water separator Exhaust system Intake system Intercooler, pipe Cooling system Radiador Cooling fan assembly Crankshaft Connecting rod Cross reference list Valve control Fastener Actuator Bushing Impulse transmitter Accessories Temperature transmitter Roller Tucho High pressure pipe Rubber seal Control rod Piston cooling nozzle Fuel injection pump Fastener Drive shaft Fastener Crankcase Fuel injector Fasteners Head Lock parts Lock parts Lubricating oil line Exhaust pipe Turbocharger Lubricating oil line Fasteners Locking parts Charge air elbow Charge air tube Fasteners Crankcase breather Collector Breather line Hose clip Oil collector Oil suction tube Fasteners Front cover oil pump Dipstick Oil gauge Fasteners Loofah Connection housing Steering wheel Fasteners Fan support Exhaust / outlet bypass Thermostat Connection V-grooved pulley Accessories Generator Fan control Fuel pump V-riveted pulley Fasteners Riveted V belt Belt control Belt tensioner Fasteners Fan support Accessories Accessories Locking parts Locking parts Locking parts Gear box Plug Mechanical valve cover Fasteners Fasteners Locking parts Oil cooler Oil cooler box Locking parts Lubricating oil filter Locking parts Empty connection. rear. Non-return valve Locking parts Fuel line Fuel line Fuel filter Conjugated piece Tow hitch Starter Fasteners Control unit Pressure sensor Cover Locking parts Protection plate Cable wiring harness Cable wiring harness Locking parts Relay Tacogenerator Pressure sensor Locking parts Guide tube Heating flange Battery with mounting details Key system Lighting, front Operational lamp on the boom Horn Windshield washer Switch Switch Electronic unit Cables, battery Wiring harness cable, main Cable wiring harness, motor Wiring harness cable, instrument panel Cable wiring harness, cab Electric relay Electrical sensor Instrument panel, warning unit and information unit Radiocassette recorder with mounting details Telematics Shift gearbox Rotating gearbox Gearbox with mounting parts Displacement motor with mounting parts Displacement motor Rotating motor with mounting parts Rotating motor Swivel joint Oscillation system Protective plate Protective plate for displacement motor Counterweight Conveyor belt Track guards, under carriage Bottom carriage, spring pack Front guide wheel Upper roller Lower roller Cogwheel Step Cabin mounting Operator's cabin Operator's cabin Operator's cabin Operator's cabin Roof structure Cover, cover and hood structure Door, side Door, side Cover, control valve Cover, main pump Handrail Toolbox, cover Door, operator's cabin Cabin floor Hatches under the engine, hydraulic pumps, cooler, valve m and fuel tank Rear view mirror Rear view mirror Windows Windshield Operator's seat with insert parts Interior of the solar display Parasols Air conditioning, cooler and heater tubing Cabin air duct and cabin floor Air conditioning unit, cooler and heater Instrument panel, control panel Instrument panel, radio panel Non-slip Tools Sticker Stickers, cabin Hydraulic oil tank Swivel joint line, swivel joint control valve Swivel joint line, swivel joint with displacement motor Hydraulic system, boom and swing control valve Hydraulic system, hydraulic tank for hydraulic oil cooler Hydraulic system, hydraulic tank for hydraulic pump Control valve with fitting parts Main control valve, relief valve and boom support Main control valve, boom and bucket and right shift Main control valve, swivel and optional and arm and left shift Main control valve, relief valve and arm support Pump installation Hydraulic pump Regulator, hydraulic pump Hydraulic gear pump Servo system, control valve to remote control valve Servo system, control valve to the remote control valve pedal Servo system, control valve to solenoid valve Servo system, control valve tubing Servo system, pump tubing and filter assembly Remote control valve pedal with plug-in parts Remote control valve pedal, displacement motor Servo system, remote control valve Servo system, hammer and scissors Servo system, hammer and scissors Working hydraulics, boom cylinder on boom Working hydraulics, boom cylinder Working hydraulics, bucket cylinder on arm Bucket assembly Articulations with the bucket Articulations with the boom Lance and lubrication tubing Boom cylinder Arm joints Lubricating arm and tubing with tubing seat Arm cylinder Joints with connecting rod Bucket cylinder Standard joint a Joint type b Type c joint Type d joint Standard joint e Type f joint G-type gasket Type h joint Type I joint Type J joint K-type gasket Type l joint Type m joint Type n joint

1

2

2

3

4

5

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4110000509343		Oil collector
2	4110000988044		Gasket
3	4110000727172		Cheese head screw
4	4110000509168		Rubber sleeve
5	4110000509166		Plain washer

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
