Каталог запасных частей к технике: SDLG LG6150E. 11213481 Exhaust pipe

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано B877 (2013) B877 (2017) G9138 (2020) G9190 (2013) L916 (2017) L938F (2016) L948 (2016) L948F (2015) L953N (2017) L956F (2017) L958F (2019) LG6150E LG6210E (2013) LG918 (2008) LG918 (2009) LG933 (2008) LG933 (2018) LG933L (2011) LG936 (2007) LG936 (2007) LG936L (2009) LG936L (2013) LG936L (2017) LG938 (2006) LG938 (2010) LG938F (2015) LG938L (2010) LG944MSK (2015) LG946L (2010) LG952 (2007) LG952 (2009) LG952H (2009) LG952H (2012) LG952N (2016) LG953 (2006) LG953 (2008) LG953 (2009) LG953N (2015) LG955N (2015) LG956 (2005) LG956F (2016) LG956FH (2017) LG956L (2009) LG956L (2015) LG956V (2015) LG958 (2006) LG958L (2009) LG958L (2012) LG958N (2013) LG958N (2015) LG968 (2007) LG968 (2009) LG969 (2007) LG969 (2009) LG969N (2015) LGB680 (2007)

Схема > Не выбрано 11213481 Engine 11212924 Engine mounting 11212924, 11211826 Fuel tank with fitting parts 11213478 Fuel filling pump with assembling details 11212924 Fuel pipe - Fuel tank 11213480 Water separator 11212924 Exhaust system 11212924 Inlet system 11212924 Cooling system 11213470 Radiator 11213470 Cooling fan mounting 11213481 Valve drive 11213481 Connecting rod 11213481 Crankshaft 11213481 Cross refer. list 11213481 Fastenings 11213481 Actuator 11213481 Crankcase 11213481 Blanking parts 11213481 Blanking parts 11213481 Piston cool.nozzle 11213481 Control rod 11213481 High pressure pipe 11213481 Fastenings 11213481 Camshaft 11213481 Roller tappet 11213481 Fastenings 11213481 Fuel inject. pump 11213481 Fastenings 11213481 Fuel injector 11213481 Cylinder head 11213481 Blanking parts 11213481 Blanking parts 11213481 Exhaust pipe 11213481 Return line 11213481 Lubricat. oil line 11213481 Fastenings 11213481 Heating flange 11213481 Charge air pipe 11213481 Blanking parts 11213481 Crankcase breather 11213481 Manifold 11213481 Breather line 11213481 Hose clip 11213481 Lubricat. oil pump 11213481 Fastenings 11213481 Suction pipe 11213481 Oil pan 11213481 Hose connector 11213481 Oil gauge 11213481 Dipstick 11213481 Guide tube 11213481 Fastenings 11213481 Connection housing 11213481 Flywheel 11213481 Fastenings 11213481 Fan bracket 11213481 Outlet/exh. branch 11213481 Blanking parts 11213481 V-grooved pulley 11213481 Generator 11213481 Accessories 11213481 Fastenings 11213481 Fastenings 11213481 V-rib.belt pulley 11213481 Fuel supply pump 11213481 Belt tensioner 11213481 Fastenings 11213481 Fan support 11213481 Fastenings 11213481 Accessories 11213481 Accessories 11213481 Blanking parts 11213481 Blanking parts 11213481 Gearcase 11213481 Plug 11213481 Valve mechan.cover 11213481 Rubber seal 11213481 Blanking parts 11213481 Oil cooler box 11213481 Blanking parts 11213481 Connecting parts 11213481 Fuel filter assy 11213481 Support 11213481 Fuel line 11213481 Fuel line 11213481 Mating part 11213481 Fuel line 11213481 Engine mounting 11213481 Starter 11213481 Fastenings 11213481 Pilot line 11213481 Accessories 11213481 Cable harness 11213481 Interconnect.cable 11213481 Control unit 11213481 Relay 11213481 Blanking parts 11213481 Oil press.monitor 11213481 Speed monit.system 11213481 Impulse transmitter 11213481 Temper.transmitter 11212924 Battery with assembling details 11211826 Key system 11212924 Lighting, front 11213370 Working lamp on boom 11212924 Horn 11212924 Windshield washer 11212924 Electrical relay 11212924, 11213477 Switch 11212924 Electronic unit. 11212924 Cables, battery 11212924 Cable and wire harness, main 11212924 Cable harness, engine 11212924 Cable and wire harness, instrument panel 11211823 Cable harnesses, cab 11212924 Electrical relay 11212924 Electrical sensor 11212924 Instrument panel, warning unit and information unit 11213483 Cassette radio recorder with mounting details 11213483 Telematics 11212937 Travel gearbox 11212924 Swing gearbox 11212924 Pump gearbox with assembling parts 11212937 Travel motor with mounting parts 11212937 Travel motor 11212937 Control valve, travel motor 11212924 Swing motor with mounting parts 11212924 Swing motor 11212937 Turning joint, mounting 11212937 Turning joint 11212924 Swing system 8277923 Protecting plate 8277950 Protective plate for travel motor 8288668 Counterweights 8277935 Foot step 8282963 Track chain 8277950 Undercarriage, track guards 8277950 Undercarriage, spring package 8277950 Front idler 8277950 Top roller 8277950 Bottom roller 8277950 Sprocket 11211823 Cab mount 11211823 Operator's cab 11211823 Operator's cab 11211823 Operator's cab 11211823 Operator's cab 11212924 Cowl frame 11212924 Cowl frame, cover and hood 11213485, 11212924 Door, side 11212924 Cover, control valve 11212924 Cover, main pump 11212924 Handrail 11212924 Tool box, cowl 11211823 Door, operator's cab 11212924 Cabin floor 1213472 Hatches under engine, hydr.pumps, cooler, m.valve and fuel tank 11212924 Rear view mirror 11212924 Rear view mirror 11211823 Windows 11211823 Windshield 11211824 Operator seat with fitting parts 11211827 Sun visor interior 11211838 Sun visor 11213471 Air conditioning line, cooling and heater 11213471 Air duct in cabin and cabin floor 11213471 Air conditioning unit, cooling and heater 11212924 Instrument panel, control panel 11212924 Instrument panel, radio panel 11212924 Anti slip 11213476 Tools 11213479 Decals 11213484 Decals, cab 11212924 Hydraulic oil tank 11212924 Turning jo int line, control valve to turning joint 11212937 Turning jo int line, turning joint to travel motor 11212924 Hydraulic system, control valve to boom and swing 11212924 Hydraulic system, hydraulic tank to hydraulic oil cooler 11212924 Hydraulic system, hydraulic tank to hydraulic pump 11212989 Control valve with fitting parts 11212989 Main control valve, relife valve and boom holding 11212989 Main control valve, boom and bucket and travel Rh 11212989 Main control valve, swing and option and dipper arm and travel Lh 11212989 Main control valve, relief valve and dipper arm holding 11212924 Pump installation 11212924 Hydraulic pump 11212924 Regulator, hydraulic pump 11212924 Hydraulic gear pump 11212924 Servo system, control valve to remote control valve 11212924 Servo system, control valve to remote control valve pedal 11212924 Servo system, control valve to solenoid valve 11212924 Servo system, control valve piping 11212924 Servo system, pump piping and filter mount 11212924 Remote control valve pedal with fitting parts 11212924 Remote control valve pedal, travel motor 11211825 Servo system, remote control valve 11213320 Working hydraulic, dipper arm cylinder on boom 11213331, 11213332 Working hydraulic, boom cylinder 11213338 Working hydraulic, bucket cylinder on dipper arm 11213346 Bucket 11213354 Links to bucket 11213370 Links to boom 11213370 Boom and grease piping 11213399 Boom cylinder 11213404 Links to dipper arm 11213404 Dipper arm and grease piping with piping seat 11213421 Dipper arm cylinder 11213428 Links to connecting rod 11213443 Bucket cylinder

1

2

3

4

5

6

7

8

9

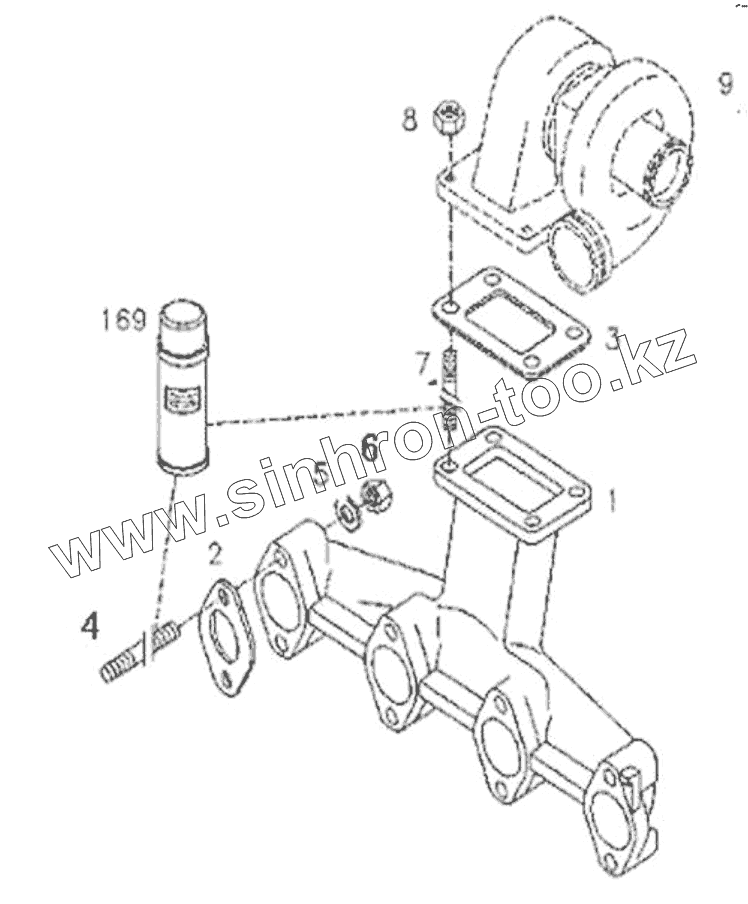

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4110000988050		Exhaust pipe
2	4110000727008		Exhaust pipe gasket
3	4110000988011		Gasket
4	4110000727100		Pine
5	4110000509139		Plain washer
6	4110000509140		Hexagon nut
7	4110000988031		Stud
8	4110000988024		Hexagon nut
9	4110000988052		Turbocharger

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
