11213481 Crankcase

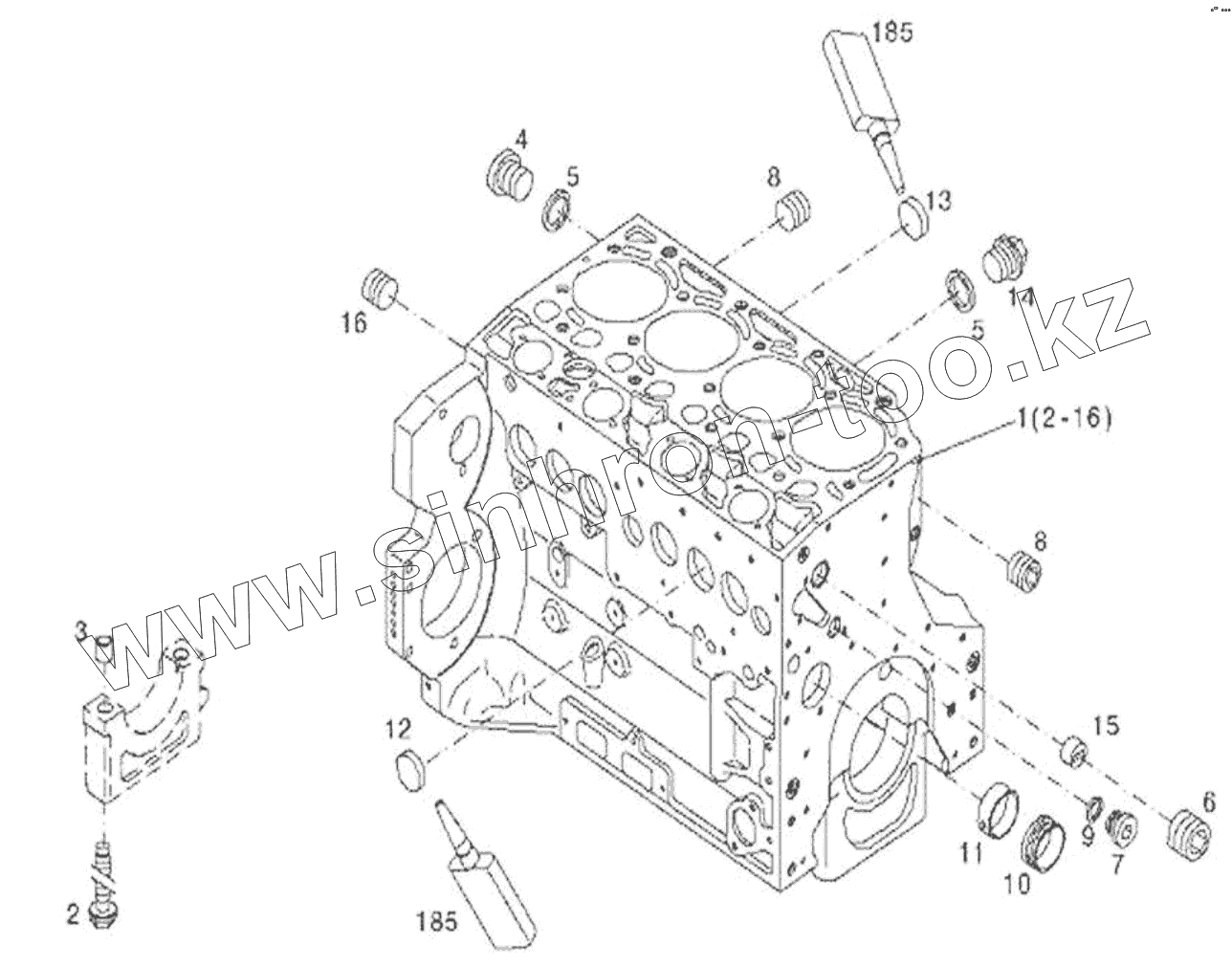

Каталог запасных частей к технике: SDLG LG6150E. 11213481 Crankcase
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
B877 (2013)
B877 (2017)
G9138 (2020)
G9190 (2013)
L916 (2017)
L938F (2016)
L948 (2016)
L948F (2015)
L953N (2017)
L956F (2017)
L958F (2019)
LG6150E
LG6210E (2013)
LG918 (2008)
LG918 (2009)
LG933 (2008)
LG933 (2018)
LG933L (2011)
LG936 (2007)
LG936 (2007)
LG936L (2009)
LG936L (2013)
LG936L (2017)
LG938 (2006)
LG938 (2010)
LG938F (2015)
LG938L (2010)
LG944MSK (2015)
LG946L (2010)
LG952 (2007)
LG952 (2009)
LG952H (2009)
LG952H (2012)
LG952N (2016)
LG953 (2006)
LG953 (2008)
LG953 (2009)
LG953N (2015)
LG955N (2015)
LG956 (2005)
LG956F (2016)
LG956FH (2017)
LG956L (2009)
LG956L (2015)
LG956V (2015)
LG958 (2006)
LG958L (2009)
LG958L (2012)
LG958N (2013)
LG958N (2015)
LG968 (2007)
LG968 (2009)
LG969 (2007)
LG969 (2009)
LG969N (2015)
LGB680 (2007)
Схема
>
Не выбрано
11213481 Engine
11212924 Engine mounting
11212924, 11211826 Fuel tank with fitting parts
11213478 Fuel filling pump with assembling details
11212924 Fuel pipe - Fuel tank
11213480 Water separator
11212924 Exhaust system
11212924 Inlet system
11212924 Cooling system
11213470 Radiator
11213470 Cooling fan mounting
11213481 Valve drive
11213481 Connecting rod
11213481 Crankshaft
11213481 Cross refer. list
11213481 Fastenings
11213481 Actuator
11213481 Crankcase
11213481 Blanking parts
11213481 Blanking parts
11213481 Piston cool.nozzle
11213481 Control rod
11213481 High pressure pipe
11213481 Fastenings
11213481 Camshaft
11213481 Roller tappet
11213481 Fastenings
11213481 Fuel inject. pump
11213481 Fastenings
11213481 Fuel injector
11213481 Cylinder head
11213481 Blanking parts
11213481 Blanking parts
11213481 Exhaust pipe
11213481 Return line
11213481 Lubricat. oil line
11213481 Fastenings
11213481 Heating flange
11213481 Charge air pipe
11213481 Blanking parts
11213481 Crankcase breather
11213481 Manifold
11213481 Breather line
11213481 Hose clip
11213481 Lubricat. oil pump
11213481 Fastenings
11213481 Suction pipe
11213481 Oil pan
11213481 Hose connector
11213481 Oil gauge
11213481 Dipstick
11213481 Guide tube
11213481 Fastenings
11213481 Connection housing
11213481 Flywheel
11213481 Fastenings
11213481 Fan bracket
11213481 Outlet/exh. branch
11213481 Blanking parts
11213481 V-grooved pulley
11213481 Generator
11213481 Accessories
11213481 Fastenings
11213481 Fastenings
11213481 V-rib.belt pulley
11213481 Fuel supply pump
11213481 Belt tensioner
11213481 Fastenings
11213481 Fan support
11213481 Fastenings
11213481 Accessories
11213481 Accessories
11213481 Blanking parts
11213481 Blanking parts
11213481 Gearcase
11213481 Plug
11213481 Valve mechan.cover
11213481 Rubber seal
11213481 Blanking parts
11213481 Oil cooler box
11213481 Blanking parts
11213481 Connecting parts
11213481 Fuel filter assy
11213481 Support
11213481 Fuel line
11213481 Fuel line
11213481 Mating part
11213481 Fuel line
11213481 Engine mounting
11213481 Starter
11213481 Fastenings
11213481 Pilot line
11213481 Accessories
11213481 Cable harness
11213481 Interconnect.cable
11213481 Control unit
11213481 Relay
11213481 Blanking parts
11213481 Oil press.monitor
11213481 Speed monit.system
11213481 Impulse transmitter
11213481 Temper.transmitter
11212924 Battery with assembling details
11211826 Key system
11212924 Lighting, front
11213370 Working lamp on boom
11212924 Horn
11212924 Windshield washer
11212924 Electrical relay
11212924, 11213477 Switch
11212924 Electronic unit.
11212924 Cables, battery
11212924 Cable and wire harness, main
11212924 Cable harness, engine
11212924 Cable and wire harness, instrument panel
11211823 Cable harnesses, cab
11212924 Electrical relay
11212924 Electrical sensor
11212924 Instrument panel, warning unit and information unit
11213483 Cassette radio recorder with mounting details
11213483 Telematics
11212937 Travel gearbox
11212924 Swing gearbox
11212924 Pump gearbox with assembling parts
11212937 Travel motor with mounting parts
11212937 Travel motor
11212937 Control valve, travel motor
11212924 Swing motor with mounting parts
11212924 Swing motor
11212937 Turning joint, mounting
11212937 Turning joint
11212924 Swing system
8277923 Protecting plate
8277950 Protective plate for travel motor
8288668 Counterweights
8277935 Foot step
8282963 Track chain
8277950 Undercarriage, track guards
8277950 Undercarriage, spring package
8277950 Front idler
8277950 Top roller
8277950 Bottom roller
8277950 Sprocket
11211823 Cab mount
11211823 Operator's cab
11211823 Operator's cab
11211823 Operator's cab
11211823 Operator's cab
11212924 Cowl frame
11212924 Cowl frame, cover and hood
11213485, 11212924 Door, side
11212924 Cover, control valve
11212924 Cover, main pump
11212924 Handrail
11212924 Tool box, cowl
11211823 Door, operator's cab
11212924 Cabin floor
1213472 Hatches under engine, hydr.pumps, cooler, m.valve and fuel tank
11212924 Rear view mirror
11212924 Rear view mirror
11211823 Windows
11211823 Windshield
11211824 Operator seat with fitting parts
11211827 Sun visor interior
11211838 Sun visor
11213471 Air conditioning line, cooling and heater
11213471 Air duct in cabin and cabin floor
11213471 Air conditioning unit, cooling and heater
11212924 Instrument panel, control panel
11212924 Instrument panel, radio panel
11212924 Anti slip
11213476 Tools
11213479 Decals
11213484 Decals, cab
11212924 Hydraulic oil tank
11212924 Turning jo int line, control valve to turning joint
11212937 Turning jo int line, turning joint to travel motor
11212924 Hydraulic system, control valve to boom and swing
11212924 Hydraulic system, hydraulic tank to hydraulic oil cooler
11212924 Hydraulic system, hydraulic tank to hydraulic pump
11212989 Control valve with fitting parts
11212989 Main control valve, relife valve and boom holding
11212989 Main control valve, boom and bucket and travel Rh
11212989 Main control valve, swing and option and dipper arm and travel Lh
11212989 Main control valve, relief valve and dipper arm holding
11212924 Pump installation
11212924 Hydraulic pump
11212924 Regulator, hydraulic pump
11212924 Hydraulic gear pump
11212924 Servo system, control valve to remote control valve
11212924 Servo system, control valve to remote control valve pedal
11212924 Servo system, control valve to solenoid valve
11212924 Servo system, control valve piping
11212924 Servo system, pump piping and filter mount
11212924 Remote control valve pedal with fitting parts
11212924 Remote control valve pedal, travel motor
11211825 Servo system, remote control valve
11213320 Working hydraulic, dipper arm cylinder on boom
11213331, 11213332 Working hydraulic, boom cylinder
11213338 Working hydraulic, bucket cylinder on dipper arm
11213346 Bucket
11213354 Links to bucket
11213370 Links to boom
11213370 Boom and grease piping
11213399 Boom cylinder
11213404 Links to dipper arm
11213404 Dipper arm and grease piping with piping seat
11213421 Dipper arm cylinder
11213428 Links to connecting rod
11213443 Bucket cylinder
1
2
3
4
5
5
6
7
8
8
9
10
11
12
13
14
15
16
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4110000988001
Crankcase
2
4110000509009
Screw
3
4110000509010
Pine
4
4110000509020
Screw plug
5
4110000509019
Sealing ring
6
4110000727075
Screw plug
7
4110000988086
Screw plug
8
4110000988002
Screw plug
9
4110000988016
Sealing ring
10
4110000727115
Bearing bush
11
4110000727114
Bearing bush
12
4110000988022
Cover
13
4110000988029
Cover
14
4110000509018
Screw plug
15
4110000727027
Guide sleeve
16
4110000727113
Screw plug
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
