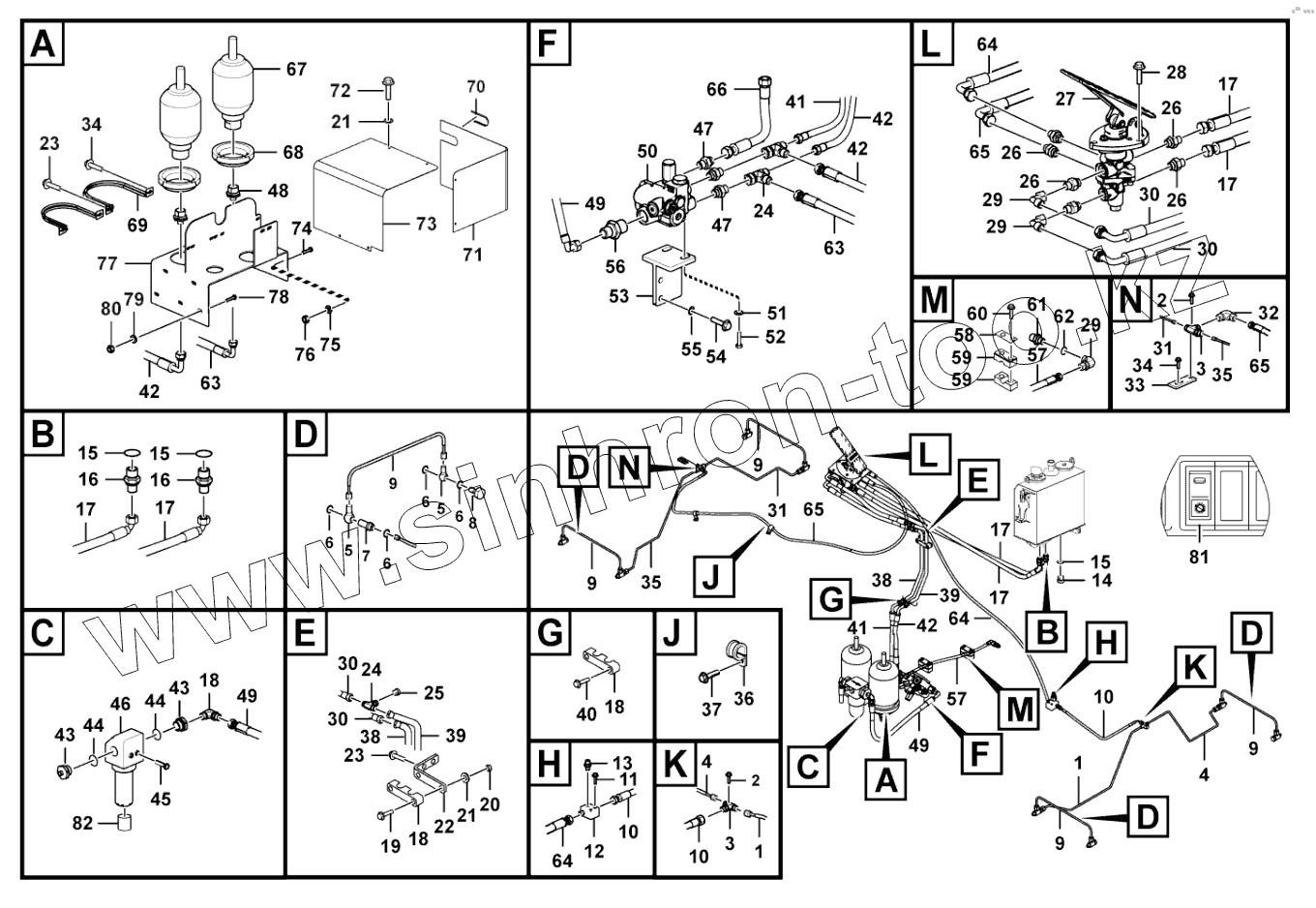

Каталог запасных частей к технике: SDLG L958F. Travel brake

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
3
4
4
5
5
6
6
6
6
7
8
9
9
9
9
9
10
10
10
11
12
13
14
15
15
15
16
16
17
17
17
17
17
17
18
18
18
19
20
21
21
22
23
23
24
24
25
26
26
26
26
27
28
29
29
29
30
30
30
30
31
31
32
33
34
34
35
35
36
37
38
38
39
39
40
41
41
42
42
42
42
43
43
44
44
45
46
47
47
48
49
49
49
50
51
52
53
54
55
56
57
57
58
59
59
60
61
62
63
63
64
64
64
65
65
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
Позиция на иллюстрации Заводской номер детали Название детали
1 29220020151 Brake pipe
2 4011001301 Screw
3 29220015381 Three-way nipple
4 29220020171 Brake pipe
5 29220009021 Block
6 4030000552 O-Ring
7 29220009011 Nipple
8 29220001251 CONNECTOR
9 29220020451 Brake pipe
10 4041000884 Hose
11 4011001305 Screw
12 29220009221 Block
13 4120004340 Switch
14 4041000508 THREAD PLUG
15 4041000768 O-RING LGB168-11524
16 4041002774 Nipple
17 4041001399 Pipe
18 29220022791 Plate
19 4011001425 Bolt
20 4013000373 Nut
21 4015000430 Washer
22 29220022771 Bracket
23 4011001297 Screw
24 4190000143 Three-way nipple
25 4041000728 PLUG
26 4190000147 Nipple
27 4120005158 Control valve
28 4011001295 Screw
29 4190000141 Nipple
30 4041000844 Hose
31 29220020131 Brake pipe
32 4190000176 Nipple
33 29220011131 Anchor plate
34 4011001296 Screw
35 29220020111 Brake pipe
36 4041002412 Clamp
37 4011001313 Screw
38 29220022741 Tube
39 29220022761 Tube
40 4011001300 Screw
41 4041002710 Hose assembly
42 4041001986 Hose assembly
43 29220012581 Nipple
44 4030000894 O-ring
45 4011001294 Screw
46 4120004417 Hydraulic fluid filter
47 4190000149 Nipple
48 29220010271 Nipple
49 4041001988 Hose
50 4120002767 Check valve
51 4015000426 Washer
52 29220018821 Screw
53 29220022721 Bracket
54 4011001241 Screw
55 4015000428 Washer
56 29220017621 Nipple
57 4041001990 Hose
58 29170125191 Plate
59 4041002638 Clamp
60 4011001286 Screw
61 4041000150 STAIGHT JOINT
62 4041000767 O-RING
63 4041001908 Hose
64 29220018791 Hose
65 29220028071 Hose assembly
66 4041001553 Tube
67 4120004659 Accumulator
68 29220022781 Rubber sleeve
69 29220022801 Plate
70 29270007792 RUBBER BUSH
71 29220018831 Protecting cover
72 4011001314 Screw
73 29220024551 Protecting cover
74 4011001248 Screw
75 4015000433 Washer
76 4013000370 Nut
77 29220025261 Bracket
78 4011001375 Bolt
79 4015000427 Washer
80 4013000368 Nut
81 4130000504 Rocker switch
82 4120004417001 Filter insert
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
