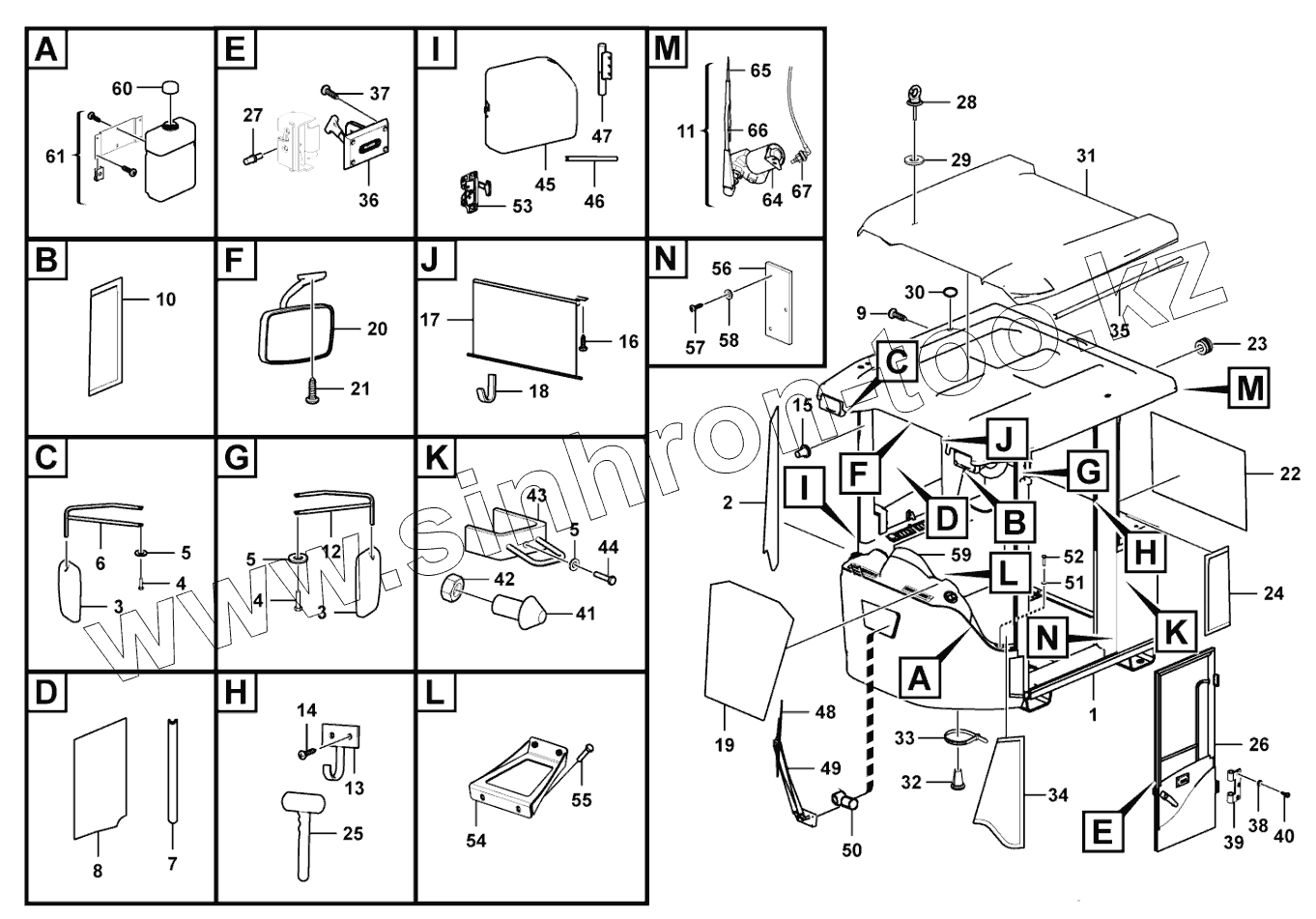

Каталог запасных частей к технике: SDLG L958F. Cab
1
2
3
3
4
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
64
65
66
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29290050301 | Cab framework | |
| 2 | 29290037451 | Glass | |
| 3 | 26290016141 | Rear view mirror | |
| 4 | 4014000530 | Screw | |
| 5 | 4015000430 | Washer | |
| 6 | 29290047131 | Bracket | |
| 7 | 4190002360 | Protecting moulding | |
| 8 | 29290036471 | Sliding window | |
| 9 | 4014000523 | Screw | |
| 10 | 29290013281 | Glass | |
| 11 | 29290024211 | Windscreen wiper | |
| 12 | 29290047121 | Bracket | |
| 13 | 29290013471 | Clothes hook | |
| 14 | 4014000037 | SCREW | |
| 15 | 28250005602 | Rubber cover | |
| 16 | 4014000519 | Screw | |
| 17 | 29290040831 | Sun visor | |
| 18 | 29290013711 | Clothes hook | |
| 19 | 29290037431 | Glass | |
| 20 | 4190001841 | Rear view mirror | |
| 21 | 4014000520 | Screw | |
| 22 | 29290037461 | Glass | |
| 23 | 29290030761 | Rubber | |
| 24 | 29290013271 | Glass | |
| 25 | 4190000501 | SAFETY HAMMER | |
| 26 | 29290045171 | Door | |
| 27 | 4190001768 | Pillar | |
| 28 | 4014000516 | Screw | |
| 29 | 4190000956 | SEAL WASHER | |
| 30 | 29330000201 | RUBBER COVER | |
| 31 | 29290045371 | Cab roof | |
| 32 | 26310001872 | Rubber sleeve | |
| 33 | 4190000019 | Cable tie | |
| 34 | 29290037441 | Glass | |
| 35 | 4043002677 | Sealing strip | |
| 36 | 29290013701 | Cover | |
| 37 | 4014000518 | Screw | |
| 38 | 4015000430 | Washer | |
| 39 | 29290046201 | Hinge | |
| 40 | 4014000513 | Screw | |
| 41 | 4190000596 | CHECK OF UPPER GATE | |
| 42 | 4013000373 | Nut | |
| 43 | 29290039661 | Catch | |
| 44 | 4011001247 | Screw | |
| 45 | 29290027811 | Protecting cover | |
| 46 | 4190003104 | Lock strip | |
| 47 | 29290017611 | Pin | |
| 48 | 29290041441 | Wiper blade | |
| 49 | 29290041431 | Wiper arm | |
| 50 | 29290041421 | Wiper motor | |
| 51 | 4015000438 | Washer | |
| 52 | 4011001565 | Screw | |
| 53 | 29290013291 | Lock | |
| 54 | 29290044061 | Bracket | |
| 55 | 4011000447 | BOLT | |
| 56 | 29290046641 | Plate | |
| 57 | 4014000521 | Screw | |
| 58 | 4015000425 | Washer | |
| 59 | 29290050441 | Trim panel | |
| 60 | 29290034621 | Cap | |
| 61 | 29290032601 | Washer system | |
| 62 | 29290018831 | Name plate | |
| 63 | 29290045301 | Nameplate | |
| 64 | 29290024221 | Wiper motor | |
| 65 | 29290021781 | Wiper blade | |
| 66 | 29290021791 | Wiper arm | |
| 67 | 29290021801 | Spray nozzle |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
