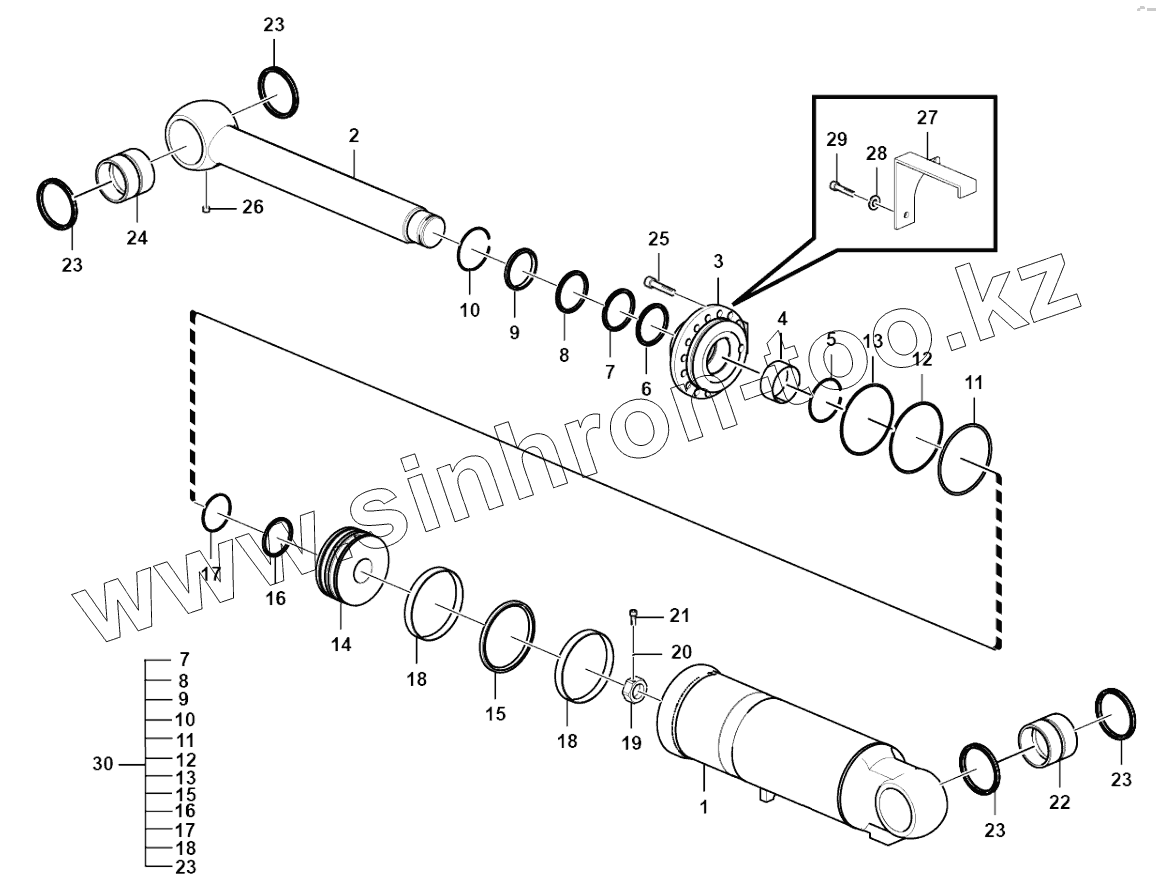

Каталог запасных частей к технике: SDLG L956F. Tilt cylinder HSGF-190x90x548-1043A (3713CH)
1
2
3
4
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
15
15
16
16
17
17
18
18
18
19
20
21
22
23
23
23
23
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120007867001 | Cylinder tube | |
| 2 | 4120007867002 | Piston rod | |
| 3 | 4120005980021 | Cover | |
| 4 | 4120005980010 | Bushing | |
| 5 | 4120005980008 | Retaining ring | |
| 6 | 4120005999004 | Sealing ring | |
| 7 | 4120005999005 | Sealing ring | |
| 8 | 4120005999006 | Retaining ring | |
| 9 | 4120004336016 | Sealing ring | |
| 10 | 4120005980009 | Retaining ring | |
| 11 | 4120007577003 | O-ring | |
| 12 | 4120007577004 | O-ring | |
| 13 | 4120007577005 | O-ring | |
| 14 | 4120005980005 | Piston | |
| 15 | 4120007577006 | Piston | |
| 16 | 4120005999013 | O-ring | |
| 17 | 4120005999014 | O-ring | |
| 18 | 4120007577007 | Sealing ring | |
| 19 | 4120005980011 | Nut | |
| 20 | 4090000168 | Ball | |
| 21 | 4120005685008 | Screw | |
| 22 | 4120005980012 | Bushing | |
| 23 | 4120006998003 | Sealing ring | |
| 24 | 4120005980007 | Bushing | |
| 25 | 4120006560024 | Screw | |
| 26 | 4120005801013 | Grease cup | |
| 27 | 4120007867003 | Seat | |
| 28 | 4120006030007 | Washer | |
| 29 | 4120005980019 | Screw | |
| 30 | 4120007867004 | Sealing kit |
