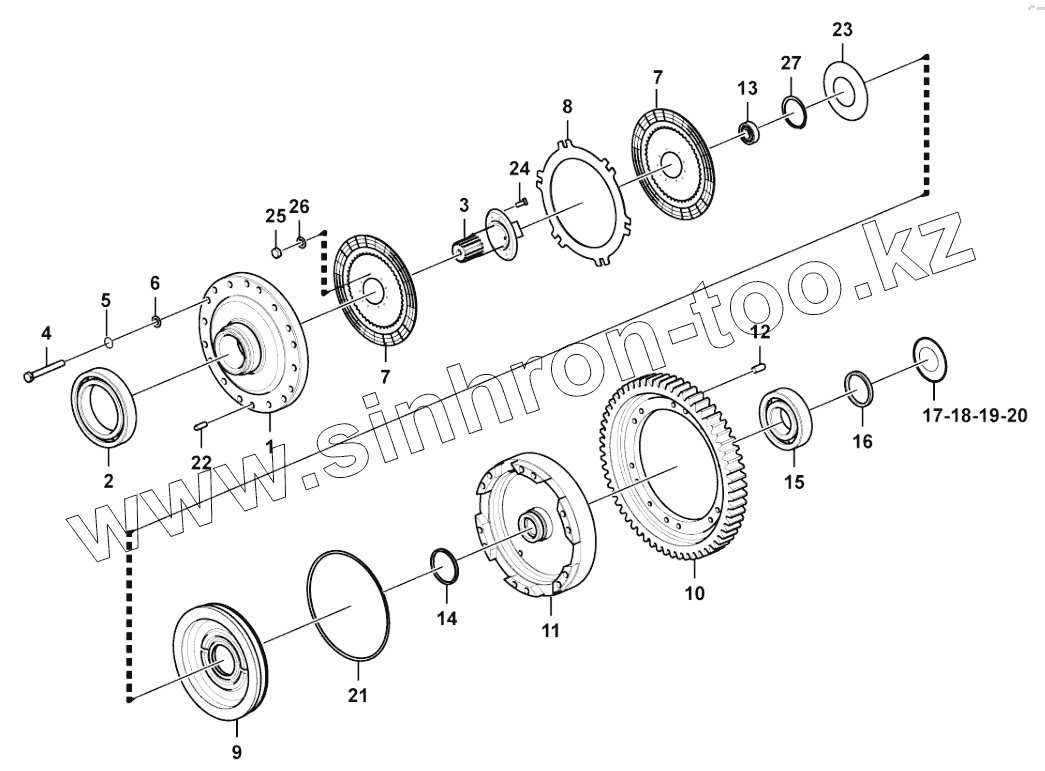

Каталог запасных частей к технике: SDLG L956F. Quick gear
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 3030900103 | BACK DISK FOR THE SECOND SPEED | |
| 2 | 4021000015 | BALL BEARING | |
| 3 | 3030900104 | SHAFT FOR THE SECOND SPEED | |
| 4 | 3030900105 | BOLT | |
| 5 | 4090000011 | STEEL WIRE | |
| 6 | 4015000288 | Washer | |
| 7 | 2030900020 | DRIVE DISK ASSY FOR THE SECOND SPEED | |
| 8 | 3030900106 | DRIVEN DISK FOR THE SECOND SPEED | |
| 9 | 3030900107 | PISTION | |
| 10 | 29050016431 | Gear | |
| 11 | 3030900109 | CYLINDER ASSY FOR THE SECOND SPEED | |
| 12 | 3030900115 | PIN | |
| 13 | 4021000016 | BALL BEARING | |
| 14 | 3030900110 | SEAL | |
| 15 | 4021000024 | BALL BEARING | |
| 16 | 3030900111 | SEAL | |
| 17 | 29050020491 | Shim | |
| 18 | 29050020501 | Shim | |
| 19 | 29050020511 | Shim | |
| 20 | 29050020931 | Shim | |
| 21 | 3030900113 | SEALING RING | |
| 22 | 3030900112 | PIN | |
| 23 | 3030900114 | DISH SPRING | |
| 24 | 4011000723 | Bolt | |
| 25 | 4013000162 | NUT | |
| 26 | 4015000036 | WASHER | |
| 27 | 4015000023 | RIONG SNAP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
