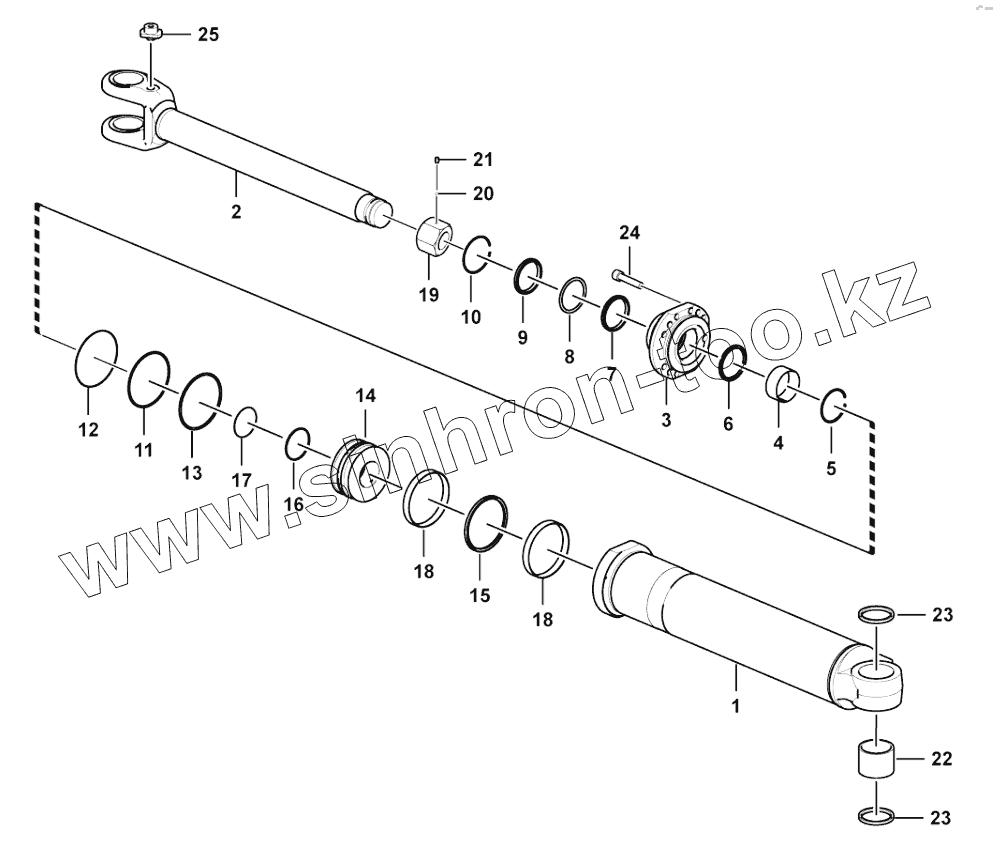

Каталог запасных частей к технике: SDLG L956F. Lifting cylinder assembly (3713CH)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120006628001 | Cylinder tube | |
| 2 | 4120006628002 | Piston rod | |
| 3 | 4120006628003 | Cover | |
| 4 | 4120005980010 | Bushing | |
| 5 | 4120005980008 | Retaining ring | |
| 6 | 4120006628004 | Sealing ring kit | |
| 7 | 4120006628004 | Sealing ring kit | |
| 8 | 4120006628004 | Sealing ring kit | |
| 9 | 4120006628004 | Sealing ring kit | |
| 10 | 4120005980009 | Retaining ring | |
| 11 | 4120006628004 | Sealing ring kit | |
| 12 | 4120006628004 | Sealing ring kit | |
| 13 | 4120006628004 | Sealing ring kit | |
| 14 | 4120006628005 | Piston | |
| 15 | 4120006628004 | Sealing ring kit | |
| 16 | 4120006628004 | Sealing ring kit | |
| 17 | 4120006628004 | Sealing ring kit | |
| 18 | 4120006628004 | Sealing ring kit | |
| 19 | 4120005980011 | Nut | |
| 20 | 4090000168 | Ball | |
| 21 | 4120005685008 | Screw | |
| 22 | 4120006628006 | Bushing | |
| 23 | 4120006628004 | Sealing ring kit | |
| 24 | 4120006628007 | Screw | |
| 25 | 4120005685012 | Anchorage |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
