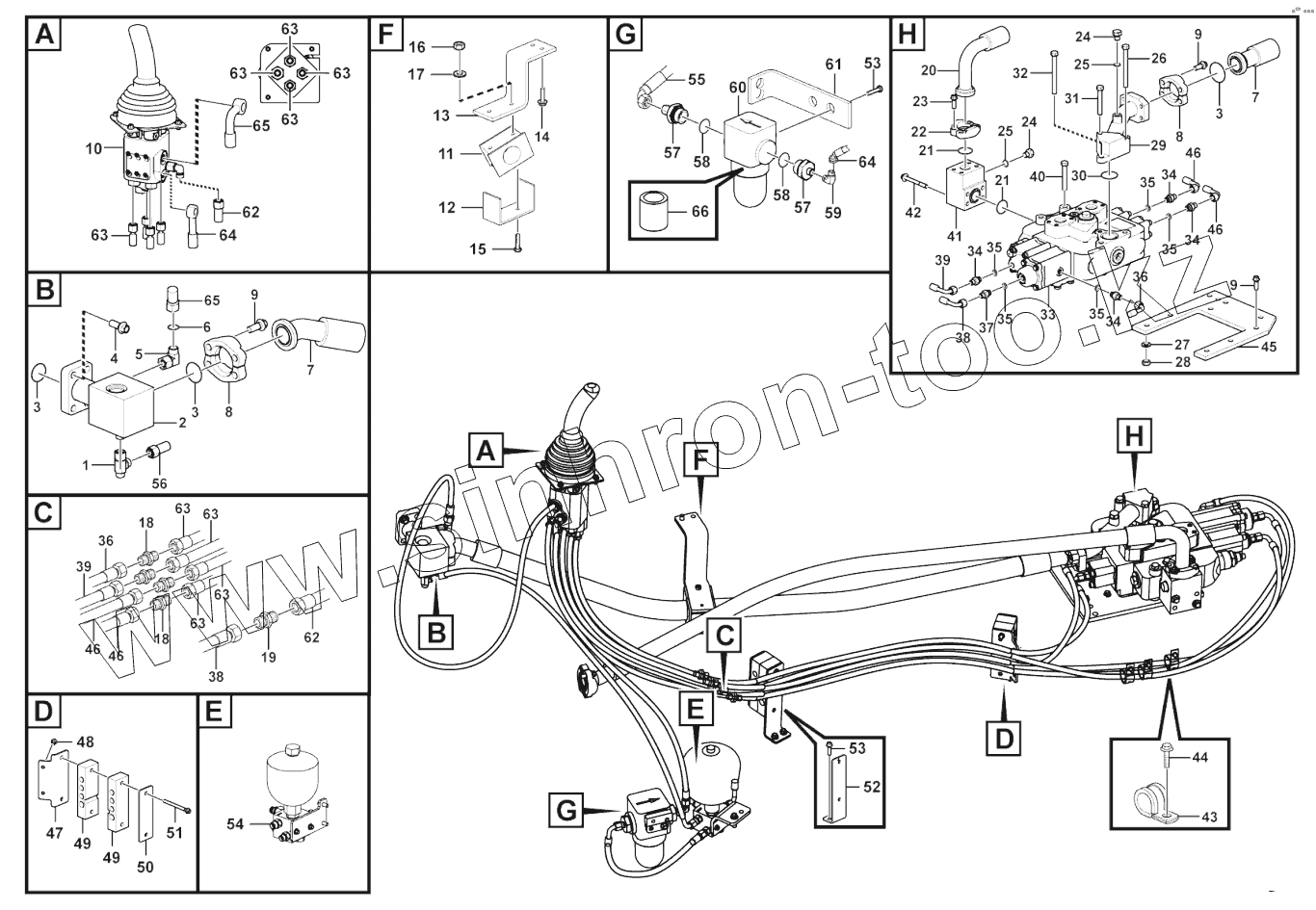

Каталог запасных частей к технике: SDLG L956F. Hydraulic control system
1
2
3
3
3
4
5
6
7
7
8
8
9
9
9
10
11
12
13
14
15
16
17
18
18
19
20
21
21
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
34
34
34
35
35
35
35
35
36
36
37
38
38
39
39
40
41
42
43
44
45
46
46
46
46
47
48
49
49
50
51
52
53
53
54
55
56
57
57
58
58
59
60
61
62
62
63
63
63
63
63
63
63
63
63
64
64
65
65
66
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120001100 | Three-way nipple | |
| 2 | 29120032571 | Pipe | |
| 3 | 4030000130 | O-RING | |
| 4 | 4011001375 | Bolt | |
| 5 | 4041001063 | CONNECTOR LGB143-01810 | |
| 6 | 4030000490 | O-RING | |
| 7 | 29120030891 | Hose assembly | |
| 8 | 4041000011 | FLANGE | |
| 9 | 4011001510 | Screw | |
| 10 | 29120031101 | Control lever | |
| 11 | 29120030911 | Clamp | |
| 12 | 29120032241 | Plate | |
| 13 | 29120030901 | Bracket | |
| 14 | 4011001299 | Screw | |
| 15 | 4011001393 | Bolt | |
| 16 | 4013000373 | Nut | |
| 17 | 4015000430 | Washer | |
| 18 | 29120017721 | Nipple | |
| 19 | 29120017731 | Nipple | |
| 20 | 29120030831 | Hose assembly | |
| 21 | 4030000029 | O-RING | |
| 22 | 4041000056 | FLANGE | |
| 23 | 4011001300 | Screw | |
| 24 | 4041000774 | PLUG | |
| 25 | 4041000767 | O-RING | |
| 26 | 4011001558 | Screw | |
| 27 | 4015000428 | Washer | |
| 28 | 4013000368 | Nut | |
| 29 | 29120009161 | RENTURN TUBE OF MULTIPLE UNIT VALVE | |
| 30 | 4030000031 | O-RING | |
| 31 | 4011001560 | Screw | |
| 32 | 4011001465 | Screw | |
| 33 | 4120007617 | Control valve | |
| 34 | 29120015401 | FITTING | |
| 35 | 29120014931 | WASHER | |
| 36 | 4041001938 | Hose assembly | |
| 37 | 29120007651 | JOINT | |
| 38 | 4041002748 | Hose assembly | |
| 39 | 4041002184 | Hose assembly | |
| 40 | 4011001561 | Screw | |
| 41 | 29120019061 | Valve block | |
| 42 | 4011001563 | Screw | |
| 43 | 4041002411 | Clamp | |
| 44 | 4011001297 | Screw | |
| 45 | 29120016981 | Anchor plate | |
| 46 | 4041001951 | Hose | |
| 47 | 29120017741 | Anchor plate | |
| 48 | 4011001240 | Bolt | |
| 49 | 29120016741 | CLAMP | |
| 50 | 29120016351 | MOUNTED PLATE | |
| 51 | 4011001303 | Screw | |
| 52 | 29120017001 | Bracket | |
| 53 | 4011001294 | Screw | |
| 54 | 29120036181 | Hydraulic control | |
| 55 | 4041000937 | Hose | |
| 56 | 4041001145 | Hose assembly | |
| 57 | 29120015081 | JOINT | |
| 58 | 4030000276 | O-RING | |
| 59 | 4041001023 | JOINT | |
| 60 | 4120001954 | STRAINER | |
| 61 | 29030037021 | Plate | |
| 62 | 4041002256 | Hose assembly | |
| 63 | 4041001293 | Tube lgb124-003090 | |
| 64 | 29120017131 | Hose assembly | |
| 65 | 29120033411 | Hose assembly | |
| 66 | 4120001954001 | Filter insert |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
