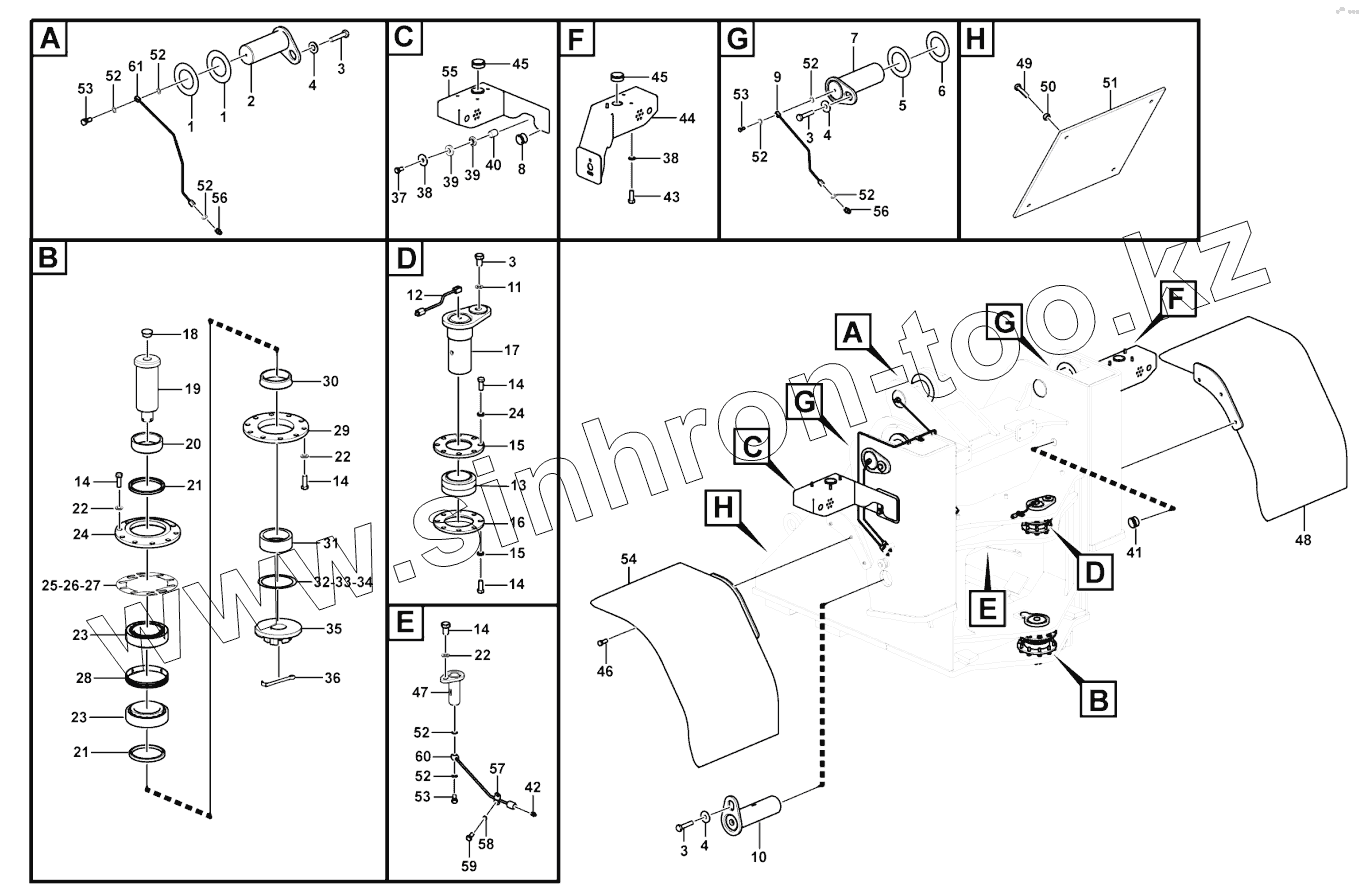

Каталог запасных частей к технике: SDLG L956F. Front frame system
1
1
2
3
3
3
3
4
4
4
5
6
7
8
9
10
11
12
13
14
14
14
14
14
15
15
16
17
18
19
20
21
21
22
22
22
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
39
39
40
41
42
43
44
45
45
46
47
48
49
50
51
52
52
52
52
52
52
52
52
53
53
53
54
55
56
56
57
58
59
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4043000040 | SPACER | |
| 2 | 4043001471 | Weld pin | |
| 3 | 4011001261 | Screw | |
| 4 | 4040000051 | Washer | |
| 5 | 4043000038 | SPACER | |
| 6 | 4043000037 | SPACER | |
| 7 | 4043001470 | Weld pin | |
| 8 | 29250001361 | RUBBER SLOEVE | |
| 9 | 29250016881 | Lubricating pipe | |
| 10 | 4043001060 | Weld pin | |
| 11 | 29250018651 | Shim | |
| 12 | 29250001211 | Lubricating pipe | |
| 13 | 4021000043 | SPHERICAL PLAIN BEARING | |
| 14 | 4011001250 | Screw | |
| 15 | 29250001031 | FLANGE | |
| 16 | 29250001051 | JOINING PLATE | |
| 17 | 29250001081 | UP ARTICULATION PIN | |
| 18 | 29270009421 | Plastic plug | |
| 19 | 29250017661 | Pin | |
| 20 | 29250009441 | Sleeve | |
| 21 | 4043000057 | PUSTRING | |
| 22 | 4015000428 | Washer | |
| 23 | 4021000058 | BEARING GB297-33116 | |
| 24 | 29250000091 | DISC | |
| 25 | 29250000061 | SPACER | |
| 26 | 29250000071 | SPACER | |
| 27 | 29250000081 | SPACER | |
| 28 | 29250000051 | BUSH | |
| 29 | 29250009461 | Flange | |
| 30 | 29250009451 | Sleeve | |
| 31 | 29250009421 | Sleeve | |
| 32 | 29250017701 | Shim | |
| 33 | 29250017711 | Shim | |
| 34 | 29250017721 | Shim | |
| 35 | 29250017691 | Nut | |
| 36 | 4016000043 | SPLIT PIN GB91-8x80EpZn | |
| 37 | 4011001270 | Screw | |
| 38 | 4015000426 | Washer | |
| 39 | 11220538 | Damper mat | |
| 40 | 11220539 | Steel pipe | |
| 41 | 4043001362 | Rubber sleeve | |
| 42 | 4030000065 | GREASE NIPPLE | |
| 43 | 4011001248 | Screw | |
| 44 | 29250018181 | Lamp bracket | |
| 45 | 29250008461 | RUBBER SLEEVE | |
| 46 | 4011001240 | Bolt | |
| 47 | 29250018341 | Pin | |
| 48 | 29250010901 | Front mudguard | |
| 49 | 4011001280 | Screw | |
| 50 | 4043002603 | Attaching sleeve | |
| 51 | 29140014801 | Cover plate | |
| 52 | 29250000301 | WASHER | |
| 53 | 29250000291 | BOLT | |
| 54 | 29250010881 | Front mudguard | |
| 55 | 29250018171 | Lamp bracket | |
| 56 | 29250014121 | Nipple | |
| 57 | 29250000311 | PLATE | |
| 58 | 4015000213 | Washer | |
| 59 | 4014000510 | Screw | |
| 60 | 29250021041 | Lubricating pipe | |
| 61 | 29250018781 | Lubricating pipe |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
