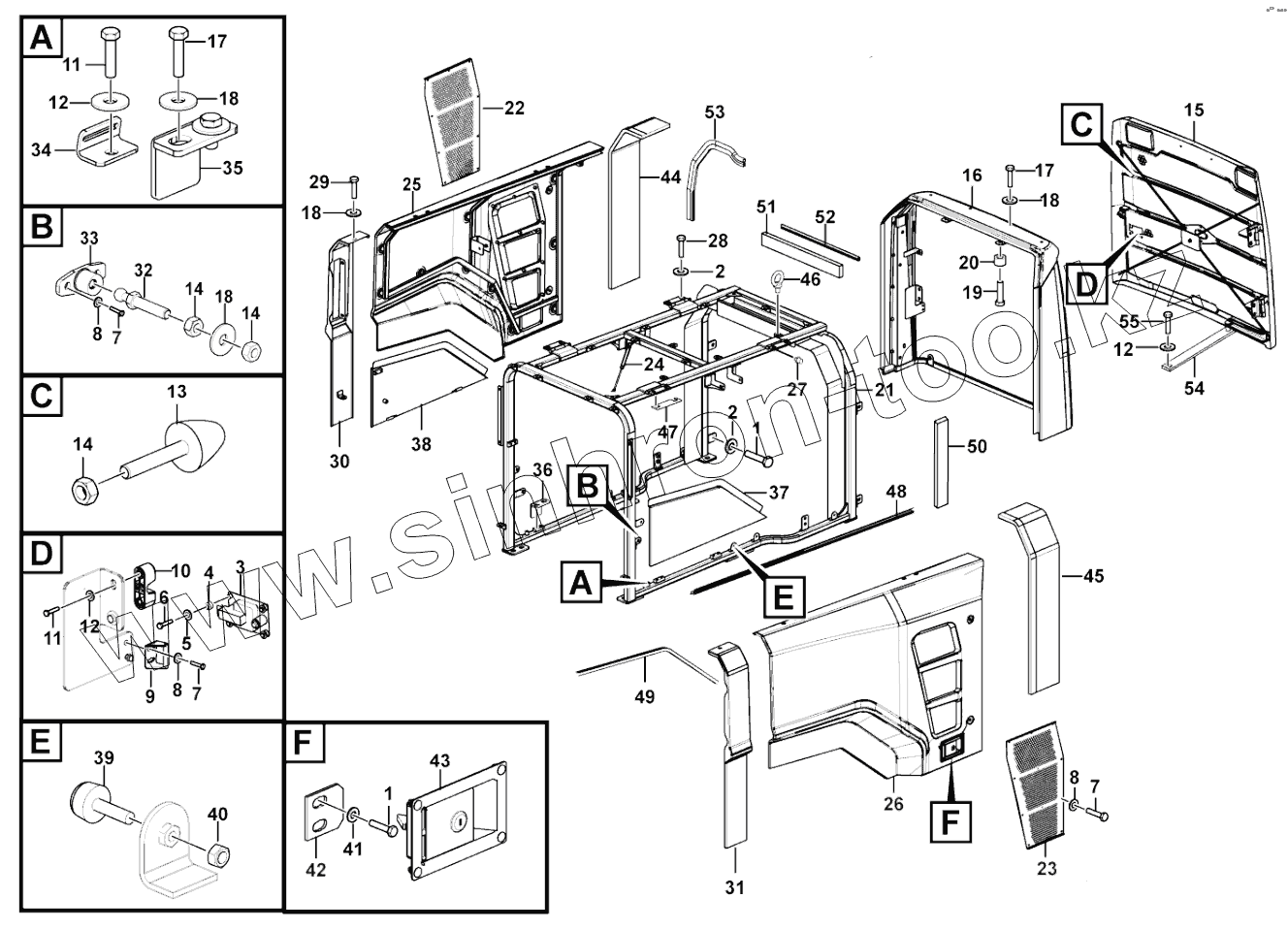

Каталог запасных частей к технике: SDLG L956F. Engine bonnet assembly
1
1
2
2
3
4
5
6
7
7
7
8
8
8
9
10
11
11
12
12
12
13
14
14
14
15
16
17
17
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4011001241 | Screw | |
| 2 | 4015000427 | Washer | |
| 3 | 4190002281 | Door lock | |
| 4 | 4190002284 | Washer | |
| 5 | 4015000438 | Washer | |
| 6 | 4011001336 | Screw | |
| 7 | 4011001285 | Screw | |
| 8 | 4015000437 | Washer | |
| 9 | 4190002434 | Catch | |
| 10 | 11211010 | Bump stop | |
| 11 | 4011001247 | Screw | |
| 12 | 4015000425 | Washer | |
| 13 | 11210576 | Bolt | |
| 14 | 4013000370 | Nut | |
| 15 | 29330068752 | Grille | |
| 16 | 29330068742 | Bonnet | |
| 17 | 4011001238 | Screw | |
| 18 | 4015000426 | Washer | |
| 19 | 4011001251 | Screw | |
| 20 | 4043001970 | Attaching sleeve | |
| 21 | 29330076182 | Frame | |
| 22 | 29330077451 | Protecting grating | |
| 23 | 29330077421 | Protecting grating | |
| 24 | 4041002547 | Gas spring | |
| 25 | 29330068731 | Cover | |
| 26 | 29330068721 | Cover | |
| 27 | 4030000535 | OIL CUP | |
| 28 | 4011001243 | Screw | |
| 29 | 4011001248 | Screw | |
| 30 | 29330074201 | Cover | |
| 31 | 29330074181 | Cover | |
| 32 | 29330074891 | Ball stud | |
| 33 | 29340036401 | Rubber frame | |
| 34 | 29330077521 | Lock strip | |
| 35 | 29330074641 | Rotor shaft | |
| 36 | 29330074631 | Rotor shaft | |
| 37 | 29330068782 | Cover | |
| 38 | 29330068792 | Cover | |
| 39 | 26330006531 | Rubber block | |
| 40 | 4013000373 | Nut | |
| 41 | 4015000428 | Washer | |
| 42 | 29330000092 | FRONT LOCK PLATE | |
| 43 | 4190003748 | Lock | |
| 44 | 29330074262 | Sponge | |
| 45 | 29330081502 | Sponge | |
| 46 | 4014000139 | Screw | |
| 47 | 29330075891 | Spacer | |
| 48 | 29330077461 | Sealing strip | |
| 49 | 4043001027 | Sealing strip | |
| 50 | 29330073611 | Sponge | |
| 51 | 29330076401 | Sponge | |
| 52 | 4043002572 | Sealing strip | |
| 53 | 29330077471 | Sealing strip | |
| 54 | 29330070631 | Pull rod | |
| 55 | 4011001291 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
