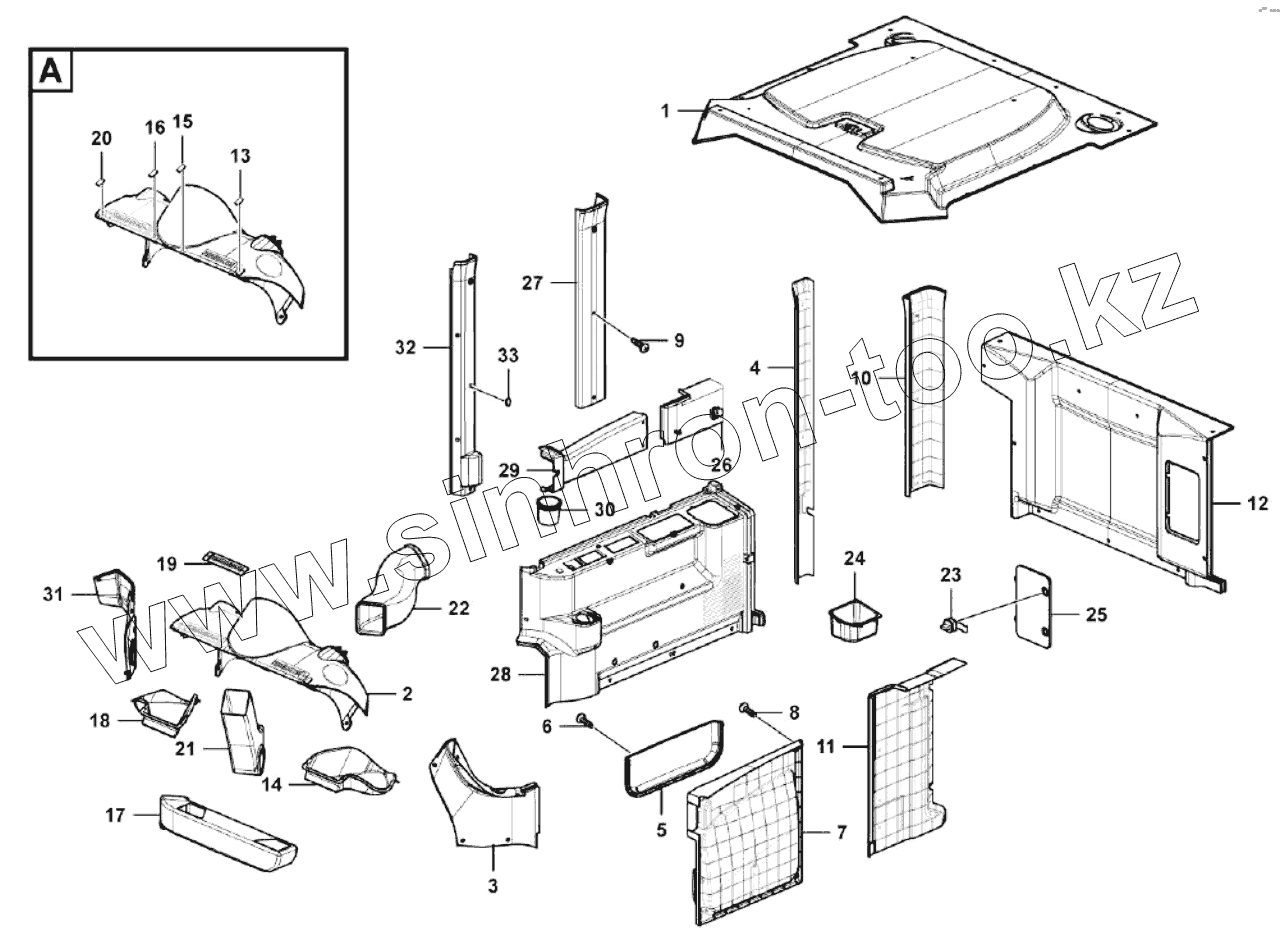

Каталог запасных частей к технике: SDLG L953N. Trim panel assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29290012551 | Roof | |
| 2 | 29290012571 | Instrument panel | |
| 3 | 29290012581 | Protecting plate | |
| 4 | 29290012611 | Pillar | |
| 5 | 29290012661 | Storage box | |
| 6 | 4014000061 | SCREW | |
| 7 | 29290012651 | Plate | |
| 8 | 4014000068 | Screw | |
| 9 | 29290014041 | Grommet | |
| 10 | 29290012631 | Pillar | |
| 11 | 29290012671 | Side plate | |
| 12 | 29290012701 | Protecting plate | |
| 13 | 29290014731 | Rubber stopper | |
| 14 | 29290012811 | Air duct | |
| 15 | 29290014741 | Rubber stopper | |
| 16 | 29290014751 | Rubber stopper | |
| 17 | 29290012801 | Ventilation hatch | |
| 18 | 29290012821 | Ventilation hatch | |
| 19 | 29290013011 | Defroster nozzle | |
| 20 | 29290014761 | Rubber stopper | |
| 21 | 29290012791 | Air duct | |
| 22 | 29290012781 | Air duct | |
| 23 | 29290013021 | Lock | |
| 24 | 29290012711 | Box | |
| 25 | 29290012681 | Cover | |
| 26 | 29290012751 | Protecting plate | |
| 27 | 29290012641 | Pillar | |
| 28 | 29290024441 | Trim panel | |
| 29 | 29290012741 | Protecting plate | |
| 30 | 4190001394 | Cup holder | |
| 31 | 29290012601 | Protecting plate | |
| 32 | 29290024081 | Pillar | |
| 33 | 29310018251 | Rubber cap |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
