Каталог запасных частей к технике: SDLG L953N. Hydraulic control system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
33
33
33
33
34
34
34
34
34
34
35
35
35
36
36
36
36
36
36
36
36
36
36
37
38
39
39
39
39
39
40
41
42
43
44
45
45
45
46
47
48
49
50
50
51
52
53
53
53
54
55
56
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71

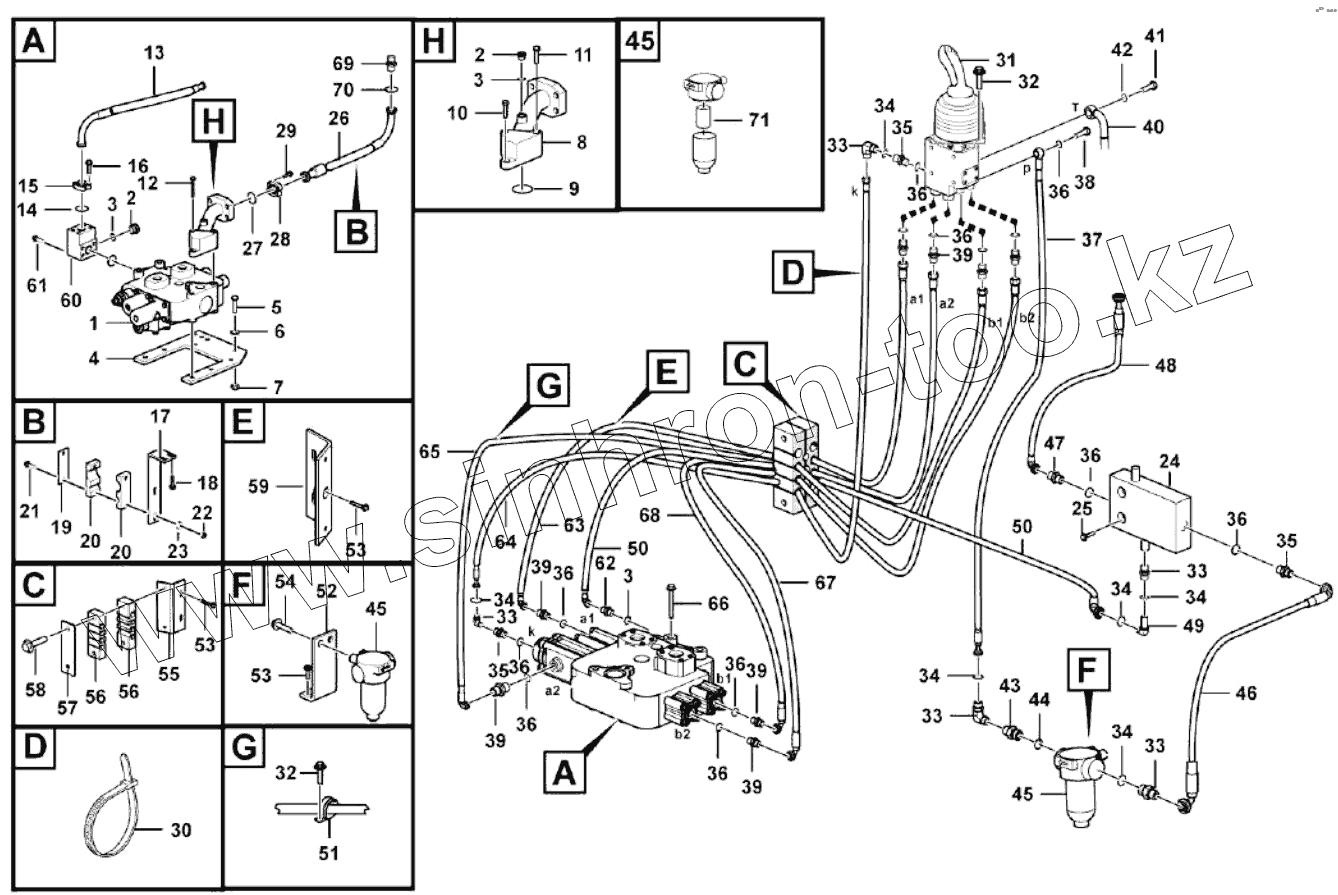

Позиция на иллюстрации Заводской номер детали Название детали
1 4120002278 Control valve
2 4041000774 PLUG
3 4041000767 O-RING
4 29120016981 Anchor plate
5 4011000477 BOLT
6 4015000168 WASHER
7 4013000011 NUT
8 29120009161 RENTURN TUBE OF MULTIPLE UNIT VALVE
9 4030000031 O-RING
10 4011000056 BOLT
11 4011000058 BOLT
12 4011000230 BOLT GB16674-M10x65EpZn-8.8
13 29120029001 Hose assembly
14 4030000029 O-RING
15 4041000056 FLANGE
16 4011000475 BOLT
17 29120009121 SHELF
18 4011000455 BOLT
19 29120009091 PRESS PLATE
20 29120009101 RUBBER PLATE
21 4011000053 BOLT
22 4013000007 NUT
23 4015000162 Washer
24 4120005063 Valve
25 4011000473 BOLT
26 29120015332 Hose assembly
27 4030000130 O-RING
28 4041000011 FLANGE
29 4011000479 BOLT
30 4190000020 CLIP
31 4120005030 Control lever
32 4011000461 BOLT
33 4041001023 JOINT
34 4030000240 O-RING
35 29120007651 JOINT
36 29120014931 WASHER
37 29120017131 Hose assembly
38 4011000344 BOLT
39 29120015401 FITTING
40 29120017061 Hose assembly
41 4011000366 BOLT
42 29120015221 WASHER
43 29120015081 JOINT
44 4030000276 O-RING
45 4120001954 STRAINER
46 4041000811 Hose
47 29120007661 Nipple
48 4041000522 Hose
49 4041001521 Nipple
50 4041002012 Hose
51 29120007671 CLAMP
52 29120016991 Anchor plate
53 4011000137 BOLT
54 4011000447 BOLT
55 29120017001 Bracket
56 29120016741 CLAMP
57 29120016351 MOUNTED PLATE
58 4011000493 BOLT
59 29120017741 Anchor plate
60 29120019061 Valve block
61 4011000136 BOLT GB16674-M10x85EpZn-8.8
62 4041000604 JOINT
63 29120017301 Hose assembly
64 29120017341 Hose assembly
65 4041002347 Hose assembly
66 4011000055 BOLT
67 4041002348 Hose assembly
68 29120017321 Hose assembly
69 4041001063 CONNECTOR LGB143-01810
70 4030000490 O-RING
71 4120001954001 Filter insert
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
