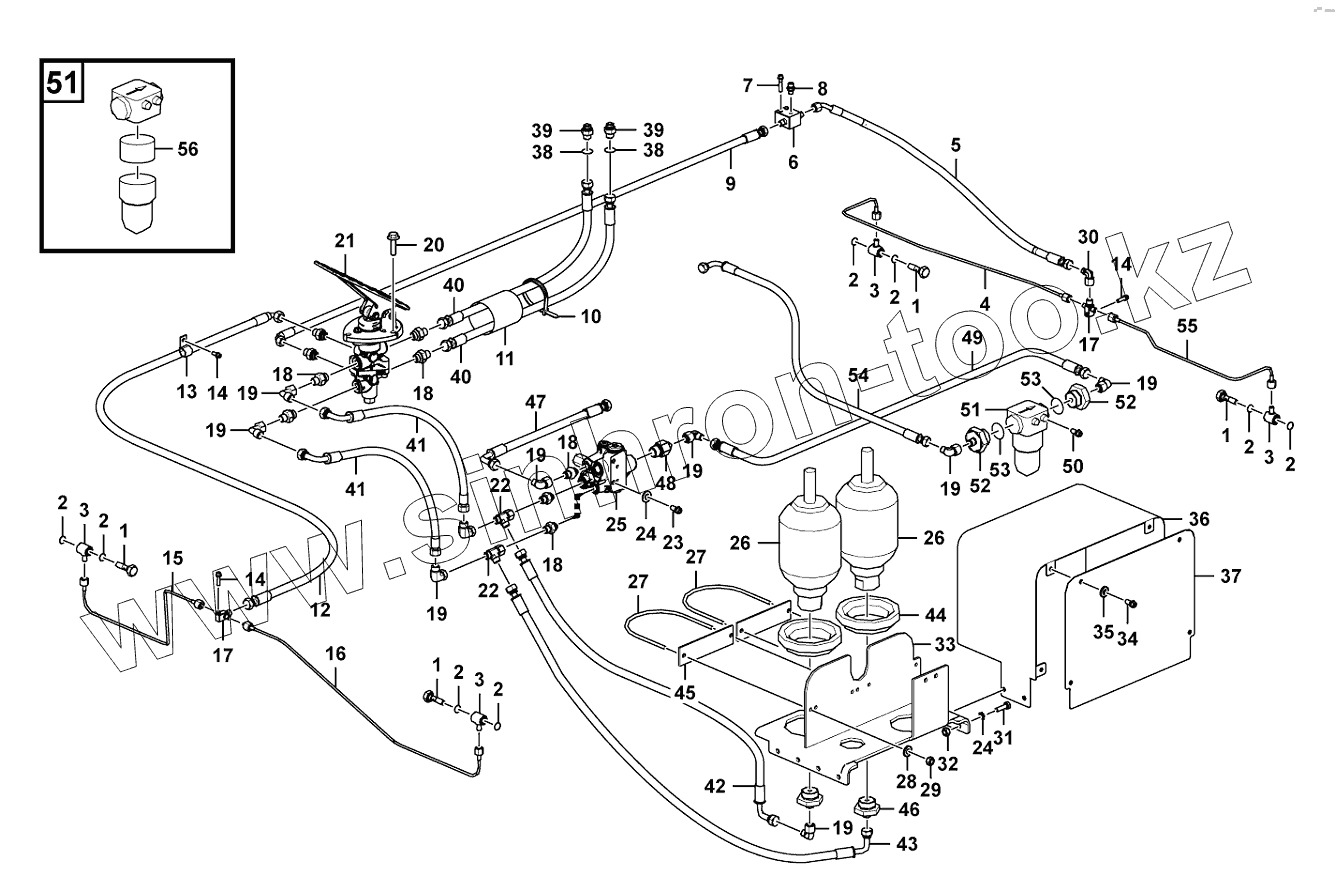

Каталог запасных частей к технике: SDLG L948F. Service break assembly
1
1
1
1
2
2
2
2
2
2
2
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
14
14
15
16
17
17
18
18
18
18
19
19
19
19
19
19
19
19
20
21
22
22
23
24
24
25
26
26
27
27
28
29
30
31
32
33
34
35
36
37
38
38
39
39
40
40
41
41
42
43
44
45
46
47
48
49
50
51
51
52
52
53
53
54
55
56
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29220001251 | CONNECTOR | |
| 2 | 4030000552 | O-Ring | |
| 3 | 29220001261 | CONNECTOR OF BRAKE | |
| 4 | 29220019761 | Brake pipe | |
| 5 | 4041001835 | Hose assembly | |
| 6 | 29220009221 | Block | |
| 7 | 4011001305 | Screw | |
| 8 | 4120004340 | Switch | |
| 9 | 29220013961 | Hose assembly | |
| 10 | 4190000020 | CLIP | |
| 11 | 29010035891 | Canvas cover | |
| 12 | 29220016251 | Hose assembly | |
| 13 | 26030001911 | Hose clamp | |
| 14 | 4011001295 | Screw | |
| 15 | 29220016701 | Brake pipe | |
| 16 | 29220016681 | Brake pipe | |
| 17 | 29220010161 | Three-way nipple | |
| 18 | 4190000149 | Nipple | |
| 19 | 4190000141 | Nipple | |
| 20 | 4011001301 | Screw | |
| 21 | 4120006377 | Brake valve | |
| 22 | 4190000143 | Three-way nipple | |
| 23 | 29220018821 | Screw | |
| 24 | 4015000433 | Washer | |
| 25 | 4120002767 | Check valve | |
| 26 | 4120005111 | Accumulator | |
| 27 | 29220010301 | U-bolt | |
| 28 | 4015000430 | Washer | |
| 29 | 4013000384 | Nut | |
| 30 | 4190000176 | Nipple | |
| 31 | 4011001249 | Screw | |
| 32 | 4013000370 | Nut | |
| 33 | 29220014001 | Bracket | |
| 34 | 4011001314 | Screw | |
| 35 | 4015000425 | Washer | |
| 36 | 29220013251 | Plate | |
| 37 | 29220013271 | Plate | |
| 38 | 4041000768 | O-RING LGB168-11524 | |
| 39 | 4041000766 | Nipple | |
| 40 | 4041002249 | Hose assembly | |
| 41 | 4041002250 | Hose assembly | |
| 42 | 4041001837 | Hose assembly | |
| 43 | 4041001836 | Hose assembly | |
| 44 | 29220010311 | Rubber sleeve | |
| 45 | 28180003171 | Rubber mat | |
| 46 | 29220010271 | Nipple | |
| 47 | 4041000650 | PIPE LGB124-005113 | |
| 48 | 29220017621 | Nipple | |
| 49 | 4041002023 | Hose assembly | |
| 50 | 4011001294 | Screw | |
| 51 | 4120004417 | Hydraulic fluid filter | |
| 52 | 29220012581 | Nipple | |
| 53 | 4030000894 | O-ring | |
| 54 | 4041001829 | Hose | |
| 55 | 29220019781 | Brake pipe | |
| 56 | 4120004417001 | Filter insert | |
| 57 | 4120004417001 | Filter insert |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
