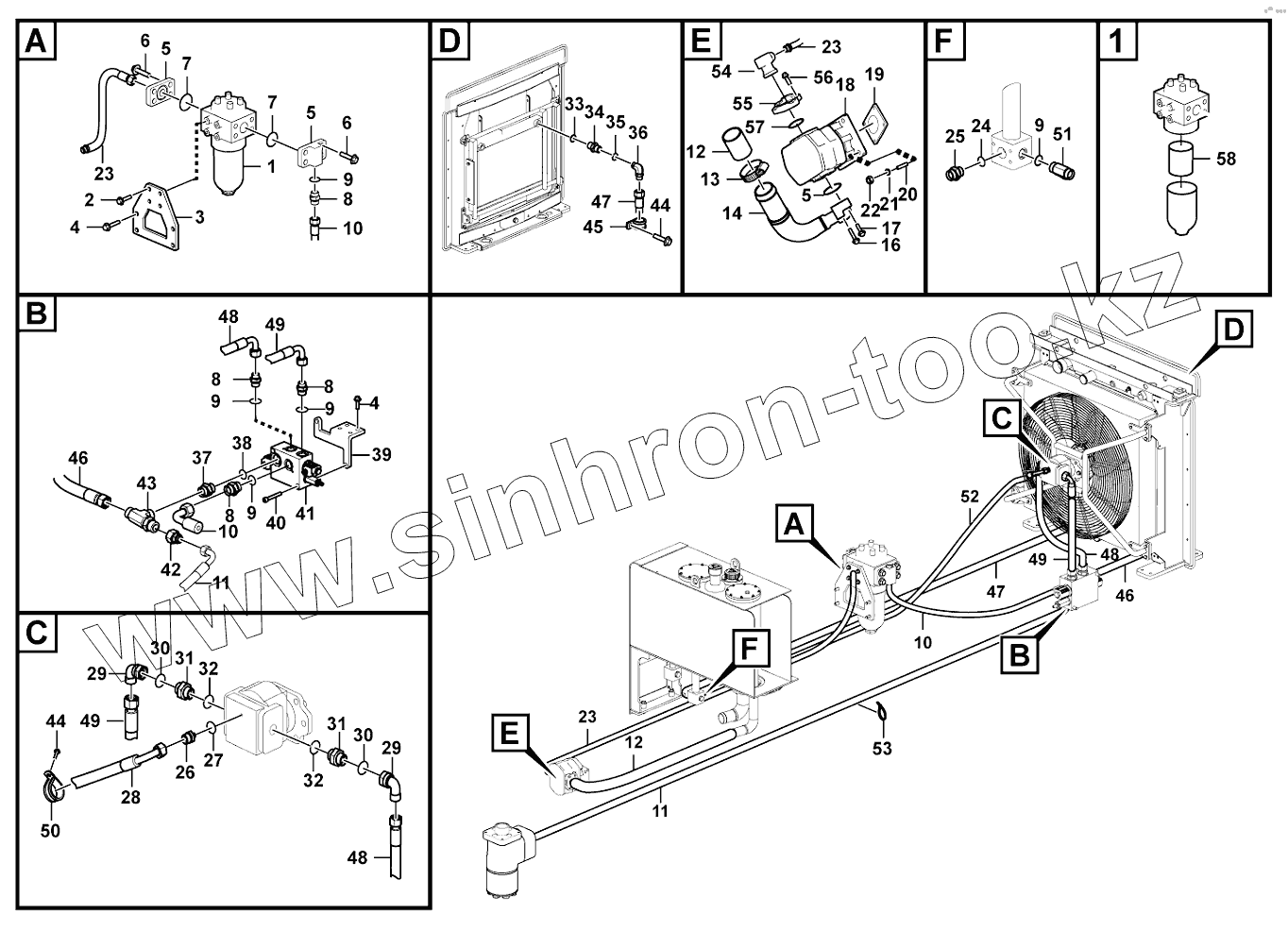

Каталог запасных частей к технике: SDLG L948F. Fan hydraulic motor assembly
1
2
3
4
4
5
5
5
6
6
7
7
8
8
8
8
9
9
9
9
9
10
10
10
11
11
12
12
13
14
16
17
18
19
20
21
22
23
23
23
24
25
26
27
28
29
29
30
30
31
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
44
45
46
46
47
47
48
48
48
49
49
49
50
51
52
53
54
55
56
57
58
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120004418 | Oil filter | |
| 2 | 4011001432 | Bolt | |
| 3 | 29030021611 | Bracket | |
| 4 | 4011001299 | Screw | |
| 5 | 29030022741 | Block | |
| 6 | 4011001274 | Screw | |
| 7 | 4030000130 | O-RING | |
| 8 | 4041000796 | CONNECTOR LGB120-02628 | |
| 9 | 4041000779 | O-RING | |
| 10 | 4041002394 | Hose assembly | |
| 11 | 4120005467 | Hose | |
| 12 | 29030028181 | Hose assembly | |
| 13 | 4017000018 | CLAMP | |
| 14 | 29110011151 | Pipe | |
| 15 | 4030000029 | O-RING | |
| 16 | 4011001298 | Screw | |
| 17 | 4011001288 | Screw | |
| 18 | 4120005967 | Gear pump | |
| 19 | 29110007541 | SEAL SPACER OF PUMP | |
| 20 | 4012000082 | Stud | |
| 21 | 4015000428 | Washer | |
| 22 | 4013000368 | Nut | |
| 23 | 4041002434 | Hose assembly | |
| 24 | 4041000143 | STAIGHT JOINT LGB120-02222 | |
| 25 | 4041001265 | O-ring | |
| 26 | 29030014251 | Nipple | |
| 27 | 4120003299 | O-ring | |
| 28 | 4190000139 | Nipple | |
| 29 | 4041001006 | CONNECTOR | |
| 30 | 4030000501 | O-RING | |
| 31 | 29120012681 | Nipple | |
| 32 | 4030000090 | 0-RING 28.0x2.65G | |
| 33 | 4030000211 | O-RING GB3452.1-30.0-2.65G | |
| 34 | 4041001486 | Nipple | |
| 35 | 4030000504 | O-RING GB3452.1-25.8x1.80G | |
| 36 | 4041001211 | Nipple | |
| 37 | 4041000577 | STAIGHT JOINT LGB120-03633 | |
| 38 | 4041001458 | O-ring | |
| 39 | 29030022751 | Bracket | |
| 40 | 4014000526 | Screw | |
| 41 | 4120005302 | Valve | |
| 42 | 29030022721 | Nipple | |
| 43 | 29030022971 | Three-way nipple | |
| 44 | 4011001297 | Screw | |
| 45 | 29030010811 | Clamp | |
| 46 | 4041002400 | Hose assembly | |
| 47 | 4041002353 | Hose assembly | |
| 48 | 4041002395 | Hose assembly | |
| 49 | 4041002396 | Hose assembly | |
| 50 | 26370001941 | Clamp | |
| 51 | 4041001272 | Nipple | |
| 52 | 4041001820 | Hose | |
| 53 | 4190000020 | CLIP | |
| 54 | 29030023101 | Nipple | |
| 55 | 4041000026 | FLANGE | |
| 56 | 4011000475 | BOLT | |
| 57 | 4030000026 | O-RING | |
| 58 | 4120004418001 | Filter insert |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
