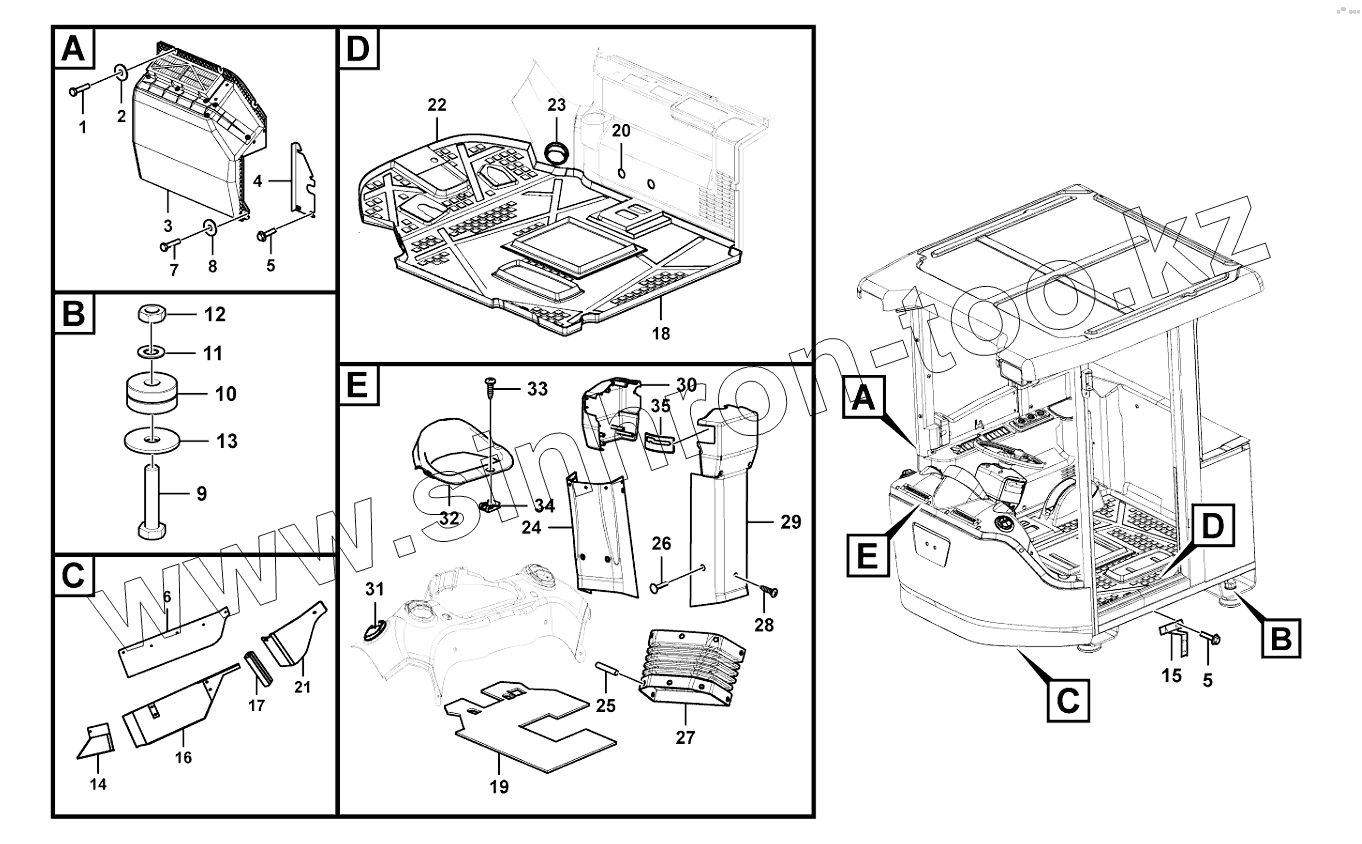

Каталог запасных частей к технике: SDLG L948F. Cab accessory
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4011001285 | Screw | |
| 2 | 4015000437 | Washer | |
| 3 | 29350010471 | Ventilation unit | |
| 4 | 29310016951 | Spacer plate | |
| 5 | 4011001296 | Screw | |
| 6 | 29310023501 | Plate | |
| 7 | 4011001247 | Screw | |
| 8 | 4015000425 | Washer | |
| 9 | 4011001427 | Screw | |
| 10 | 4110000460 | SHOCK ABSORBER CBB95-2 | |
| 11 | 4015000434 | Washer | |
| 12 | 4013000405 | Nut | |
| 13 | 29310023371 | Washer | |
| 14 | 29310024521 | Plate | |
| 15 | 29310018921 | Bracket | |
| 16 | 29310020761 | Plate | |
| 17 | 29290009451 | RUBBER | |
| 18 | 29310024481 | Rear floor | |
| 19 | 29310021881 | Film | |
| 20 | 29310018251 | Rubber cap | |
| 21 | 29310024491 | Plate | |
| 22 | 29310016921 | Floor mat | |
| 23 | 29290012861 | Air outlet | |
| 24 | 29310019001 | Protecting cover | |
| 25 | 29310020381 | Plastic rivet | |
| 26 | 29290014041 | Grommet | |
| 27 | 29310018991 | Rubber sleeve | |
| 28 | 4014000535 | Screw | |
| 29 | 29310018981 | Protecting cover | |
| 30 | 29310016411 | Protecting cover | |
| 31 | 29290012851 | Air outlet | |
| 32 | 29290012561 | Protecting cover | |
| 33 | 4014000522 | Screw | |
| 34 | 26290004591 | Nut | |
| 35 | 29310019361 | Protecting cover |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
