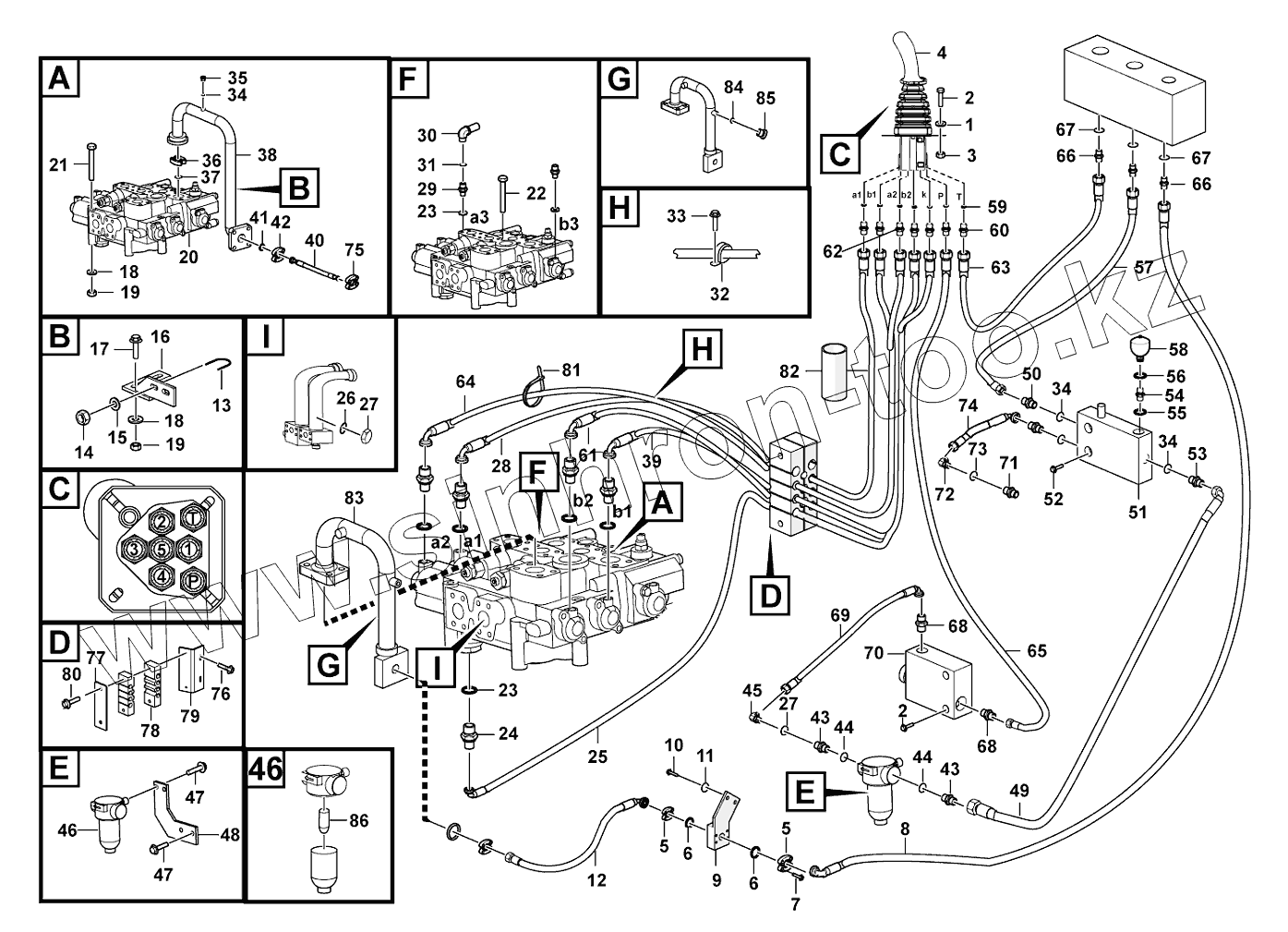

Каталог запасных частей к технике: SDLG L948. Hydraulic control assembly
1
2
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
21
22
23
23
24
25
26
27
27
28
29
30
31
32
33
34
34
34
35
36
37
38
39
40
41
42
43
43
44
44
45
46
46
47
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
66
67
67
68
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4015000437 | Washer | |
| 2 | 4011001284 | Screw | |
| 3 | 4013000372 | Nut | |
| 4 | 4120002935 | Control valve | |
| 5 | 4041000056 | FLANGE | |
| 6 | 4030000029 | O-RING | |
| 7 | 4011001300 | Screw | |
| 8 | 4041002452 | Hose assembly | |
| 9 | 29120029061 | Block | |
| 10 | 4011001241 | Screw | |
| 11 | 4015000427 | Washer | |
| 12 | 4041000205 | Hose | |
| 13 | 4041000958 | U-BOLT | |
| 14 | 4013000370 | Nut | |
| 15 | 4015000433 | Washer | |
| 16 | 29120011391 | STEADY REST | |
| 17 | 4011001510 | Screw | |
| 18 | 4015000428 | Washer | |
| 19 | 4013000368 | Nut | |
| 20 | 4030000182 | CONTROL VALVE D32A-18 | |
| 21 | 4011001506 | Screw | |
| 22 | 4011001329 | Screw | |
| 23 | 29120014931 | WASHER | |
| 24 | 29120007651 | JOINT | |
| 25 | 4041002186 | Hose | |
| 26 | 4041000598 | PLUG | |
| 27 | 4030000240 | O-RING | |
| 28 | 4041002247 | Hose assembly | |
| 29 | 29120015401 | FITTING | |
| 30 | 4041001047 | CONNECTOR | |
| 31 | 4030000530 | O-RING | |
| 32 | 29120007671 | CLAMP | |
| 33 | 4011001297 | Screw | |
| 34 | 4041000767 | O-RING | |
| 35 | 4041000774 | PLUG | |
| 36 | 4041000010 | FLANGE | |
| 37 | 4030000130 | O-RING | |
| 38 | 29120021941 | Pipe | |
| 39 | 4041002248 | Hose assembly | |
| 40 | 29120025621 | Hose | |
| 41 | 4030000026 | O-RING | |
| 42 | 4041000043 | FLANGE | |
| 43 | 29120015081 | JOINT | |
| 44 | 4030000276 | O-RING | |
| 45 | 4041001023 | JOINT | |
| 46 | 4120001954 | STRAINER | |
| 47 | 4011001294 | Screw | |
| 48 | 29120016021 | PLATE | |
| 49 | 4041002063 | Hose assembly | |
| 50 | 4041000150 | STAIGHT JOINT | |
| 51 | 4120002829 | Valve | |
| 52 | 4011001340 | Screw | |
| 53 | 4041000604 | JOINT | |
| 54 | 29120031311 | Nipple | |
| 55 | 4030000097 | O-ring | |
| 56 | 4041000783 | O-RING | |
| 57 | 4041002514 | Hose assembly | |
| 58 | 4120002830 | Accumulator | |
| 59 | 29120013381 | Washer | |
| 60 | 29120010341 | Nipple | |
| 61 | 4041002181 | Hose | |
| 62 | 29120021751 | Nipple | |
| 63 | 29120026281 | Hose assembly | |
| 64 | 4041002180 | Hose | |
| 65 | 4041002256 | Hose assembly | |
| 66 | 4041000766 | Nipple | |
| 67 | 4041000768 | O-RING LGB168-11524 | |
| 68 | 4120004696 | Nipple | |
| 69 | 4041002251 | Hose assembly | |
| 70 | 4120005540 | Control valve | |
| 71 | 29220017621 | Nipple | |
| 72 | 4041001063 | CONNECTOR LGB143-01810 | |
| 73 | 4030000490 | O-RING | |
| 74 | 4041000639 | PIPE LGB125-005088 | |
| 75 | 4041000027 | FLANGE | |
| 76 | 4011001240 | Bolt | |
| 77 | 29120016351 | MOUNTED PLATE | |
| 78 | 29120021551 | Clamp | |
| 79 | 29120016951 | MOUNTED PLATE | |
| 80 | 4011001303 | Screw | |
| 81 | 4190000020 | CLIP | |
| 82 | 26370002901 | Canvas cover | |
| 83 | 29120028111 | Pipe | |
| 84 | 4030000241 | O-RING | |
| 85 | 4041000680 | PLUGGING | |
| 86 | 4120001954001 | Filter insert |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
