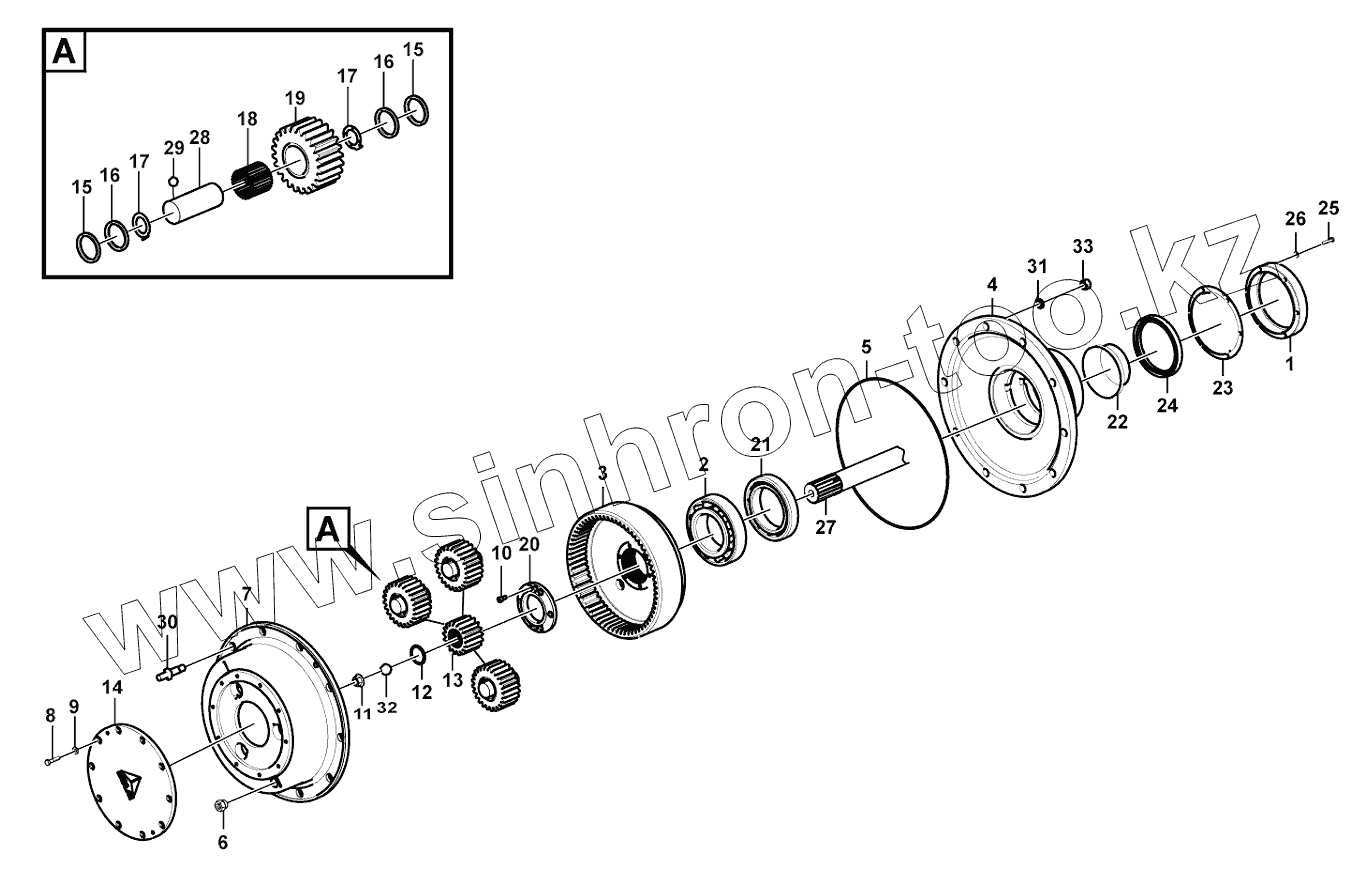

Каталог запасных частей к технике: SDLG L948. Hub reduction
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29070001231 | COVER OF OIL SAL | |
| 2 | 4021000037 | BEARING | |
| 3 | 29070000481 | AXLE RING GEAR | |
| 4 | 29070001241 | HUB WHEAL | |
| 5 | 4041000020 | O-RING | |
| 6 | 29070021441 | Plug | |
| 7 | 29070007611 | PLANET PINION CARRIER | |
| 8 | 4011001249 | Screw | |
| 9 | 4015000025 | Washer | |
| 10 | 4014000016 | SCREW | |
| 11 | 29070009161 | LOCK BLOCK | |
| 12 | 4015000022 | RING SNAP | |
| 13 | 29070000511 | GEAR-SUN | |
| 14 | 29070007621 | COVER | |
| 15 | 29070012351 | Shim | |
| 16 | 29070012361 | Shim | |
| 17 | 29070000551 | RETAINER RING | |
| 18 | 4090000004 | ROLLER | |
| 19 | 29070000561 | PLANET GEAR | |
| 20 | 29070000571 | ROUND NUT | |
| 21 | 4021000033 | BEARING GB297-32024 | |
| 22 | 29070001261 | ISOLATED BUSHING | |
| 23 | 29070001271 | SPACER | |
| 24 | 4030000047 | OIL SEAL HG4-692-PD150x180x16 | |
| 25 | 4011001321 | Screw | |
| 26 | 4015000036 | WASHER | |
| 27 | 29070009281 | Shaft half | |
| 28 | 29070000611 | PLANET PINION SHAFT | |
| 29 | 4090000008 | STEEL BALL | |
| 30 | 29070021471 | Screw | |
| 31 | 4015000030 | WASHER | |
| 32 | 4090000006 | STEEL BALL | |
| 33 | 4013000382 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
