Каталог запасных частей к технике: SDLG L938F. Lifting cylinder system
1
2
2
2
2
2
2
3
3
3
3
4
4
4
4
5
6
6
7
8
8
9
10
11
12
12
13
14
15
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
28
28
29
29
30
30
31
31
32
32

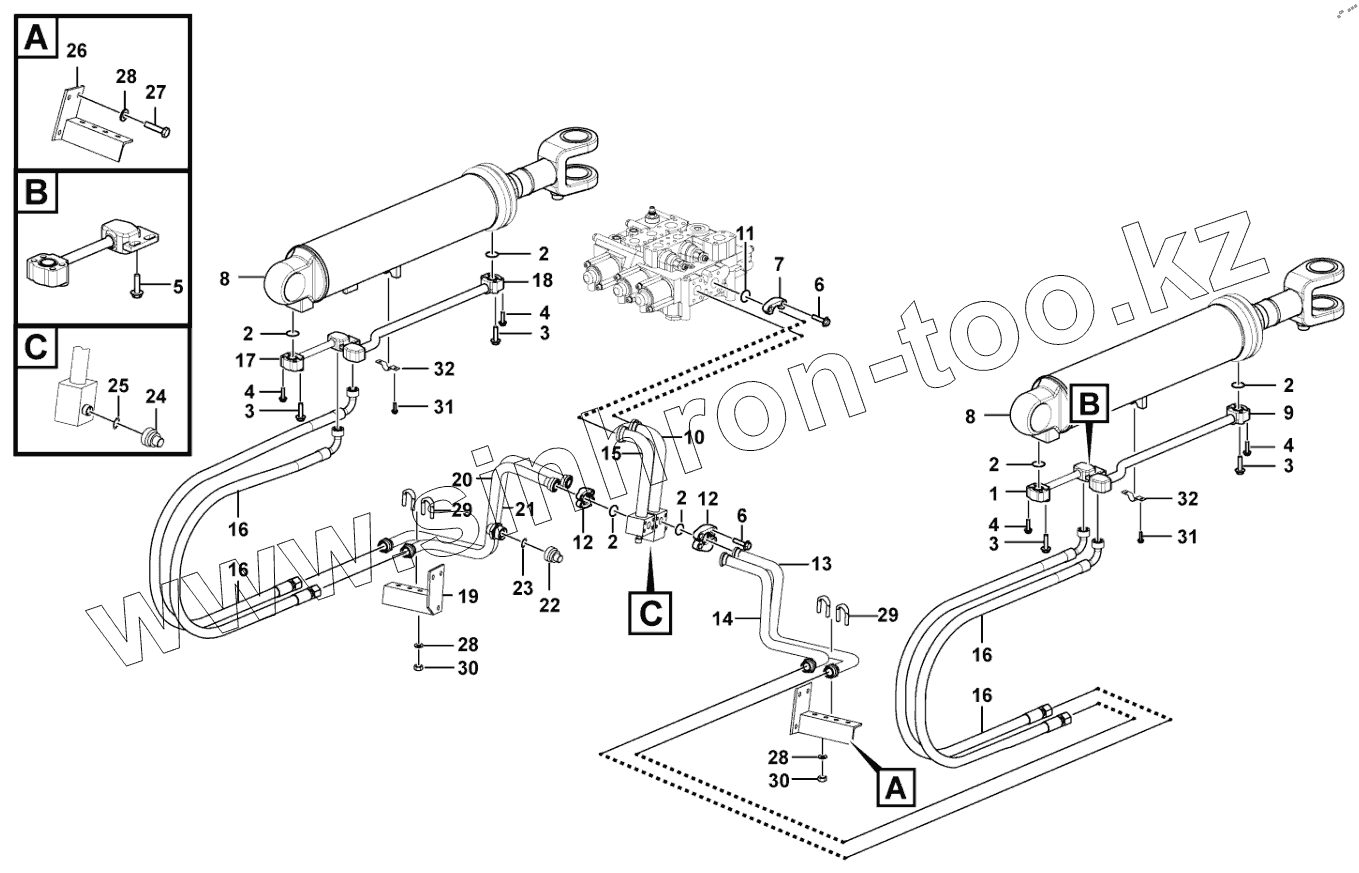

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29130004121 | BIG CHAMBER STEEL TUBE OF RIGHT LIFTING CYLINDER | |
| 2 | 4030000279 | O-RING | |
| 3 | 4011001288 | Screw | |
| 4 | 4011001381 | Bolt | |
| 5 | 4011001294 | Screw | |
| 6 | 4011001300 | Screw | |
| 7 | 4041000027 | FLANGE | |
| 8 | 4120000867 | LIFT CYLINDER | |
| 9 | 29130004131 | OIL TUBE OF SMALL CHAMBER RIGHT LIFTING CYLINDER | |
| 10 | 29130016721 | Pipe | |
| 11 | 4030000029 | O-RING | |
| 12 | 4041000137 | FLANGE | |
| 13 | 29130008311 | FROM VALVE TO LEFT LIFTING CYLINDER SMALL CHAMBER TUBE | |
| 14 | 29130008321 | FROM VALVE TO LEFT LIFTING CYLINDER BIG CHAMBER TUBE | |
| 15 | 29130008351 | BIG CHAMBER THREE-WAY TUBE OF LIFTING CYLINDER | |
| 16 | 29130013331 | Hose assembly | |
| 17 | 29130004071 | BIG CHAMBER TUBE OF LEFT LIFTING CYLINDER | |
| 18 | 29130004021 | OIL TUBE OF SMALL CHAMBER LEFT LIFTING CYLINDER | |
| 19 | 29130004111 | STEADY REST B | |
| 20 | 29130016761 | Pipe | |
| 21 | 29130008341 | FROM VALVE TO RIGHT LIFTING CYLINDER SMALL CHAMBER TUBE | |
| 22 | 4041000774 | PLUG | |
| 23 | 4041000767 | O-RING | |
| 24 | 4041000680 | PLUGGING | |
| 25 | 4030000241 | O-RING | |
| 26 | 29130004091 | STEADY REST A | |
| 27 | 4011001268 | Screw | |
| 28 | 4015000426 | Washer | |
| 29 | 4041001415 | U-bolt | |
| 30 | 4013000370 | Nut | |
| 31 | 4011001296 | Screw | |
| 32 | 29130004081 | CLAMP |
