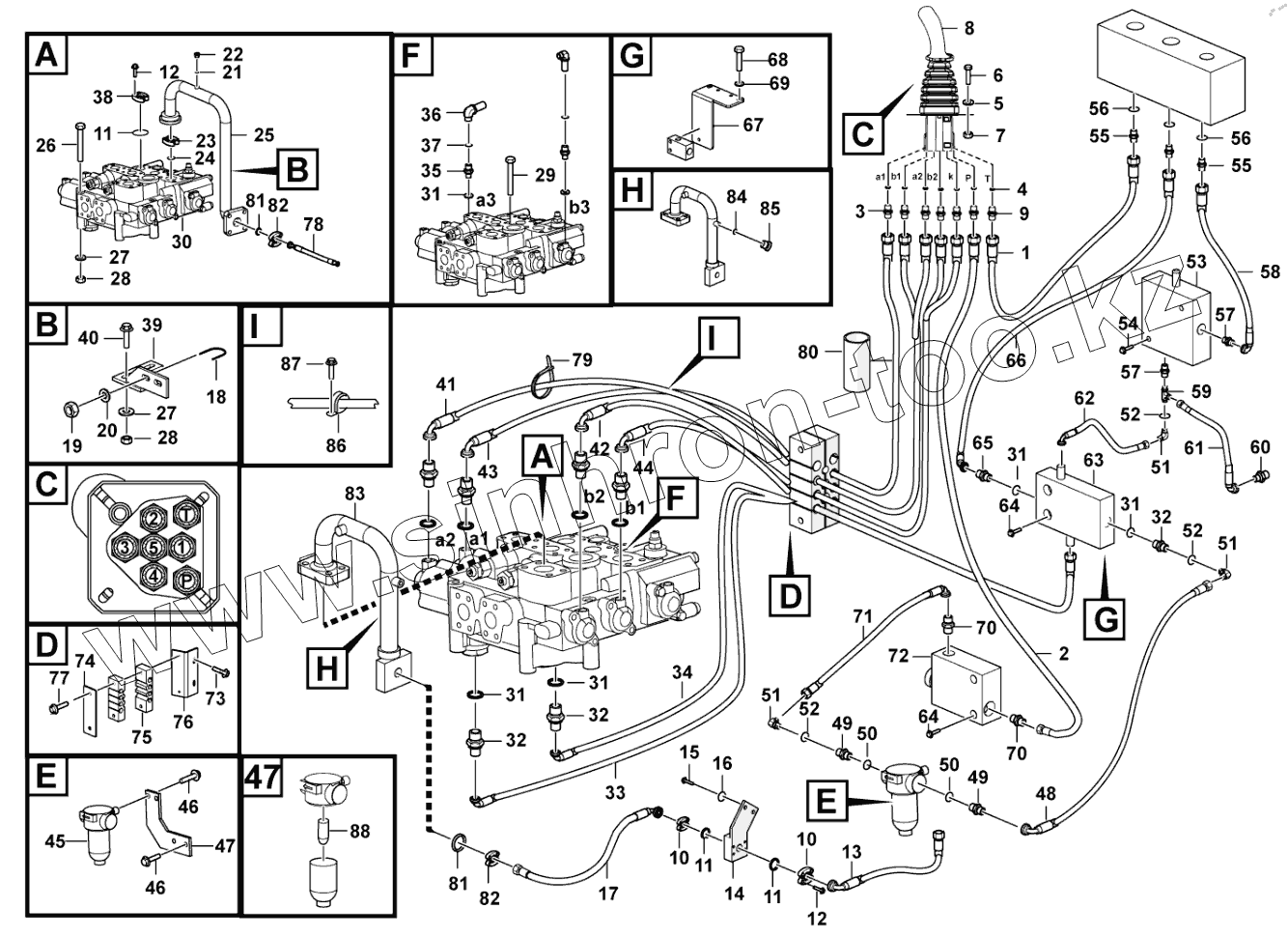

Каталог запасных частей к технике: SDLG L938F. Hydraulic control assembly

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
10
11
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
28
29
30
31
31
31
31
31
32
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
47
48
49
49
50
50
51
51
51
52
52
52
53
54
55
55
56
56
57
57
58
59
60
61
62
63
64
64
65
66
67
68
69
70
70
71
72
73
74
75
76
77
78
79
80
81
81
82
82
83
84
85
86
87
88
Позиция на иллюстрации Заводской номер детали Название детали
1 29120026281 Hose assembly
2 4041002256 Hose assembly
3 29120010341 Nipple
4 29120013381 Washer
5 4015000437 Washer
6 4011001284 Screw
7 4013000372 Nut
8 4120002935 Control valve
9 29120021751 Nipple
10 4041000056 FLANGE
11 4030000029 O-RING
12 4011001300 Screw
13 4041002452 Hose assembly
14 29120029061 Block
15 4011001241 Screw
16 4015000427 Washer
17 4041000688 Hose
18 4041000958 U-BOLT
19 4013000370 Nut
20 4015000433 Washer
21 4041000767 O-RING
22 4041000774 PLUG
23 4041000010 FLANGE
24 4030000130 O-RING
25 29120021941 Pipe
26 4011001330 Screw
27 4015000428 Washer
28 4013000368 Nut
29 4011001329 Screw
30 4120001054 MULTIPLE UNIT
31 29120014931 WASHER
32 29120007651 JOINT
33 4041002140 Hose assembly
34 4041002141 Hose assembly
35 29120015401 FITTING
36 4041001047 CONNECTOR
37 4030000530 O-RING
38 4041000027 FLANGE
39 29120011391 STEADY REST
40 4011001371 Bolt
41 29120016311 PIPE
42 29120016321 PIPE
43 4041000710 HOSE LGB125-004300
44 4041001186 Hose
45 4120001954 STRAINER
46 4011001294 Screw
47 29120016021 PLATE
48 4041000592 PIPE LGB125-004055
49 29120015081 JOINT
50 4030000276 O-RING
51 4041001023 JOINT
52 4030000240 O-RING
53 4120002679 Relief valve
54 4011001315 Screw
55 4041000766 Nipple
56 4041000768 O-RING LGB168-11524
57 4120001901 Nipple
58 4041000151 Hose assembly
59 29120016521 Three-way nipple
60 29220017621 Nipple
61 4041000638 PIPE LGB125-005128
62 4041000814 Hose assembly
63 4120005063 Valve
64 4011001212 Screw
65 26010005081 Nipple
66 4041000505 PIPE LGB125-005138
67 29120021011 Anchor plate
68 4011001247 Screw
69 4015000425 Washer
70 4120004696 Nipple
71 4041002251 Hose assembly
72 4120005540 Control valve
73 4011001240 Bolt
74 29120016351 MOUNTED PLATE
75 29120021551 Clamp
76 29120016951 MOUNTED PLATE
77 4011001303 Screw
78 29120023771 Hose assembly
79 4190000020 CLIP
80 26370002901 Canvas cover
81 4030000026 O-RING
82 4041000043 FLANGE
83 29120028111 Pipe
84 4030000241 O-RING
85 4041000708 BLOCKING
86 29120007671 CLAMP
87 4011001297 Screw
88 4120001954001 Filter insert
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
