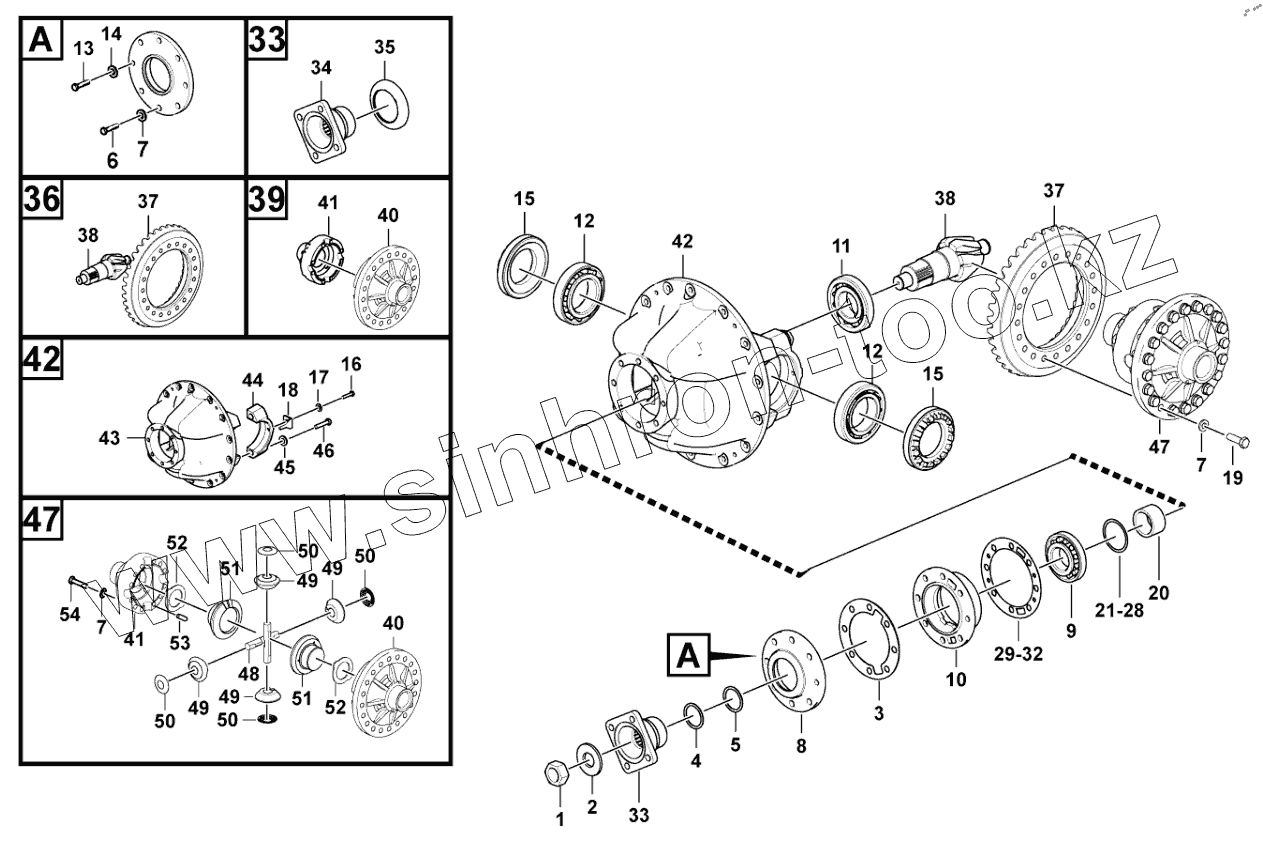

Каталог запасных частей к технике: SDLG L938F. Final drive

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
7
7
8
9
10
11
12
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
37
38
38
39
40
40
41
41
42
42
43
44
45
46
47
47
48
49
49
49
49
50
50
50
50
51
51
52
52
53
54
Позиция на иллюстрации Заводской номер детали Название детали
1 4013000066 NUT
2 3050900007 WASHER
3 3050900172 SHIM
4 4030000048 FRAME OIL SEAL
5 4030000768 Sealing ring
6 4011001318 Screw
7 29090007961 WASHER
8 29070019901 Sealing cover
9 4021000028 BEARING
10 29070019911 Bearing bushing
11 4021000139 Roller bearing
12 4021000105 Ball bearing
13 4011001281 Screw
14 29070015981 Washer
15 29070019941 Adjusting nut
16 4011000597 BOLT
17 29050015481 Washer
18 3050900024 STAY
19 4011000345 Bolt
20 29070019961 Sleeve
21 29070019971 Spacer sleeve
22 29070019981 Spacer sleeve
23 29070019991 Spacer sleeve
24 29070020001 Spacer sleeve
25 29070020011 Spacer sleeve
26 29070020021 Spacer sleeve
27 29070020031 Spacer sleeve
28 29070020041 Spacer sleeve
29 3050900011 ADJUST SHIM
30 29070010611 Shim
31 29070010621 Shim
32 29070010631 Shim
33 29070019891 Flange assembly
34 29070020052 Connecting flange
35 3050900058 Sealing ring
36 29070019951 Crown wheel
37 29070020061 Crown wheel
38 29070020071 Crown wheel
39 29070020102 Differential housing
40 29070020601 Differential housing
41 29070020122 Differential housing
42 29070019922 Centre housing
43 29070020082 Centre housing
44 29070020091 Bearing seat
45 29070019751 Washer 1
46 4011000951 Screw
47 29070019932 Differential housing
48 29070020611 Shaft
49 29070020141 Differential pinion
50 29070020151 Thrust washer
51 29070020161 Differential side gear
52 29070020171 Thrust washer
53 29070000461 PIN
54 4011000964 Screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
